Wall-mounted twin hole mixer - 60 lpm

Ref. 5645T2
Swivelling under spout L. 200mm

Presentation

DESCRIPTION

Wall-mounted twin hole mixer - 60 lpm

Ref. 5645T2

Wall-mounted twin hole mixer with swivelling, tubular under spout Ø 22mm L. 200mm with star-shaped brass flow straightener.
Water-free, guided valve heads with reinforced mechanisms.
Shock-resistant, ergonomic ball levers.
Flow rate 60 lpm at 3 bar achieved within 90°.
Full flow rate 90 lpm at 3 bar.
Spout with smooth interior.
One-piece body and spout made from chrome-plated brass.
M1/2" M3/4" offset connectors supplied with escutcheons.
Suitable for disposal sinks.
30-year warranty.

ADVANTAGES

Flow rate 60 lpm within first 90°

One-piece body and spout in chrome-plated brass

Helps create clear work surfaces

Characteristics

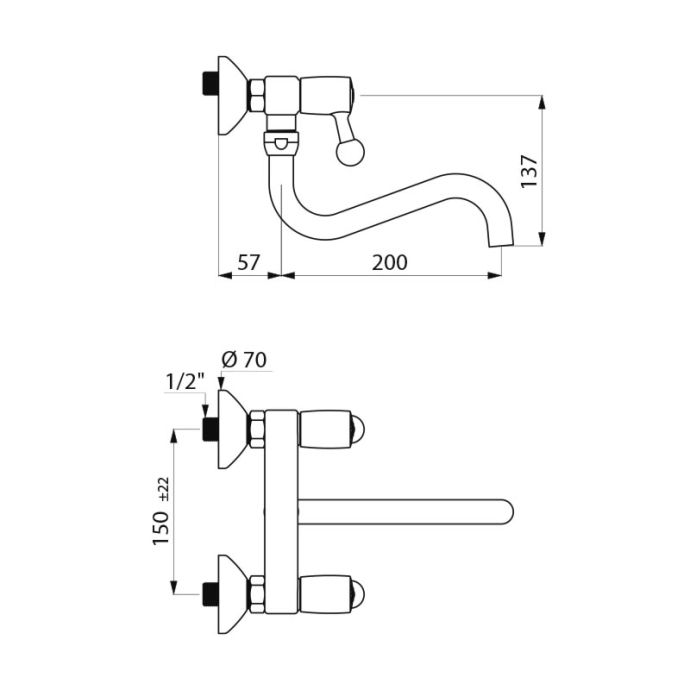

TECHNICAL CHARACTERISTICS

Wall-mounted twin hole mixer - 60 lpm

Ref. 5645T2

Connector	M1/2"
Spout length	200mm
Flow rate	60 lpm
Width to the wall	57mm
Finish	Chrome-plated brass
Certificates
Warranty
Repairability

Downloads

DOWNLOADS

Mélangeur 2 trous mural - 60 l/min

Ref. 5645T2

To download one or several documents linked to this product, please select the type of file you require :

Product file

Specification description

Lo-res JPG image

Hi-res EPS image

Line drawing

Line drawing AutoCAD DWG

BIM files

Installation guide

Certificates

Spare parts

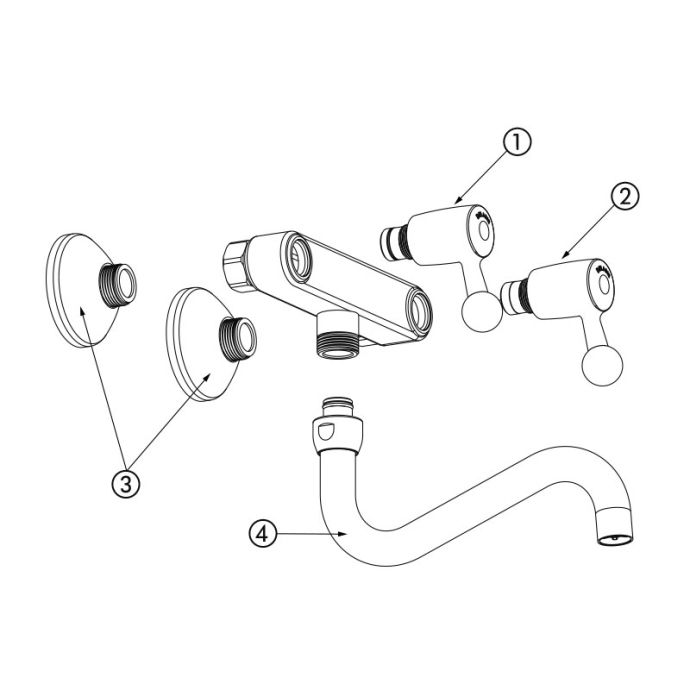

SPARE PARTS

Wall-mounted twin hole mixer - 60 lpm

Ref. 5645T2

1.	P271AA85	Valve head 1/4 left turn
2.	P272AA85	Valve head 1/4 right turn
3.	856127.2P	Offset connector
4.	943200110	Swivelling swan neck tubular spout L. 200mm
