Wall-mounted mechanical sink mixer

Ref. 5445T2S
Wall-mounted mixer with swivelling spout L. 200mm
Wall-mounted mechanical sink mixer

Presentation

DESCRIPTION

Wall-mounted mechanical sink mixer

Ref. 5445T2S
Wall-mounted mechanical sink mixer with swivelling, Ø 22mm tubular under-spout L. 200mm with star-shaped, brass flow straightener.
Spout with smooth interior (reduced bacterial development).
Flow rate 45 lpm at 3 bar.
Chrome-plated metal control knobs with ceramic valve heads.
Supplied with offset standard connectors, M1/2" M3/4".
30-year warranty.

ADVANTAGES

Corps à intérieur lisse

Spout with smooth interior reduces bacteria

Endurance - Fiabilité

Body and spout in chrome-plated brass

Faible espacement au mur - Encombrement limité

Closer to the wall

Characteristics

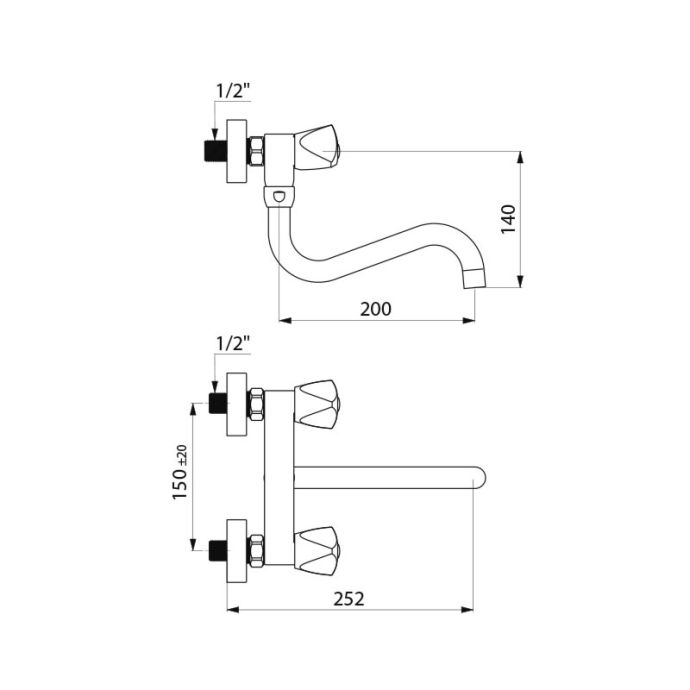

TECHNICAL CHARACTERISTICS

Wall-mounted mechanical sink mixer

Ref. 5445T2S
Connector M1/2"
Depth 252mm
Spout length 200mm
Flow rate 45 lpm
Finish Chrome-plated brass
Certificates ACS Logo DoP Logo PZH Logo WRAS
Warranty 30-Year
Repairability
Wall-mounted mechanical sink mixer
Ref. 5445T2S

Downloads

DOWNLOADS

Wall-mounted mechanical sink mixer

Ref. 5445T2S

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

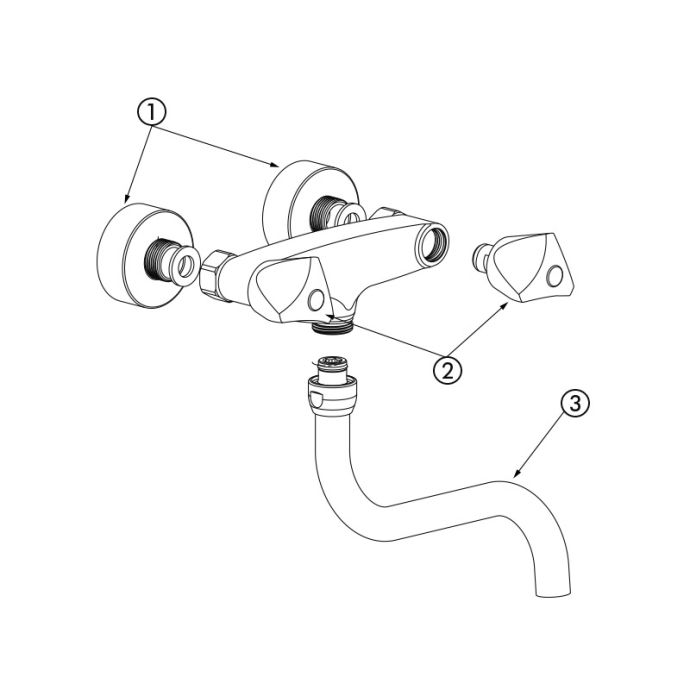

SPARE PARTS

Wall-mounted mechanical sink mixer

Ref. 5445T2S
1. 856794.2P
Offset union
2. P5445
Ceramic head
3. 943200110
Swivelling swan neck tubular spout L. 200mm
