DESCRIPTION

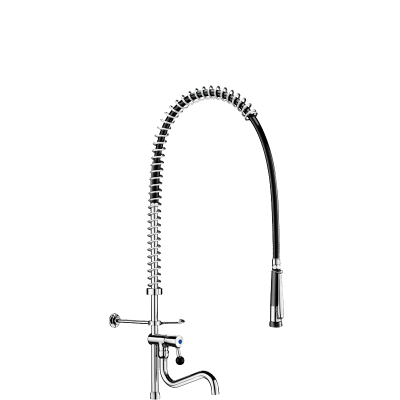

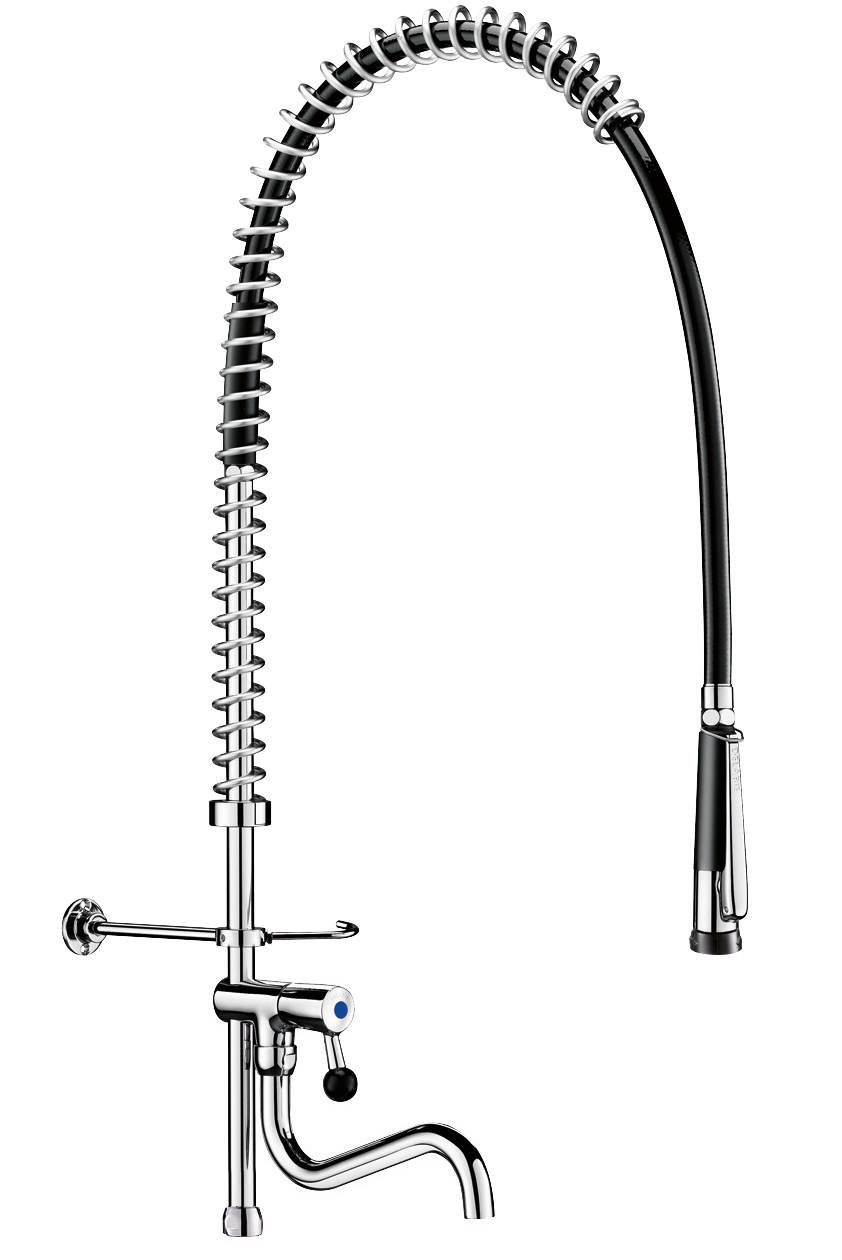

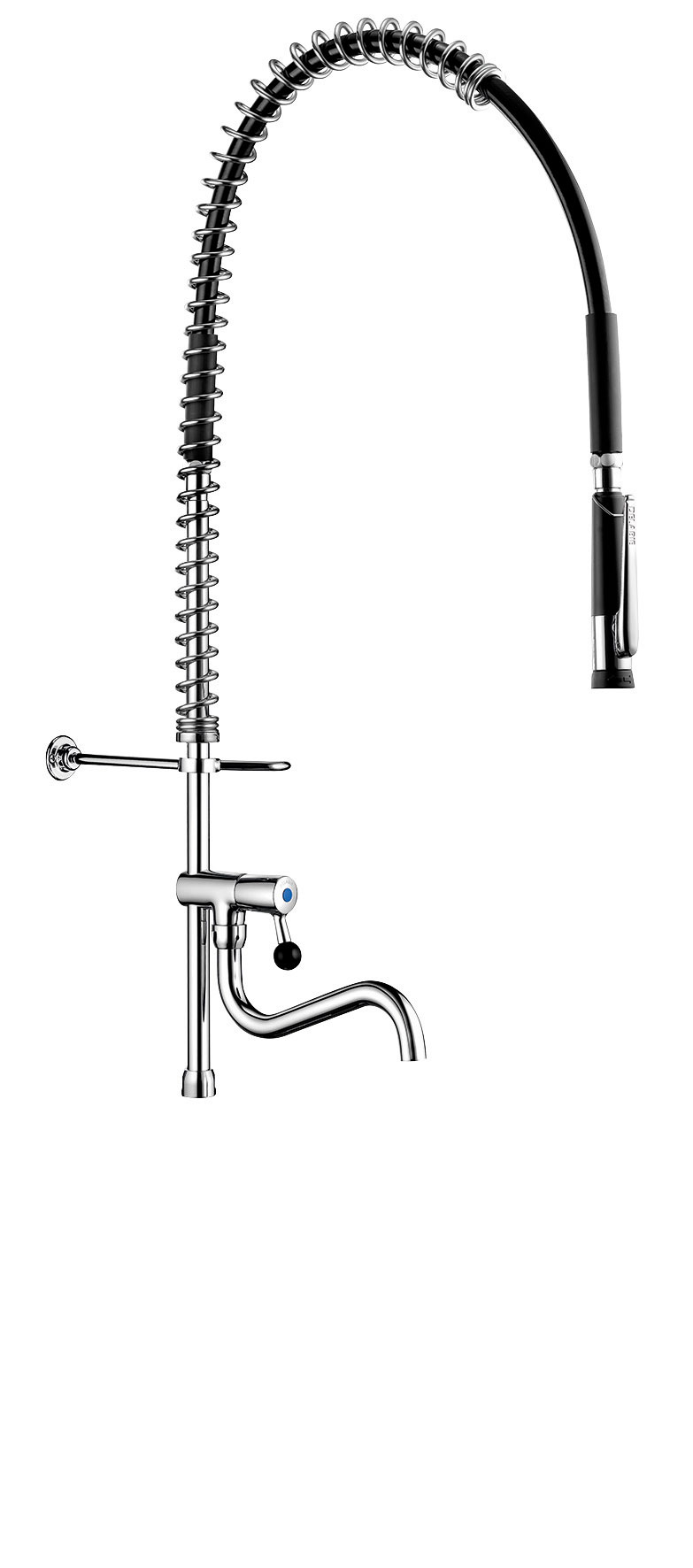

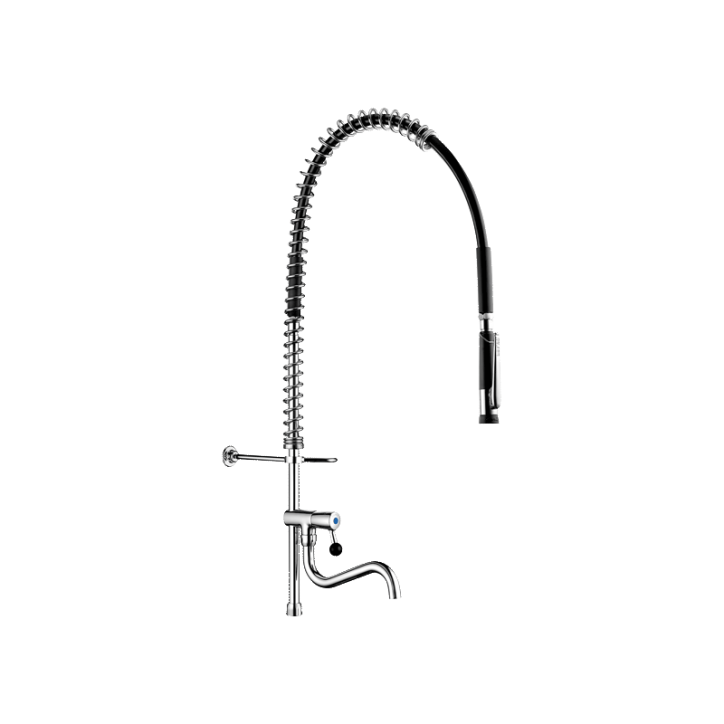

Black pre-rinse set with no valve
Ref. 433622Black pre-rinse set without valve suitable for intensive use in professional kitchens.
Bib tap with swivelling, tubular spout L. 200mm.
- full flow rate achieved within 1/4-turn.
- valve head with reinforced mechanism with ergonomic control.
Black hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433010).
Scale-resistant hand spray with shock-resistant tip.
Black reinforced food-grade flexible hose L. 0.95m.
3/4" short brass column for wall-mounted water control valve.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.
This pre-rinse set, with no water control valve, comprises spare parts for repairing pre-rinse sets.
Bib tap with swivelling, tubular spout L. 200mm.
- full flow rate achieved within 1/4-turn.
- valve head with reinforced mechanism with ergonomic control.
Black hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433010).
Scale-resistant hand spray with shock-resistant tip.
Black reinforced food-grade flexible hose L. 0.95m.
3/4" short brass column for wall-mounted water control valve.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.
This pre-rinse set, with no water control valve, comprises spare parts for repairing pre-rinse sets.
ADVANTAGES
Anti-torsion rotating nut and PVC sheath
Comfort: ergonomic control, swivelling spout
Hygiene: PVC flexible, scale-resistant spray
Increased resistance: high quality flexible

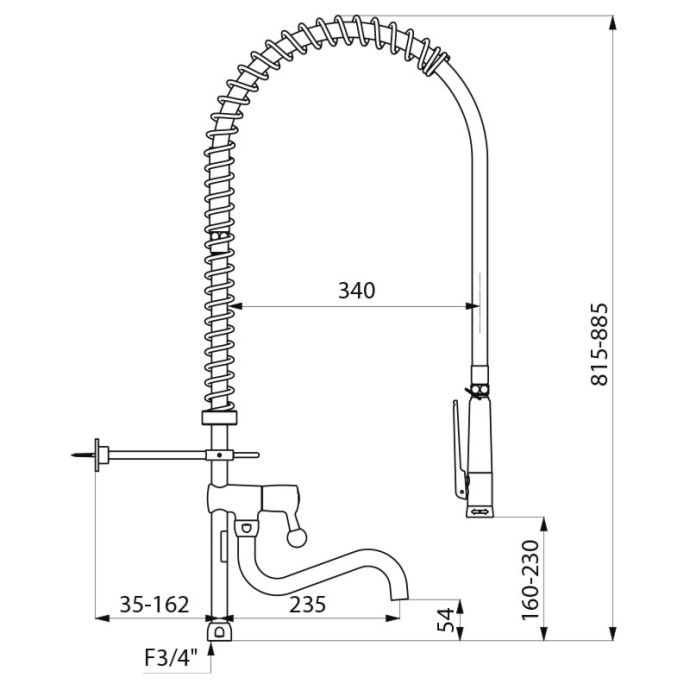

TECHNICAL CHARACTERISTICS
Black pre-rinse set with no valve
Ref. 433622Connector | 3/4" |
Height | 815 - 885mm |
Drop height | 160 - 230mm |
Flow rate | depends on the valve |
Width to the wall | 35 - 162mm |
Finish | Chrome-plated brass |
Certificates | |
Warranty | |
Repairability |
Compatible products
COMPATIBLE PRODUCTS
Black pre-rinse set with no valve
Ref. 4336225634 |
|

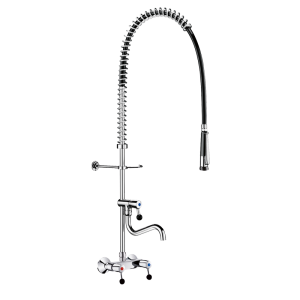

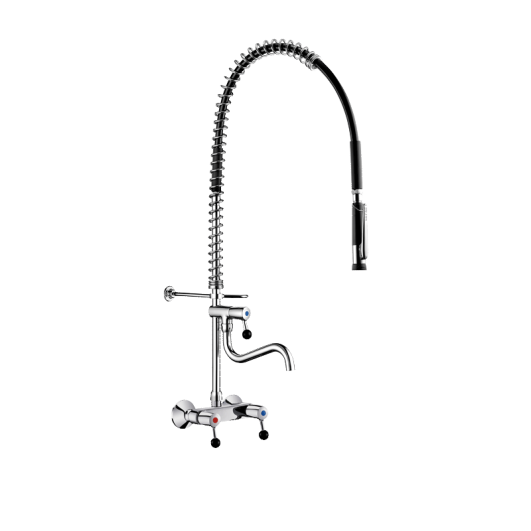

Wall-mounted pre-rinse set with mixer |
Spare parts

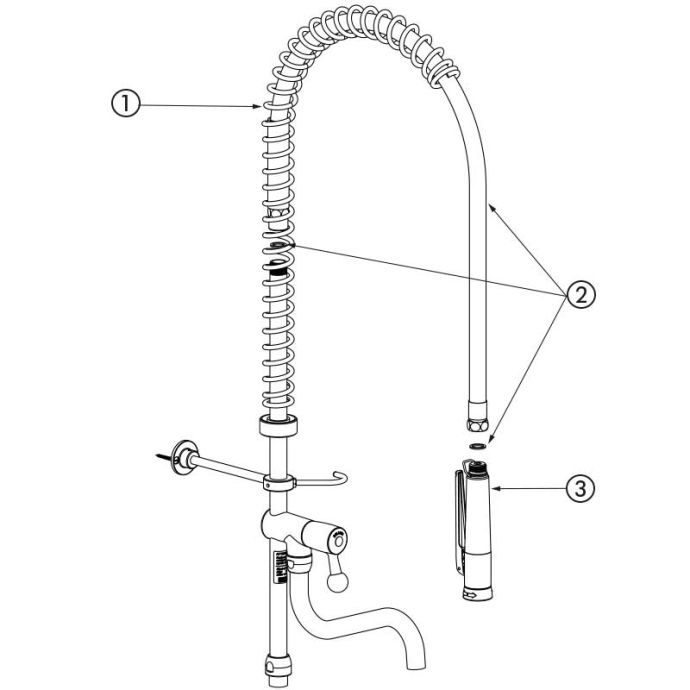

SPARE PARTS
Black pre-rinse set with no valve
Ref. 4336221. | 433038 |
|
Stainless steel spring guide |
2. | 433095CH |
|
Food-grade flexible hose for catering |
3. | 433010 |
|
Black M1/2" hand spray |
4. | 433500 |
|
Pre-rinse short column |
VARIANTS
435722 | Hand spray with scale-resistant nipples - Tall column -With bib tap | ||
---|---|---|---|
435720 | Hand spray with scale-resistant nipples - Tall column -Without bib tap | ||
435622 | Hand spray with scale-resistant nipples - Short column - With bib tap | ||
435620 | Hand spray with scale-resistant nipples - Short column -Without bib tap | ||
433722 | Hand spray with scale-resistant nozzle - Tall column - With bib tap | ||
433720 | Hand spray with scale-resistant nozzle - Tall column - Without bib tap | ||
433620 | Hand spray with scale-resistant nozzle - Short column - Without bib tap |
VARIANTS
435722 | Hand spray with scale-resistant nipples - Tall column -With bib tap | ||
---|---|---|---|
435720 | Hand spray with scale-resistant nipples - Tall column -Without bib tap | ||
435622 | Hand spray with scale-resistant nipples - Short column - With bib tap | ||
435620 | Hand spray with scale-resistant nipples - Short column -Without bib tap | ||
433722 | Hand spray with scale-resistant nozzle - Tall column - With bib tap | ||
433720 | Hand spray with scale-resistant nozzle - Tall column - Without bib tap | ||
433620 | Hand spray with scale-resistant nozzle - Short column - Without bib tap |
