DESCRIPTION

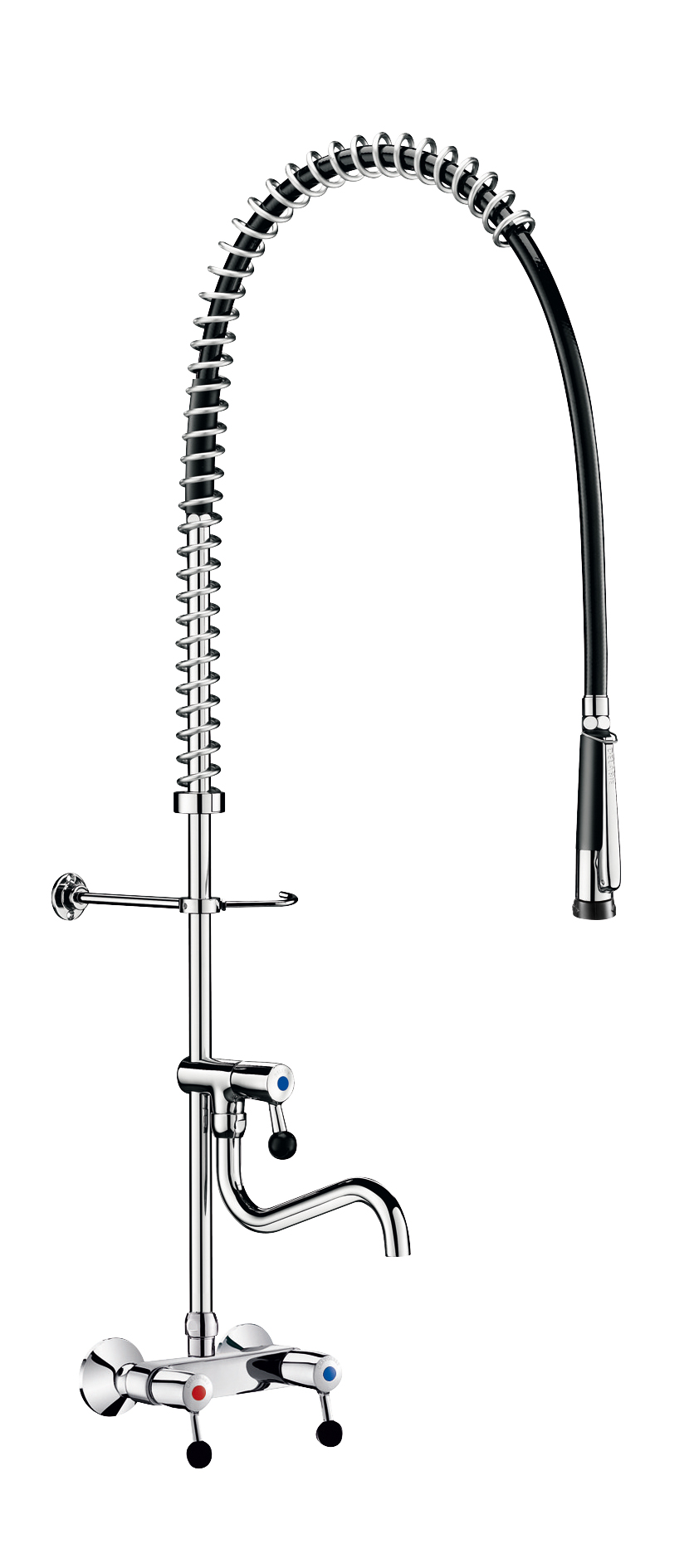

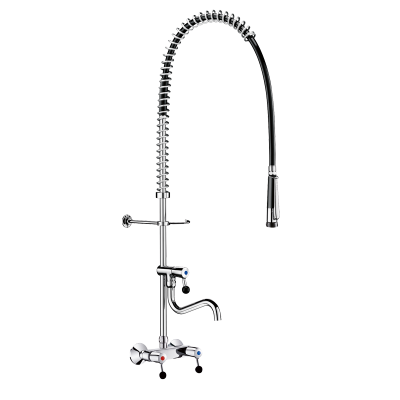

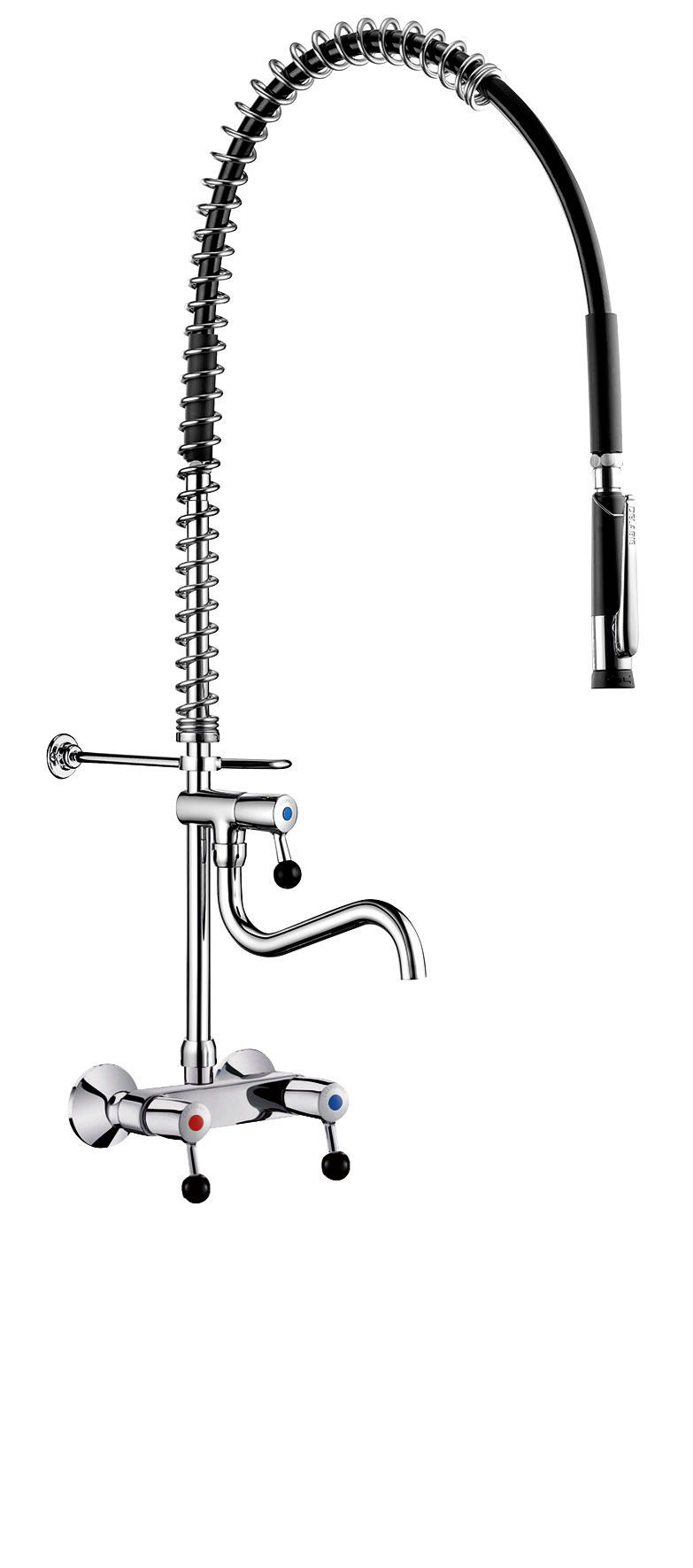

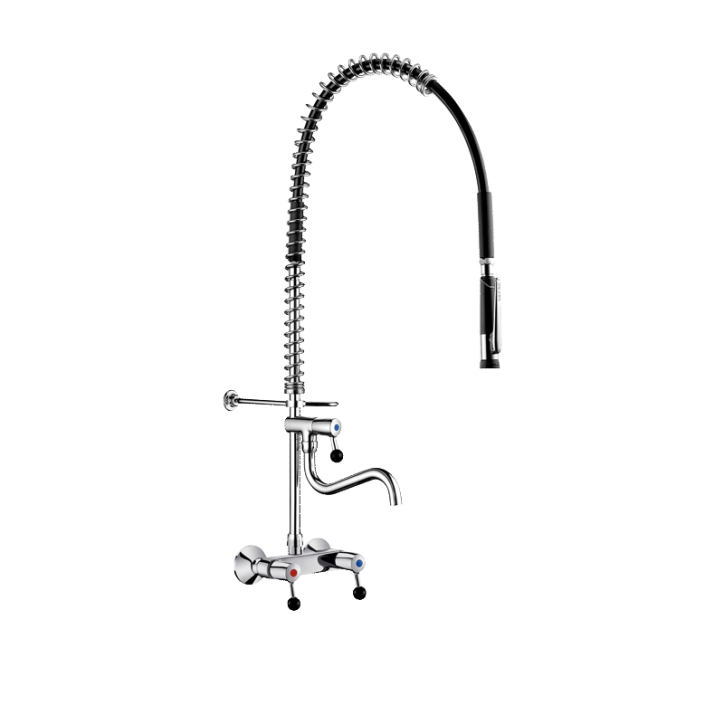

Wall-mounted pre-rinse set with mixer
Ref. 5634Complete pre-rinse set with bib tap suitable for intensive use in professional kitchens.
Wall-mounted mixer, F3/4" with adjustable centres with:
- valve heads with reinforced mechanisms with ergonomic control levers.
- M1/2" M3/4" offset connectors.
- non-return valves integrated in the mixer.
Bib tap with swivelling, tubular spout L. 200mm.
- 25 lpm full flow rate achieved within 90°.
- valve head with reinforced mechanism with ergonomic control lever.

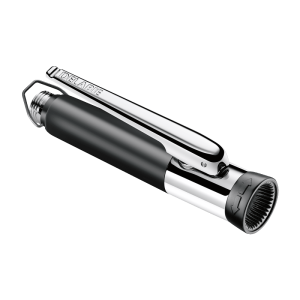

Black hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433010).
Scale-resistant hand spray with shock-resistant tip.
Black, reinforced, food-grade flexible hose L.0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.
Wall-mounted mixer, F3/4" with adjustable centres with:
- valve heads with reinforced mechanisms with ergonomic control levers.
- M1/2" M3/4" offset connectors.
- non-return valves integrated in the mixer.
Bib tap with swivelling, tubular spout L. 200mm.
- 25 lpm full flow rate achieved within 90°.
- valve head with reinforced mechanism with ergonomic control lever.
Black hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433010).
Scale-resistant hand spray with shock-resistant tip.
Black, reinforced, food-grade flexible hose L.0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.
ADVANTAGES
Rapid fill: full flow within the first 90°
Anti-torsion rotating nut and PVC sheath
Comfort: ergonomic controls, swivelling spout
Hygiene: Hytrel flexible, scale-resistant spray

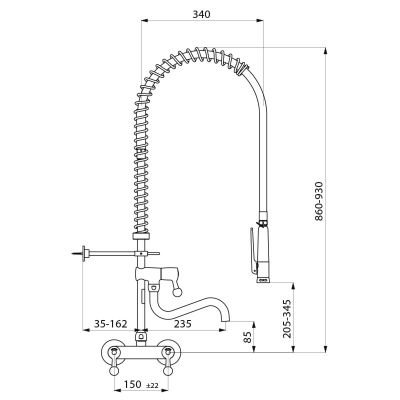

TECHNICAL CHARACTERISTICS
Wall-mounted pre-rinse set with mixer
Ref. 5634Connector | M1/2" |
Height | 860 - 930mm |
Drop height | 205 - 345mm |
Flow rate | 25 lpm bib tap; 9 lpm via the hand spray |
Width to the wall | 35 - 162mm |
Finish | Chrome-plated brass |
Certificates | |
Warranty | |
Repairability |
Spare parts

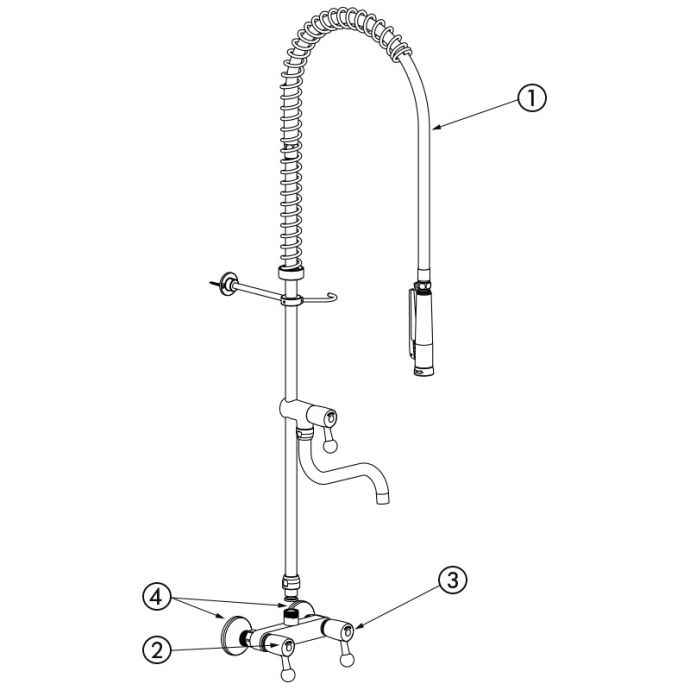

SPARE PARTS
Wall-mounted pre-rinse set with mixer
Ref. 56341. | 433622 |
|
Black pre-rinse set with no valve |
2. | P271AA85 |
|
Valve head 1/4 left turn |
3. | P272AA85 |
|
Valve head 1/4 right turn |
4. | 856127.2P |
|
Offset connector |

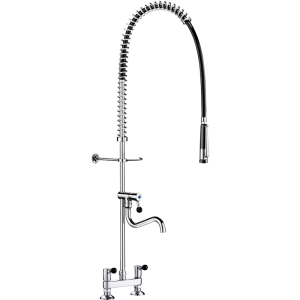

VARIANTS
5834 | Hand spray with scale-resistant nipples - With bib tap & tubular spout | ||
---|---|---|---|
5836 | Hand spray with scale-resistant nipples - Without bib tap | ||
5636 | Hand spray with scale-resistant nozzle - Without bib tap |
VARIANTS
5834 | Hand spray with scale-resistant nipples - With bib tap & tubular spout | ||
---|---|---|---|
5836 | Hand spray with scale-resistant nipples - Without bib tap | ||
5636 | Hand spray with scale-resistant nozzle - Without bib tap |
