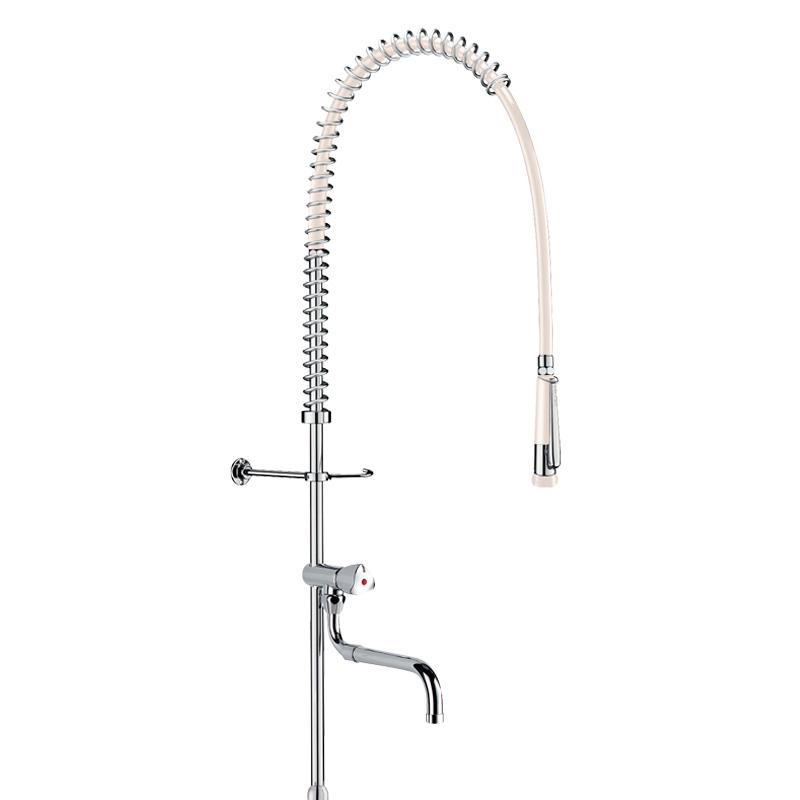

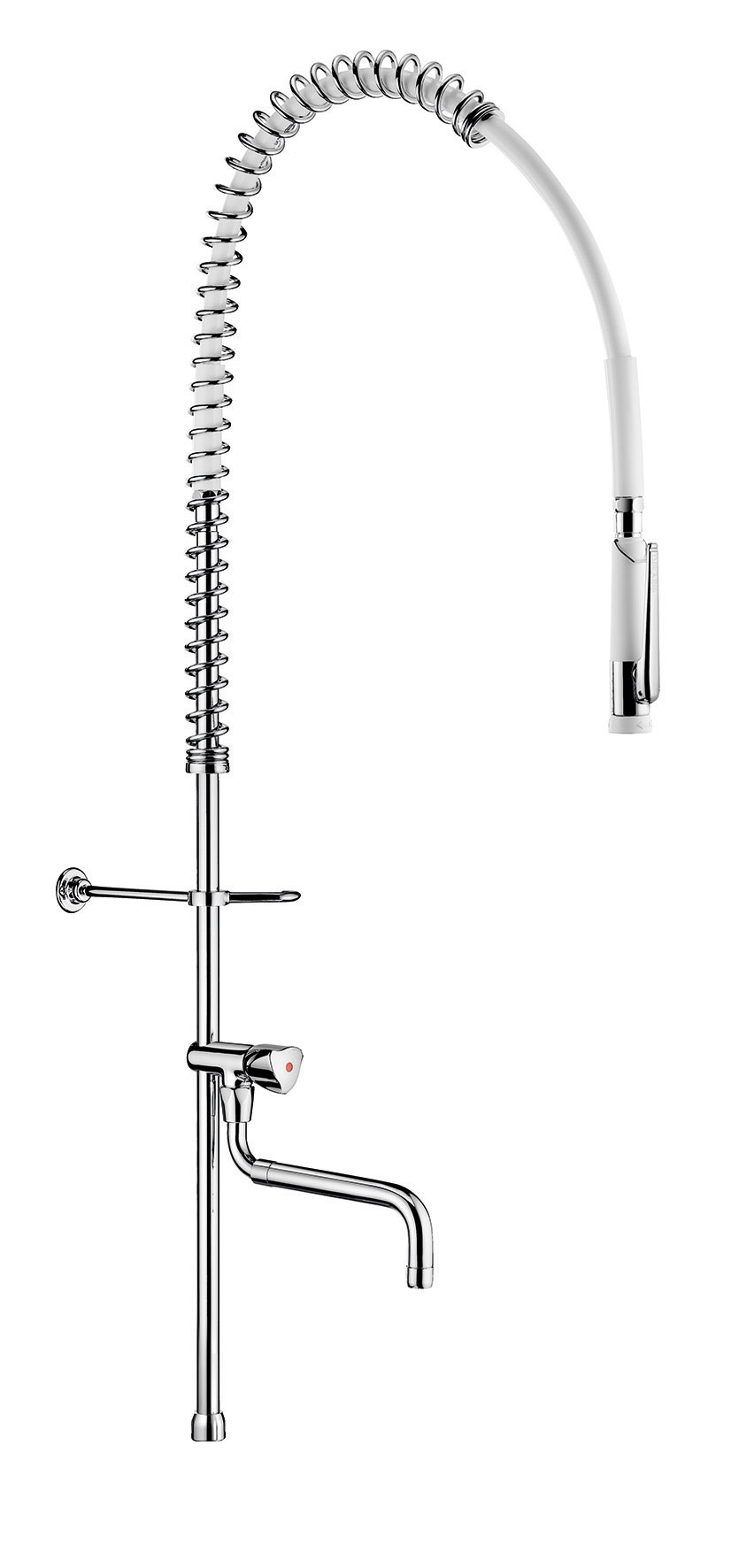

White pe-rinse set with no valve

Ref. 433220
With bib tap and swivelling telescopic spout
See variants See variants
White pe-rinse set with no valve

Presentation

DESCRIPTION

White pe-rinse set with no valve

Ref. 433220
White pre-rinse set without valve suitable for intensive use in professional kitchens.
Bib tap with swivelling telescopic spout L. 200 - 290mm and valve head with control knob.
White hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433000).
Scale-resistant hand spray with shock-resistant tip.
White reinforced food-grade flexible hose L. 0.95m.
3/4" long brass column.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.
This pre-rinse set, with no water control valve, comprises spare parts for repairing pre-rinse sets.

ADVANTAGES

Endurance - Fiabilité

Anti-torsion rotating nut and PVC sheath

Confort - Ergonomie - Déclenchement souple

Comfort: ergonomic control, telescopic spout

Hygiène - Anti-bactérien - BIOSAFE

Hygiene: PVC flexible, scale-resistant spray

Anti-vandalisme

Increased resistance: high quality flexible

Characteristics

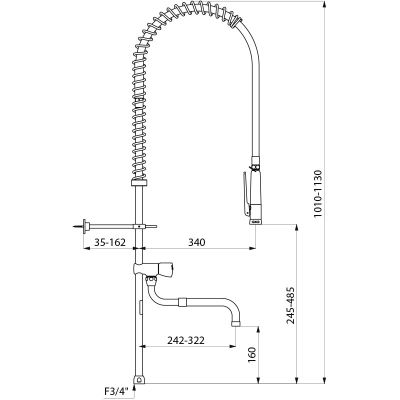

TECHNICAL CHARACTERISTICS

White pe-rinse set with no valve

Ref. 433220
Connector 3/4"
Height 1010 - 1130mm
Drop height 245 - 485mm
Flow rate depends on the valve
Width to the wall 35 - 162mm
Finish Chrome-plated brass
Certificates ACS Logo PZH
Warranty 30-Year
Repairability
White pe-rinse set with no valve
Ref. 433220

Downloads

DOWNLOADS

White pe-rinse set with no valve

Ref. 433220

To download one or several documents linked to this product, please select the type of file you require :

Compatible products

COMPATIBLE PRODUCTS

White pe-rinse set with no valve

Ref. 433220
G6632
Pre-rinse set with mixer
Pre-rinse set with mixer
6692
Pre-rinse set with mixer
Pre-rinse set with mixer
G6532
Twin hole pre-rinse set with mixer
Twin hole pre-rinse set with mixer

Spare parts

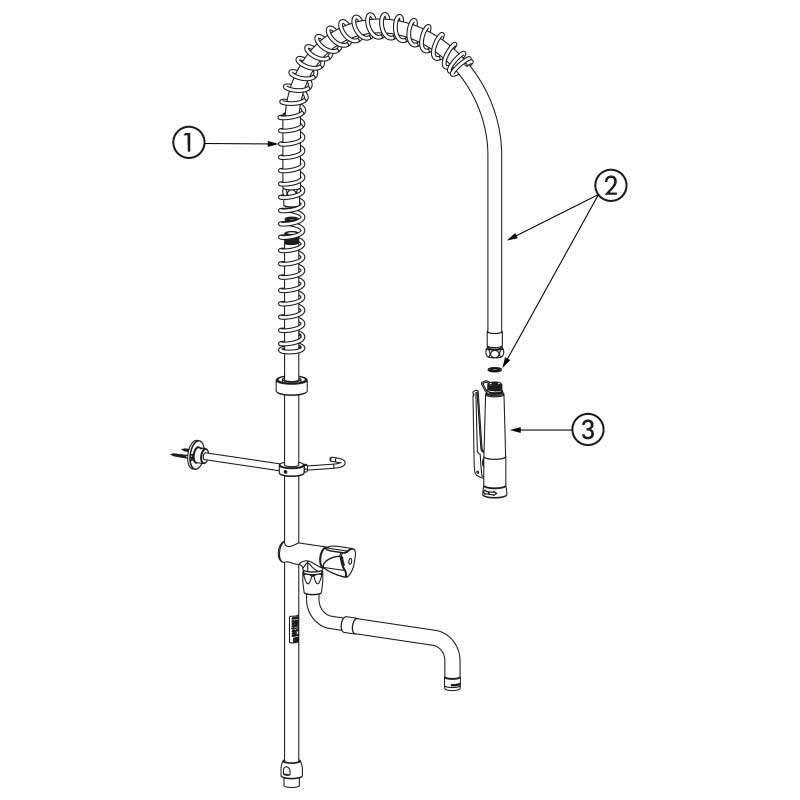

SPARE PARTS

White pe-rinse set with no valve

Ref. 433220
1. 433038
Stainless steel spring guide
2. 433095
Food-grade flexible hose for catering
3. 433000
White M1/2" hand spray
4. 433802
Pre-rinse long column

VARIANTS

433020 Hand spray with scale-resistant nozzle - Tall column - Without bib tap
433420 Hand spray with scale-resistant nozzle - Short column - Without bib tap
433422 Hand spray with scale-resistant nozzle - Short column - With bib tap

Associated products

VARIANTS

433020 Hand spray with scale-resistant nozzle - Tall column - Without bib tap
433420 Hand spray with scale-resistant nozzle - Short column - Without bib tap
433422 Hand spray with scale-resistant nozzle - Short column - With bib tap
