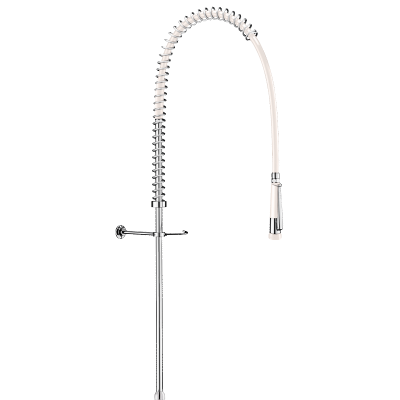

White pre-rinse set with no valve

Ref. 433020
Without bib tap
White pre-rinse set with no valve

Presentation

DESCRIPTION

White pre-rinse set with no valve

Ref. 433020
White pre-rinse set without valve suitable for intensive use in professional kitchens.
Without bib tap.
White hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433000).
Scale-resistant hand spray with shock-resistant tip.
White, reinforced, food-grade flexible hose L. 0.95m.
Long brass column 3/4".
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.
This pre-rinse set, with no water control valve, comprises spare parts for repairing pre-rinse sets.

ADVANTAGES

Endurance - Fiabilité

Anti-torsion rotating nut and PVC sheath

Confort - Ergonomie - Déclenchement souple

Comfort: hand spray with adjustable jet

Anti-vandalisme

Increased resistance: high quality flexible

Hygiène - Anti-bactérien - BIOSAFE

Hygiene: PVC flexible, scale-resistant spray

Characteristics

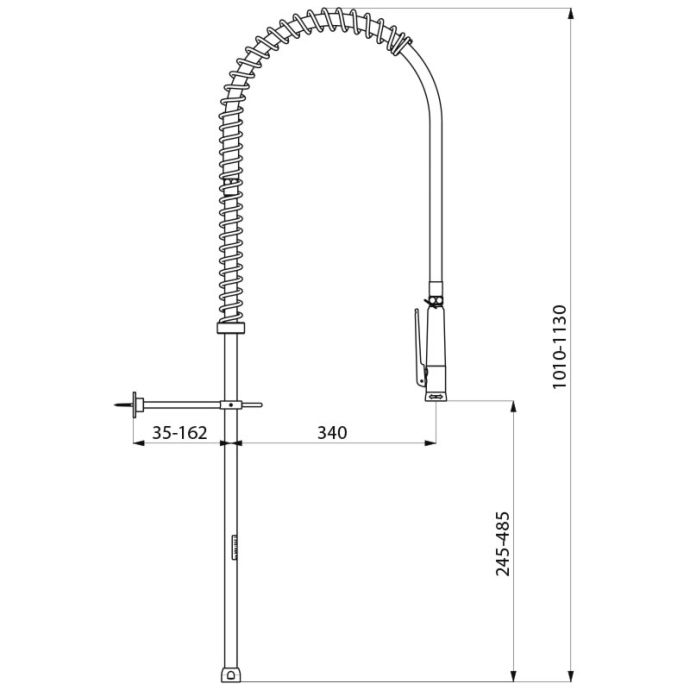

TECHNICAL CHARACTERISTICS

White pre-rinse set with no valve

Ref. 433020
Connector 3/4"
Height 1010 - 1130mm
Drop height 245 - 485mm
Flow rate depends on the valve
Width to the wall 35 - 162mm
Finish Chrome-plated brass
Certificates ACS Logo PZH
Warranty 30-Year
White pre-rinse set with no valve
Ref. 433020
