Free-standing eye wash station

Ref. 9201
Manual and pedal control
Free-standing eye wash station

Presentation

DESCRIPTION

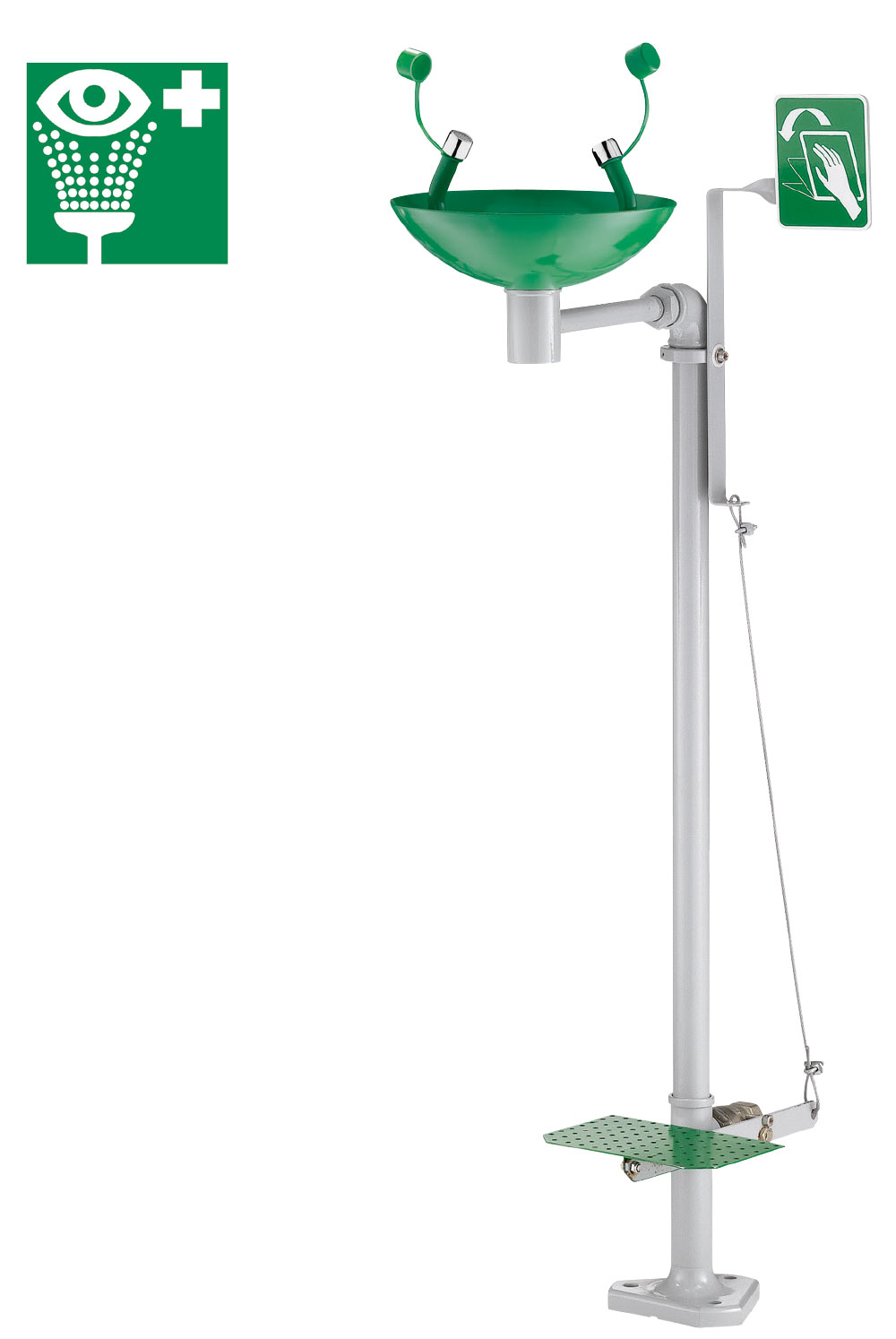

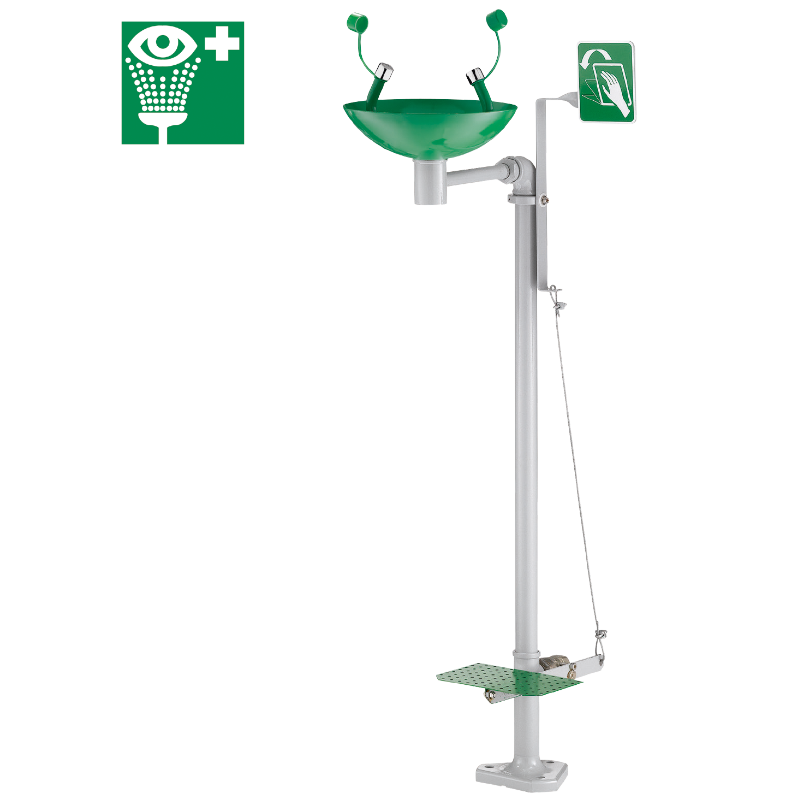

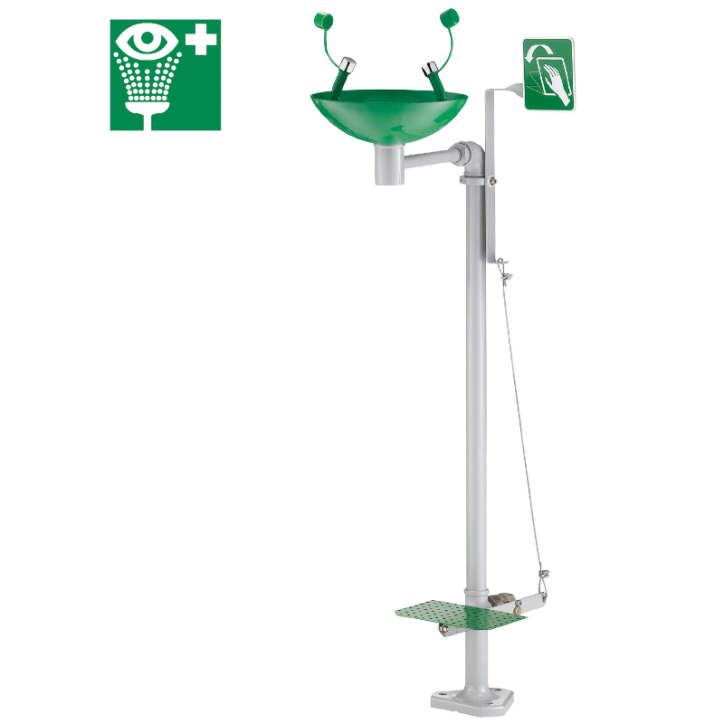

Free-standing eye wash station

Ref. 9201
Free-standing eye wash station with manual and pedal control equipped with:
Frost-free system as standard.
304 stainless steel basin Ø 250mm, green powder-coated finish.

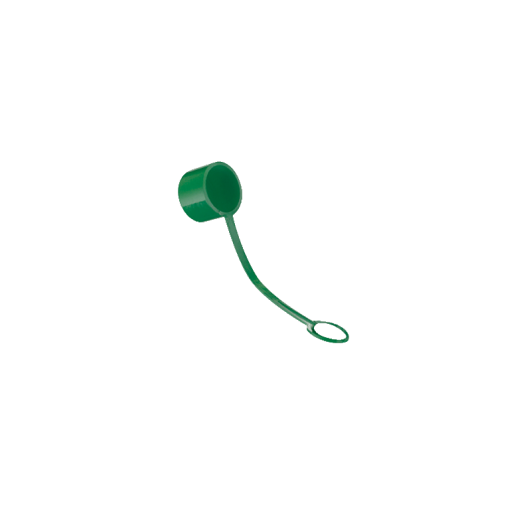

2 eye wash spray heads fitted with protective caps in shock-resistant green ABS; will eject automatically when activated.
1/4-turn, nickel-plated brass valves open and close quickly.
30-year warranty.

Operation:
Water flow is activated by hand or foot control. The eye wash will continue to operate when the hand or foot control is released. To stop the flow, pull the hand control in the opposite direction and raise the pedal with your foot.
Flow rate 20 lpm at 3 bar dynamic pressure.

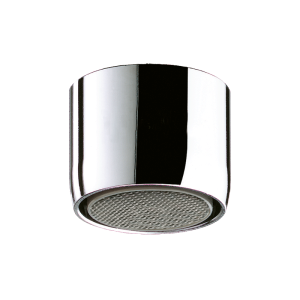

Aerators with stainless steel double filters.
Water supply F1".
Pipework made from galvanised steel, grey powder-coated finish.
Hand and foot controls in green powder-coated galvanised steel.
Fixed to the floor by a triangular brass plate (screws not included.)
Supplied with identification sign for first aid equipment: "Eye Wash".

ADVANTAGES

Sécurité

Frost-free system provided as standard

Confort - Ergonomie - Déclenchement souple

Gentle spray, quick and easy to activate

Maintenance aisée - Installation aisée

Maintenance without removing the equipment

Confort - Ergonomie - Déclenchement souple

Rapid flow rates for decontamination

Characteristics

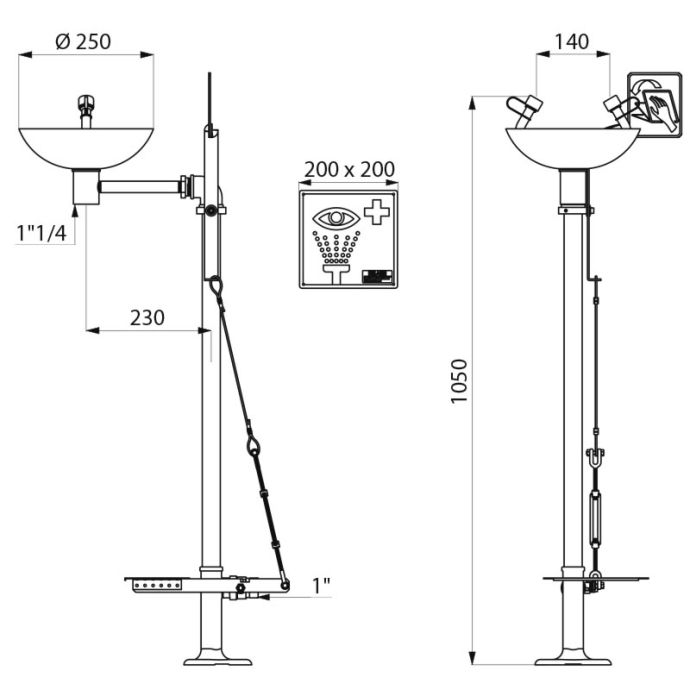

TECHNICAL CHARACTERISTICS

Free-standing eye wash station

Ref. 9201
Height 1050mm
Depth 500mm
Flow rate 20 lpm at 3 bar dynamic pressure
Finish Epoxy
Certificates Logo Belgaqua Logo DoP Logo PZH
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Lave-yeux de sécurité sur colonne

Ref. 9201

To download one or several documents linked to this product, please select the type of file you require :

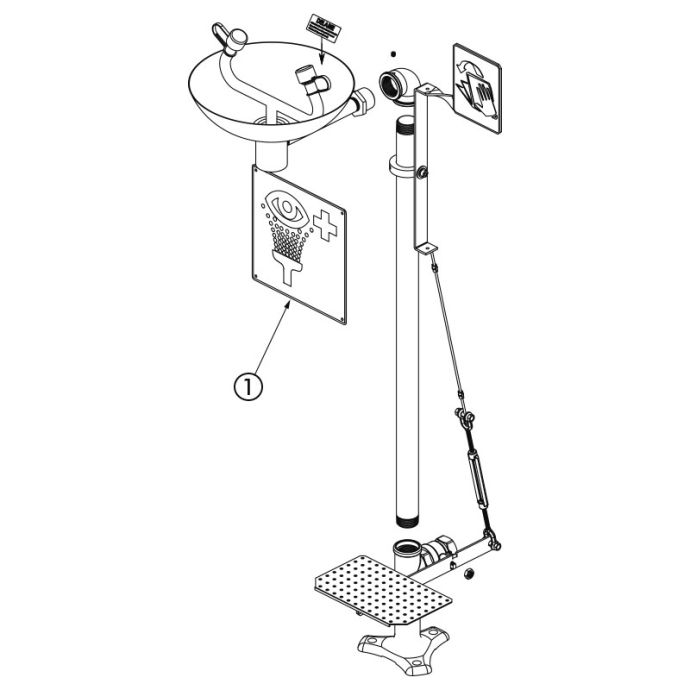

Spare parts

SPARE PARTS

Free-standing eye wash station

Ref. 9201
1. V669AH75
Nameplate for safety eye wash

VARIANTS

9102 Wall-mounted eye wash - M1/2" water inlet

VARIANTS

9102 Wall-mounted eye wash - M1/2" water inlet
