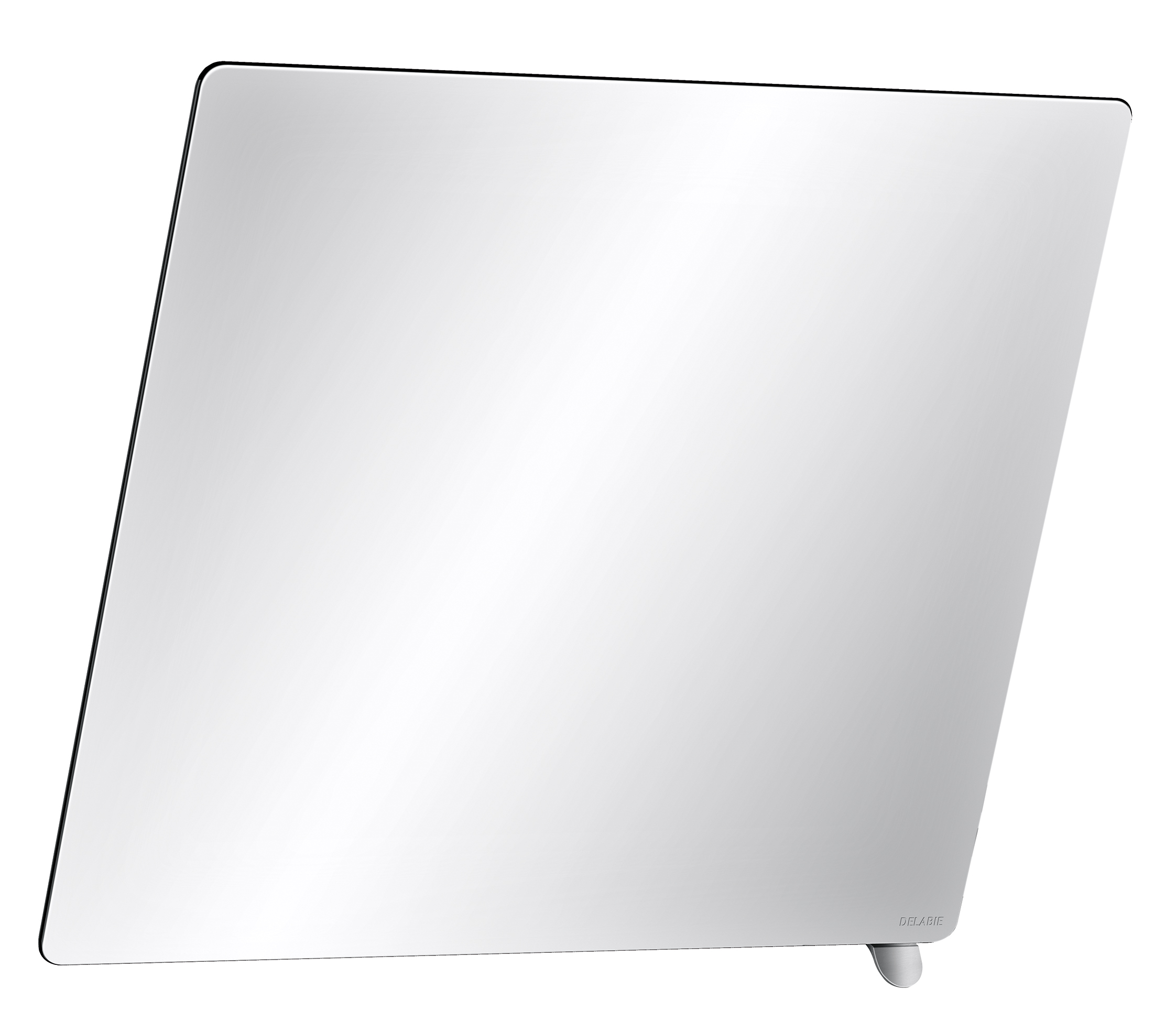

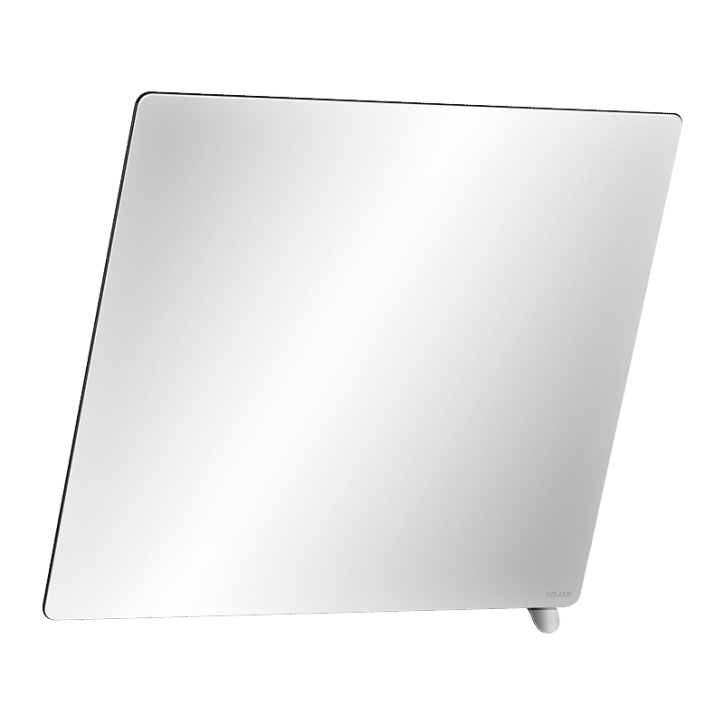

Tilting mirror with tab handle

Ref. 510202S
Satin chrome handle
Tilting mirror with tab handle

Presentation

DESCRIPTION

Tilting mirror with tab handle

Ref. 510202S

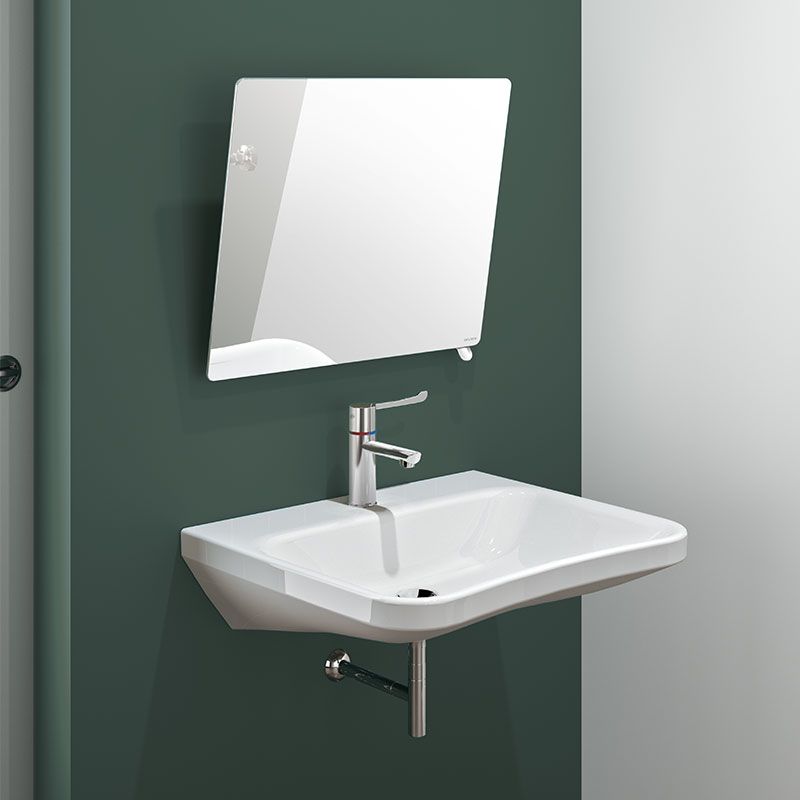

Wall-mounted, tilting, rectangular mirror with handle making it easily adjustable for those sitting down or in a wheelchair.
For disabled washrooms or combined installation: can be used from a sitting position, for people with reduced mobility, or standing position.
Quick and easy installation: just clip into place.
Anti-theft locking.
Satin chrome handle.
6mm thick safety glass mirror.
Mirror dimensions: 500 x 600mm.
Can be tilted up to 20°.
Tilting mirror with 30-year warranty.

ADVANTAGES

Confort - Ergonomie - Déclenchement souple

Lever: tilts mirror from a seated position

Sécurité

Laminated safety mirror

Maintenance aisée - Installation aisée

Easy to install: just clip into place

Design

Design

Characteristics

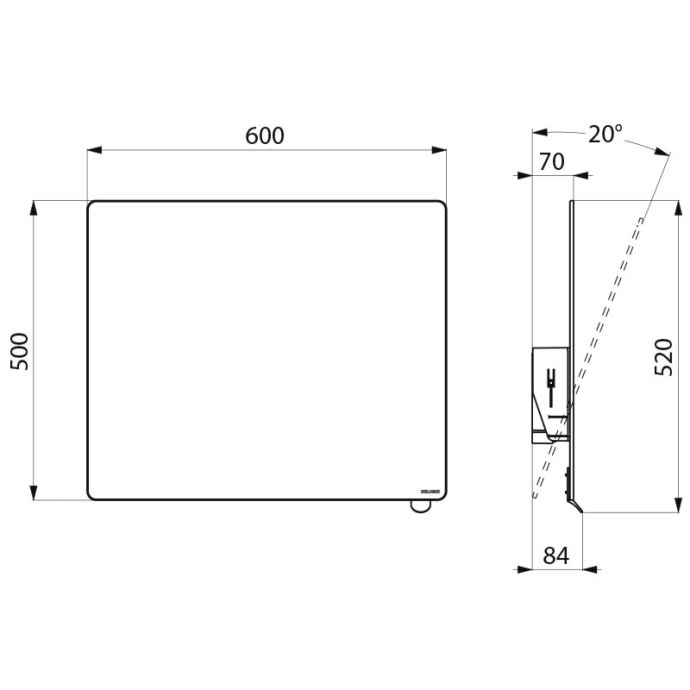

TECHNICAL CHARACTERISTICS

Tilting mirror with tab handle

Ref. 510202S
Height 500mm
Depth 84mm
Width 600mm
Width to the wall 70mm and 20° tilt
Thickness 6mm
Finish Satin chrome
Certificates Logo PZH
Warranty 30-Year

Downloads

DOWNLOADS

Miroir inclinable avec poignée

Ref. 510202S

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

510202P Mirror with bright chrome handle
