DESCRIPTION

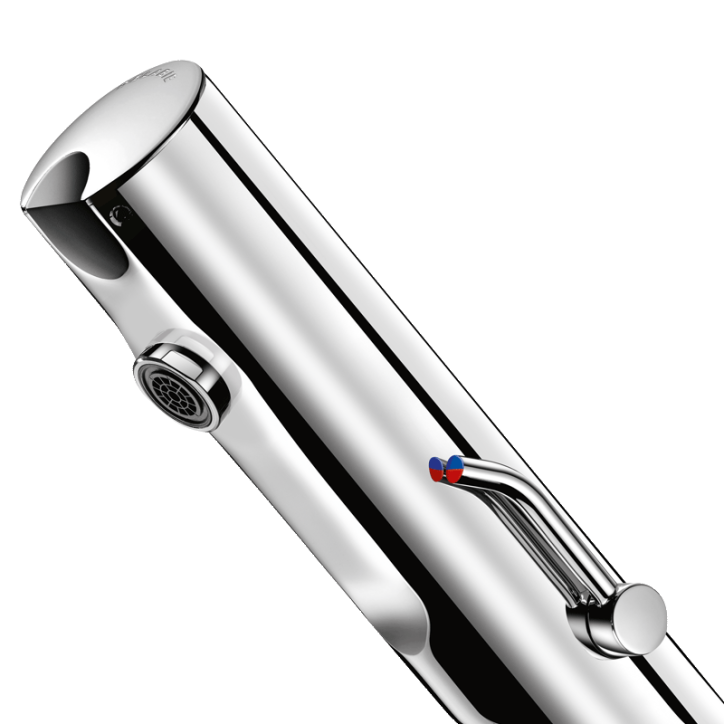

TEMPOMATIC MIX 4 electronic mixer
Ref. 490006LHDeck-mounted electronic basin mixer:
Battery-operated with integrated 123 6V Lithium batteries.
Reduced-stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after last use).
Presence detection sensor at the end of the spout optimises detection.
Chrome-plated stainless steel body.
Cap fixed in place by 2 concealed screws.
PEX flexibles with filters and non-return valves.
Fixing reinforced by two stainless steel rods.
Anti-blocking security.
Side temperature control with long lever and adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
Battery-operated with integrated 123 6V Lithium batteries.
Reduced-stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after last use).
Presence detection sensor at the end of the spout optimises detection.
Chrome-plated stainless steel body.
Cap fixed in place by 2 concealed screws.
PEX flexibles with filters and non-return valves.
Fixing reinforced by two stainless steel rods.
Anti-blocking security.
Side temperature control with long lever and adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
Exceptional water savings: 90%
Hygiene: no manual contact
Batteries integrated into the body of the mixer
Integrated solenoid valve

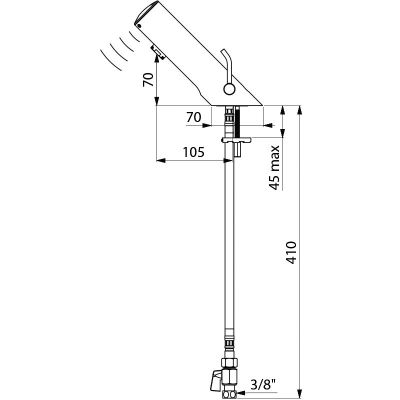

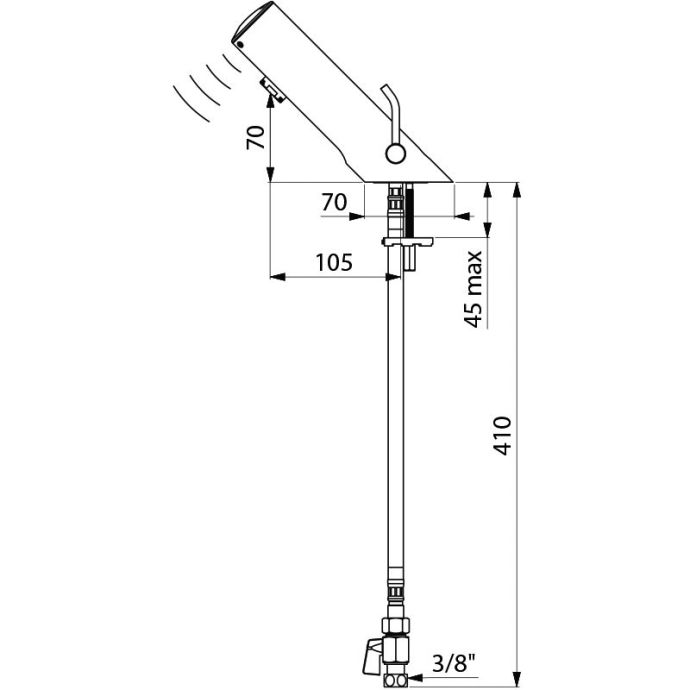

TECHNICAL CHARACTERISTICS
TEMPOMATIC MIX 4 electronic mixer
Ref. 490006LHSupply | 6V batteries |
Connector | F3/8" |
Technology | Electronic |
Drop height | 70mm |
Spout length | 105mm |
Flow rate | 3 lpm |
Certificates | |
Warranty | |
Repairability |
Spare parts

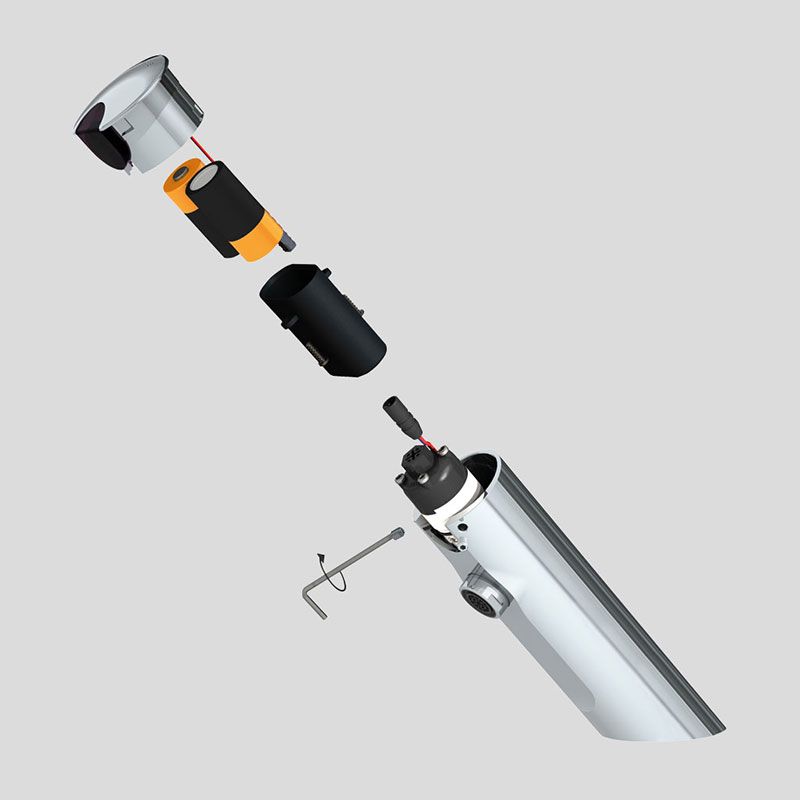

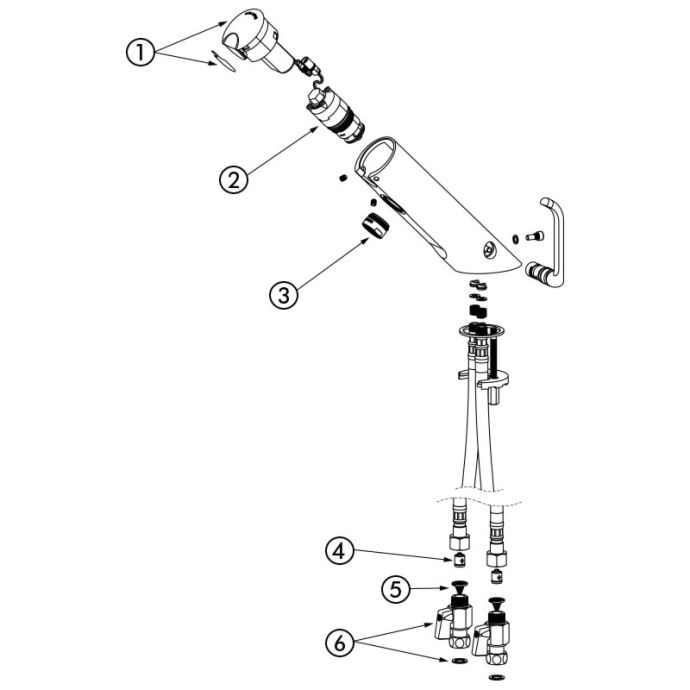

SPARE PARTS
TEMPOMATIC MIX 4 electronic mixer
Ref. 490006LH1. | 490454 |
|
Electronic control unit |
2. | 479650 |
|
Solenoid valve |
3. | 922016.2P |
|
Flow straightener |
4. | 900010 |
|
Non-return valve |
5. | 60440.10P |
|
Filter with mesh screen |
6. | 825212 |
|
In-line STOP union |
VARIANTS
490000LH | Mains supply, recessed unit - long lever - With stopcocks | ||
---|---|---|---|
490100LH | Mains supply, recessed unit - long lever -Without stopcocks | ||
490106LH | Battery operated - long lever - Without stopcocks |
VARIANTS
490000LH | Mains supply, recessed unit - long lever - With stopcocks | ||
---|---|---|---|
490100LH | Mains supply, recessed unit - long lever -Without stopcocks | ||
490106LH | Battery operated - long lever - Without stopcocks |
