DESCRIPTION

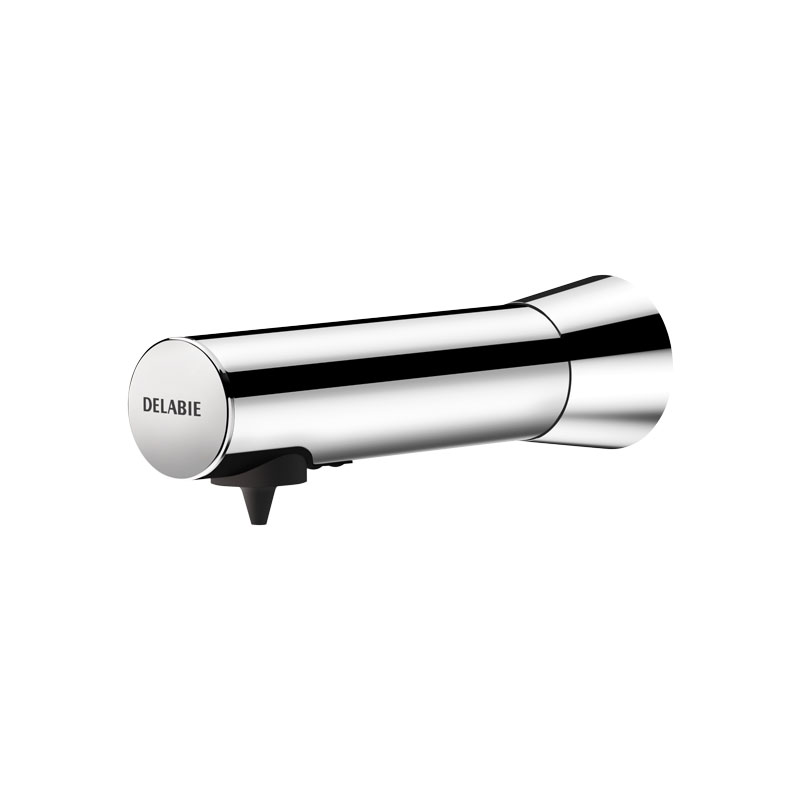

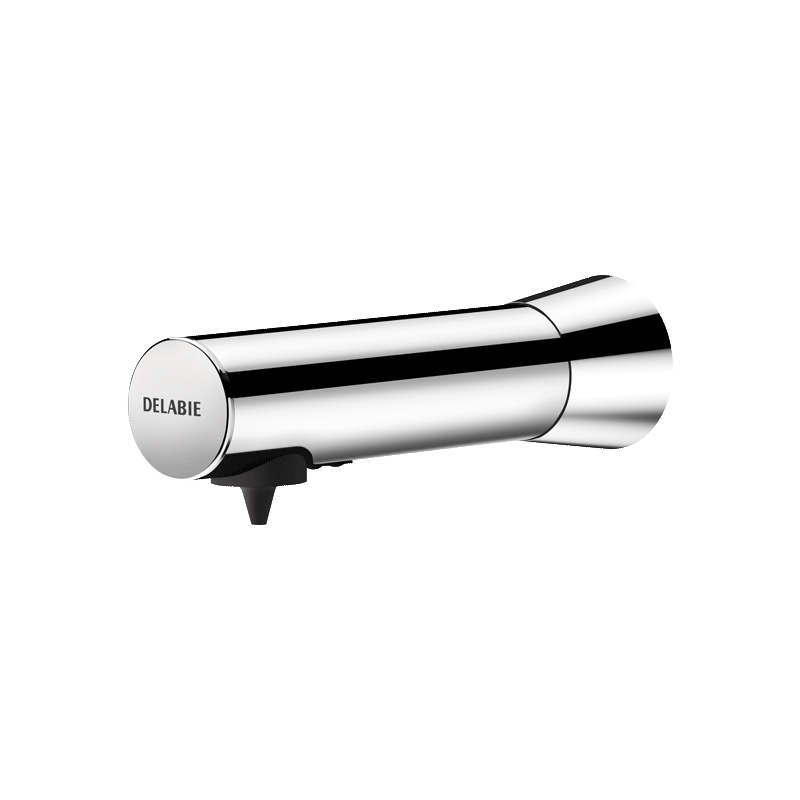

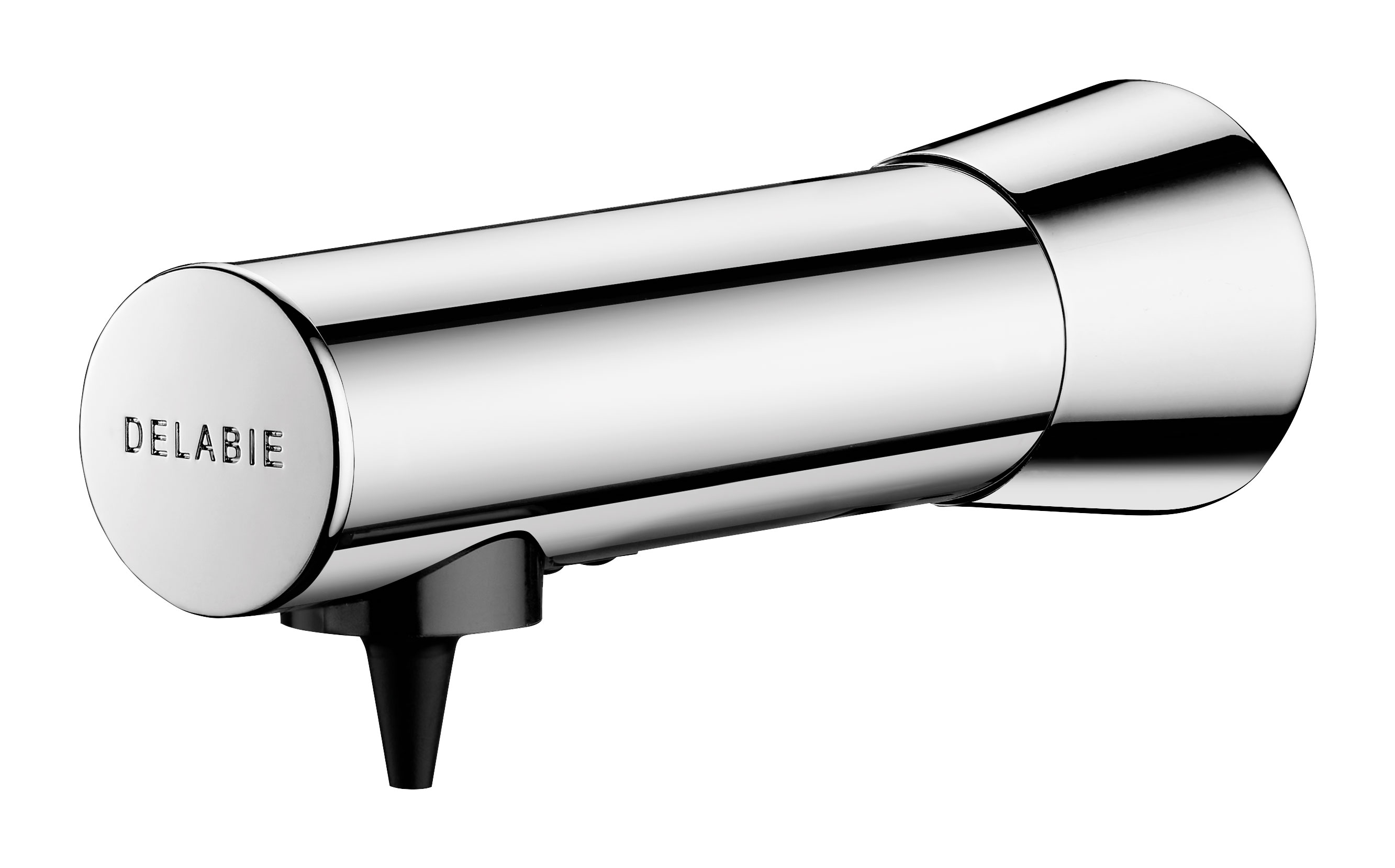

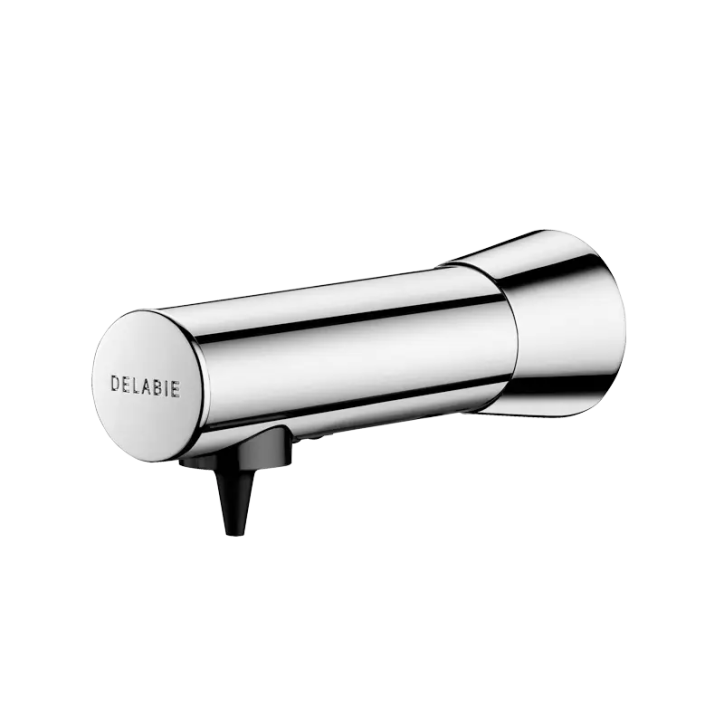

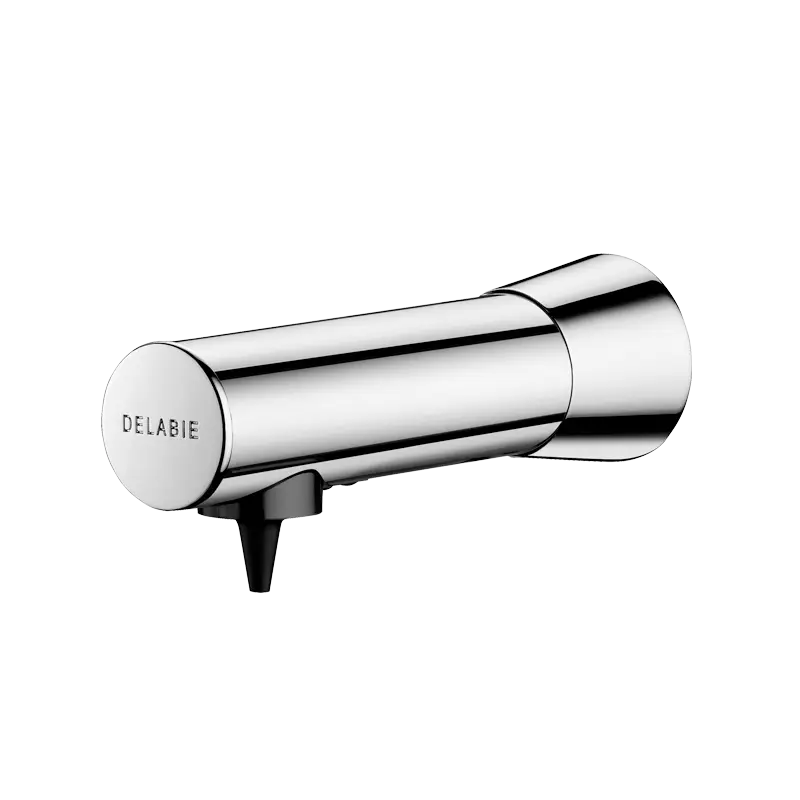

BINOPTIC wall-mounted electronic soap dispenser
Ref. 512151PWall-mounted electronic soap dispenser.
Liquid or foam soap dispenser.
No manual contact: infrared cell detects hands automatically.
Chrome-plated 304 stainless steel spout.
No waste pump dispenser.
Independent electronic unit for installation beneath the washbasin.
Automatic soap dispenser: mains supply with 230/6V transformer.
For vegetable-based liquid soap with maximum viscosity of 3,000 mPa.s or specific foam soap.
Total spout length: 115mm.
Supplied with 1.20m flexible tube for remote tanks (tank not supplied).
Wall-mounted electronic soap dispenser with 30-year warranty.
CE marked.
Liquid or foam soap dispenser.
No manual contact: infrared cell detects hands automatically.
Chrome-plated 304 stainless steel spout.
No waste pump dispenser.
Independent electronic unit for installation beneath the washbasin.
Automatic soap dispenser: mains supply with 230/6V transformer.
For vegetable-based liquid soap with maximum viscosity of 3,000 mPa.s or specific foam soap.
Total spout length: 115mm.
Supplied with 1.20m flexible tube for remote tanks (tank not supplied).
Wall-mounted electronic soap dispenser with 30-year warranty.
CE marked.
ADVANTAGES
Total hygene: no manual contact
Comfort: automatic soap dispenser
No waste pump dispenser
Liquid or foam soap

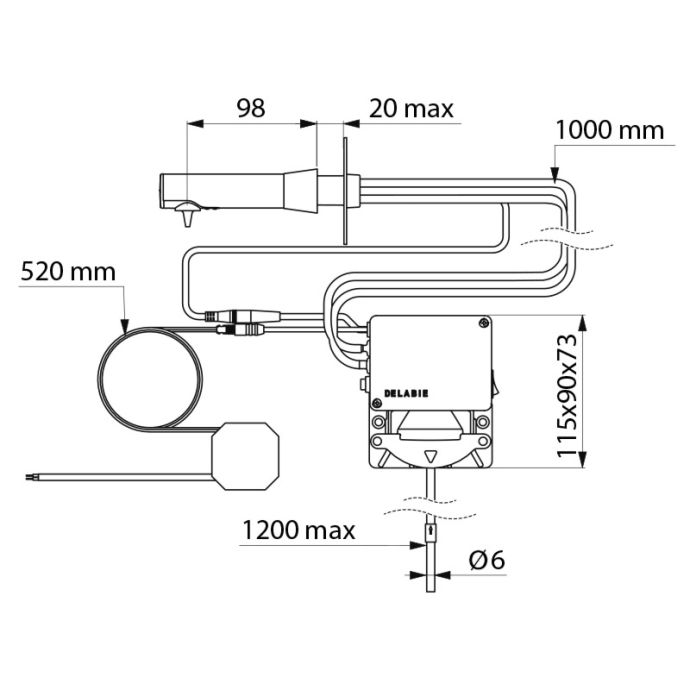

TECHNICAL CHARACTERISTICS
BINOPTIC wall-mounted electronic soap dispenser
Ref. 512151P| Supply | Mains supply 230/6V |
| Technology | Infrared detection |
| Height | 115mm (electronic unit) |
| Length | 115mm |
| Spout length | 98mm |
| Finish | Chrome-plated 304 stainless steel |
| Certificates |
|
| Warranty |
|
| Repairability |  |

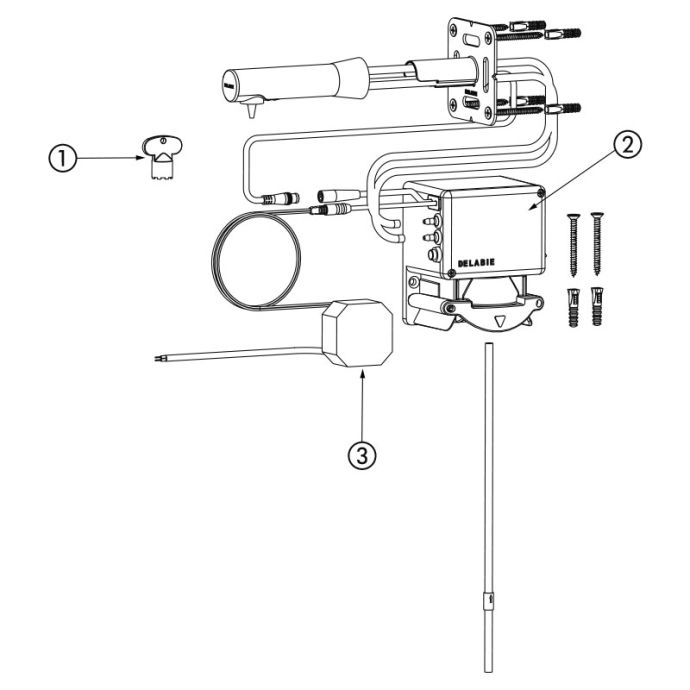

Spare parts
SPARE PARTS
BINOPTIC wall-mounted electronic soap dispenser
Ref. 512151P
| 1. | 222429 |
|
Service key |
| 2. | 490240 |
|
Power supply |
VARIANTS
| 512051BK | With 1 litre tank - Matte black powder-coated 304 stainless steel | ||
|---|---|---|---|
| 512051P | With 1 litre tank - chrome-plated 304 stainless steel | ||
| 512051S | With 1 litre tank - satin finish 304 stainless steel | ||
| 512151BK | With 1.20m flexible tube for remote tank - 304 stainless steel | ||
| 512151S | With 1.2m flexible tube for remote tank - satin finish 304 st. steel | ||
| 512111BK | CW - 1.20m flexible tube for remote tank - Stainless steel | ||
| 512111P | Cross wall, 1.2m flexible tube for remote tank - chrome 304 st. st | ||
| 512111S | Cross wall, 1.2m flexible tube for remote tank - satin finish 304 st. st |
Watch the video of the BINOPTIC wall-mounted electronic soap dispenser
Do public and commercial washrooms need specific hygienic accessories?
Associated products
BINOPTIC electronic tap
Mains supply, Ø 15mm conical inlets
Ref. 379ENC15

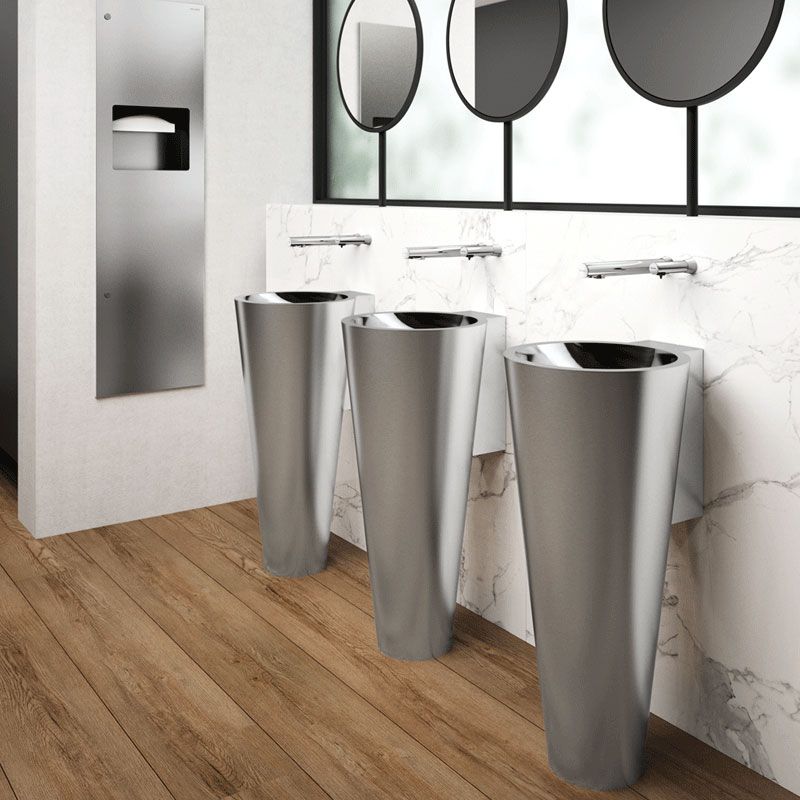

BAILA floor-standing washbasin
