DESCRIPTION

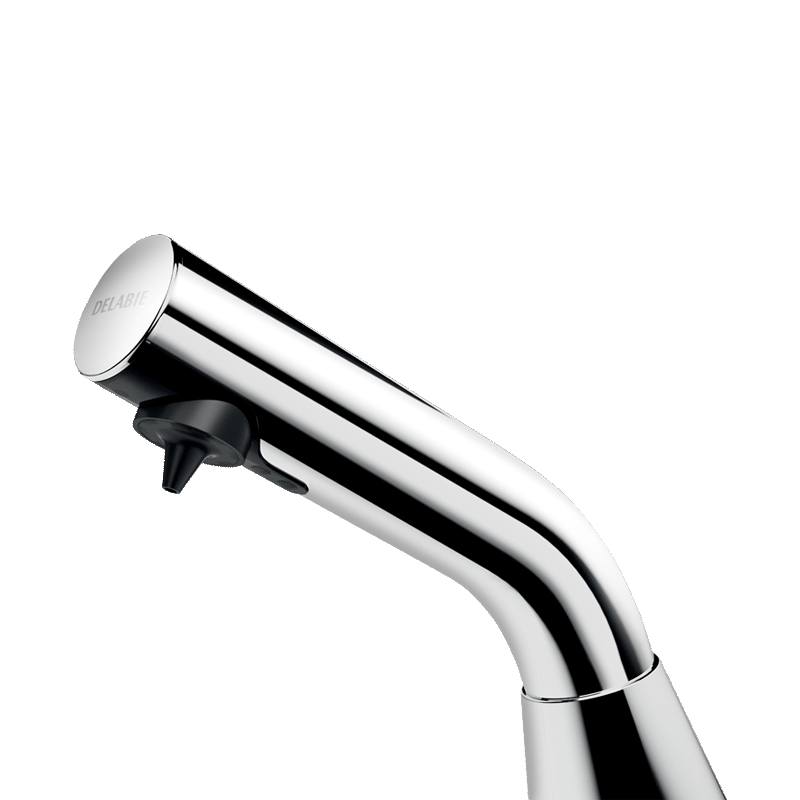

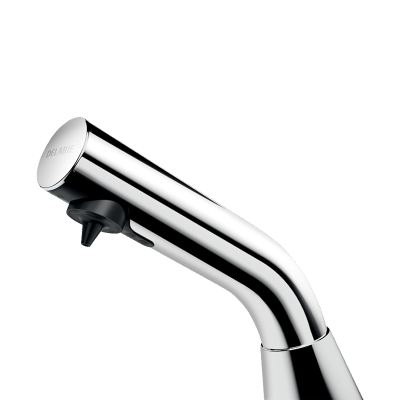

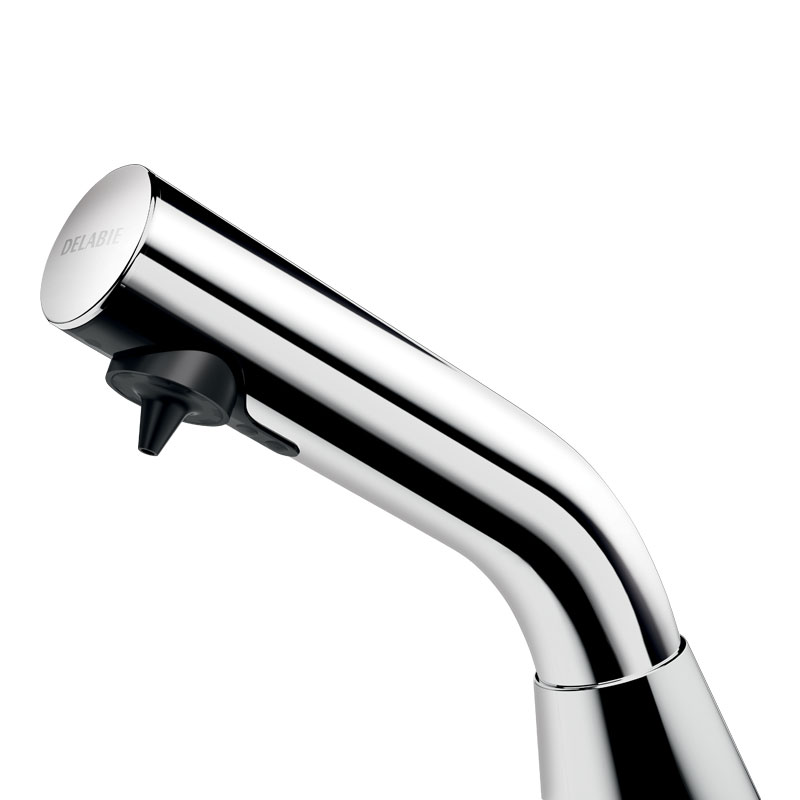

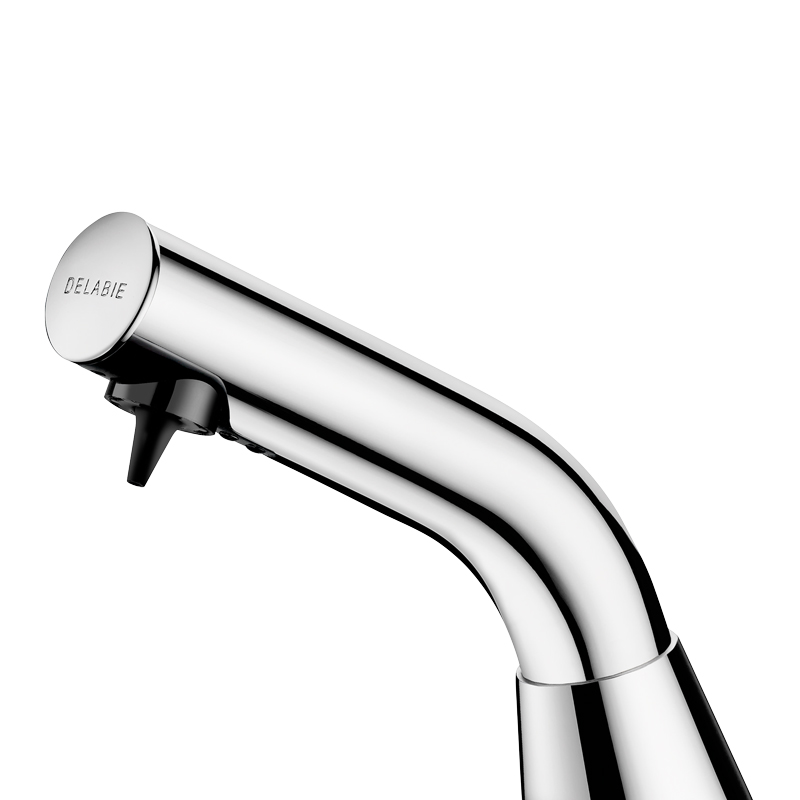

BINOPTIC deck-mounted electronic soap dispenser
Ref. 512121PDeck-mounted electronic soap dispenser.
Liquid or foam soap dispenser.
No manual contact: hands are automatically detected by infrared cell.
Spout made from chrome-plated 304 stainless steel.
No waste pump dispenser.
Separate electronic unit for installation under the basin.
Automatic soap dispenser: mains supply with 230/6V transformer.
For vegetable-based liquid soap with a maximum viscosity of 3,000 mPa.s or specialist foam soap.
Spout length: 105mm.
Supplied with a flexible tube 1.20m long for remote tanks (tank not suppied).
30-year warranty.
CE marked.
Liquid or foam soap dispenser.
No manual contact: hands are automatically detected by infrared cell.
Spout made from chrome-plated 304 stainless steel.
No waste pump dispenser.
Separate electronic unit for installation under the basin.
Automatic soap dispenser: mains supply with 230/6V transformer.
For vegetable-based liquid soap with a maximum viscosity of 3,000 mPa.s or specialist foam soap.
Spout length: 105mm.
Supplied with a flexible tube 1.20m long for remote tanks (tank not suppied).
30-year warranty.
CE marked.
ADVANTAGES
Total hygiene: no manual contact
Comfort: automatic soap dispenser
No waste pump dispenser
Liquid or foam soap

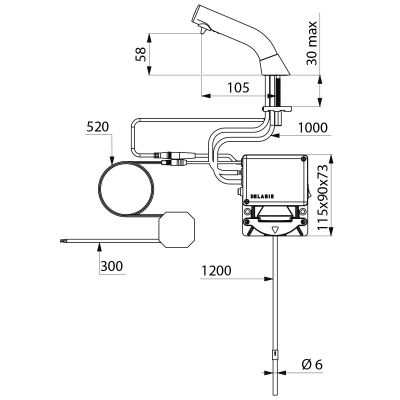

TECHNICAL CHARACTERISTICS
BINOPTIC deck-mounted electronic soap dispenser
Ref. 512121PSupply | Mains supply 230/6V |
Technology | Infrared sensor |
Length | Tube: 1.2m |
Drop height | 58mm |
Spout length | 105mm |
Finish | Chrome-plated 304 stainless steel |
Certificates | |
Warranty | |
Repairability |
Spare parts
SPARE PARTS
BINOPTIC deck-mounted electronic soap dispenser
Ref. 512121P1. | 222429 |
|
Service key |
2. | 490240 |
|
Power supply |
3. | 512BC |
|
Electronic control unit |
VARIANTS
512021BK | With 1 litre tank - Matte black powder-coated 304 stainless steel | ||
---|---|---|---|
512021P | With 1 litre tank - chrome-plated 304 stainless steel | ||
512021S | With 1 litre tank - satin finish 304 stainless steel | ||
512521BK | With 0.5 litre tank - matte black powder-coated 304 stainless steel | ||
512521P | With 0.5 litre tank - chrome-plated 304 stainless steel | ||
512521S | With 0.5 litre tank - satin finish 304 stainless steel | ||
512121BK | With 1.20m flexible tube for remote tank - 304 stainless steel | ||
512121S | With 1.2m flexible tube for remote tank - satin finish 304 st. steel |
VARIANTS
512021BK | With 1 litre tank - Matte black powder-coated 304 stainless steel | ||
---|---|---|---|
512021P | With 1 litre tank - chrome-plated 304 stainless steel | ||
512021S | With 1 litre tank - satin finish 304 stainless steel | ||
512521BK | With 0.5 litre tank - matte black powder-coated 304 stainless steel | ||
512521P | With 0.5 litre tank - chrome-plated 304 stainless steel | ||
512521S | With 0.5 litre tank - satin finish 304 stainless steel | ||
512121BK | With 1.20m flexible tube for remote tank - 304 stainless steel | ||
512121S | With 1.2m flexible tube for remote tank - satin finish 304 st. steel |
