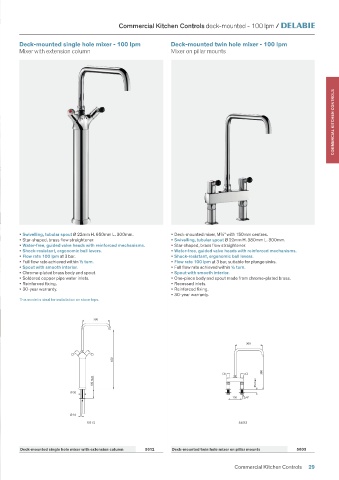

Commercial Kitchen Controls deck-mounted - 100 lpm /


            Deck-mounted single hole mixer - 100 lpm             Deck-mounted twin hole mixer - 100 lpm
            Mixer with extension column                          Mixer on pillar mounts







                                                                                                                          COMMERCIAL KITCHEN CONTROLS






























            • Swivelling, tubular spout Ø 22mm H. 650mm L. 300mm.  • Deck-mounted mixer, M¾" with 150mm centres.
            • Star-shaped, brass flow straightener.               • Swivelling, tubular spout Ø 22mm H. 380mm L. 300mm.
            • Water-free, guided valve heads with reinforced mechanisms.  • Star-shaped, brass flow straightener.
            • Shock-resistant, ergonomic ball levers.            • Water-free, guided valve heads with reinforced mechanisms.
            • Flow rate 100 lpm at 3 bar.                        • Shock-resistant, ergonomic ball levers.
            • Full flow rate achieved within ½ turn.              • Flow rate 100 lpm at 3 bar, suitable for plunge sinks.
            • Spout with smooth interior.                        • Full flow rate achieved within ½ turn.
            • Chrome-plated brass body and spout.                • Spout with smooth interior.
            • Soldered copper pipe water inlets.                 • One-piece body and spout made from chrome-plated brass.
            • Reinforced fixing.                                  • Recessed inlets.
            • 30-year warranty.                                  • Reinforced fixing.
                                                                 • 30-year warranty.
            This model is ideal for installation on stove tops.


                                      300




                                                                                            300

                                             650

                                                                                                 380
                                      100 max                                                  35 max

                              Ø 50
                                                                                       150   3/4"

                              Ø 16
                                    5612                                                 5603




            Deck-mounted single hole mixer with extension column  5612  Deck-mounted twin hole mixer on pillar mounts  5603
