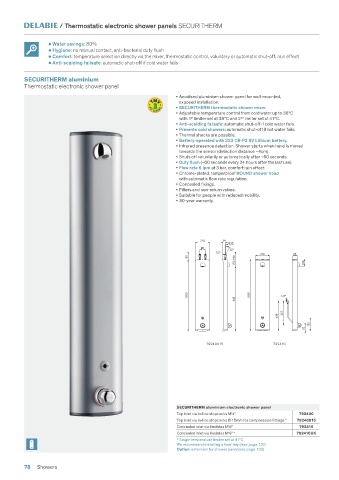

Page 80 - Water_Controls_for_Public-Commercial

/ Thermostatic electronic shower panels SECURITHERM

• Water savings: 80%
• Hygiene: no manual contact, anti-bacterial duty flush
• Comfort: temperature selection directly via the mixer, thermostatic control, voluntary or automatic shut-off, rain effect
• Anti-scalding failsafe: automatic shut-off if cold water fails

SECURITHERM aluminium
Thermostatic electronic shower panel
• Anodised aluminium shower panel for wall-mounted,
exposed installation.
• SECURITHERM thermostatic shower mixer.
• Adjustable temperature control from cold water up to 38°C
st
with 1 limiter set at 38°C and 2 limiter set at 41°C.
nd
• Anti-scalding failsafe: automatic shut-off if cold water fails.
• Prevents cold showers: automatic shut-off if hot water fails.
• Thermal shocks are possible.
• Battery-operated with 223 CR-P2 6V Lithium battery.
• Infrared presence detection. Shower starts when hand is moved
towards the sensor (detection distance ~4cm).
• Shuts off voluntarily or automatically after ~60 seconds.
• Duty flush (~60 seconds every 24 hours after the last use).
• Flow rate 6 lpm at 3 bar, comfort rain effect.
• Chrome-plated, tamperproof ROUND shower head
with automatic flow rate regulation.
• Concealed fixings.
• Filters and non-return valves.
• Suitable for people with reduced mobility.
• 30-year warranty.

210 34
Ø15
80
30°
1/2" 210 65
80
170-190 100

1050 945 1050 1/2"

357
439
192
82

79240015 792410

SECURITHERM aluminium electronic shower panel
Top inlet via in-line stopcocks M½" 792400
Top inlet via in-line stopcocks Ø 15mm for compression fittings * 79240015
Concealed inlet via flexibles M½" 792410
Concealed inlet via flexibles M½" * 792410UK
* Single temperature limiter set at 41°C
We recommend installing a floor trap (see page 131)
Option: extension for shower panel (see page 106)

78 Showers
