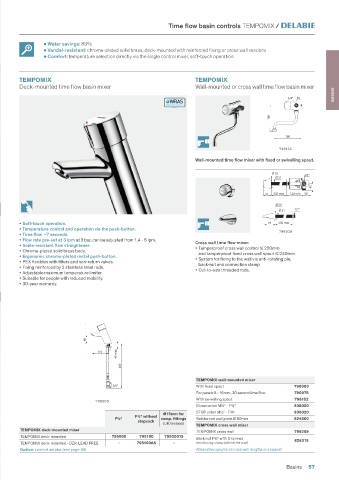

Time flow basin controls TEMPOMIX /

• Water savings: 85%
• Vandal-resistant: chrome-plated solid brass, deck-mounted with reinforced fixing or cross wall versions
• Comfort: temperature selection directly via the single control mixer, soft-touch operation

TEMPOMIX TEMPOMIX
Deck-mounted time flow basin mixer Wall-mounted or cross wall time flow basin mixer
BASINS
3/4" 30

180

180

798152
Wall-mounted time flow mixer with fixed or swivelling spout.

Ø 70 3/4"
Ø 21
45
55 220 max 120 min 30
Ø 50
Ø 21 1/2"

• Soft-touch operation. 75 230 max
• Temperature control and operation via the push-button.
795209
• Time flow ~7 seconds.
• Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm. Cross wall time flow mixer:
• Scale-resistant flow straightener.
• Chrome-plated solid brass body. • Tamperproof cross wall control ≤ 220mm
and tamperproof fixed cross wall spout ≤ 230mm.
• Ergonomic chrome-plated metal push-button. • System for fixing to the wall via anti-rotating pin,
• PEX flexibles with filters and non-return valves. back-nut and connection clamp.
• Fixing reinforced by 2 stainless steel rods. • Cut-to-size threaded rods.
• Adjustable maximum temperature limiter.
• Suitable for people with reduced mobility.
• 30-year warranty.

60
40 max
110
400

TEMPOMIX wall-mounted mixer
3/8" With fixed spout 796000
For panels 8 - 16mm , 30 second time flow 790975
With swivelling spout 798152
795000
Elbow union M½" - F¾" 838020
STOP union M½" - F¾" 836020
Ø15mm for
F⅜" without
F⅜" comp. fittings Reinforced wall plate Ø 80mm 824800
stopcock
(UK/Ireland)
TEMPOMIX cross wall mixer
TEMPOMIX deck-mounted mixer
TEMPOMIX cross wall 795209
TEMPOMIX deck-mounted 795000 795100 79500015
Back nut F½" with 3 screws
TEMPOMIX deck-mounted - DZR LEAD FREE - 795100AS - (reinforcing clamp behind the wall) 826315
Option: comfort aerator (see page 68) Alternative spout and cross wall lengths on request
Basins 57
