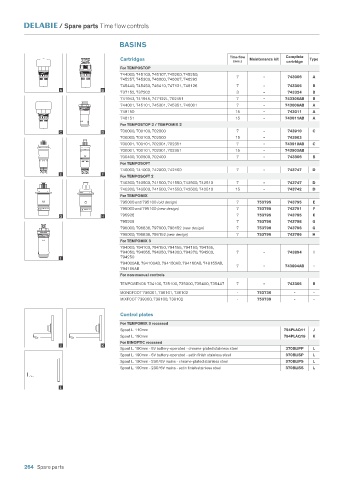

Page 266 - Water_Controls_for_Public-Commercial

/ Spare parts Time flow controls

BASINS

Cartridges Time flow Maintenance kit Complete Type
(sec.)
cartridge
For TEMPOSTOP
744000, 745100, 745107, 745200, 745250, 7 - 743006 A
745257, 745300, 746000, 746007, 746292
745440, 745450, 746410, 747121, 748126 7 - 743306 B
A B
737152, 737202 3 - 743324 B
741943, 741945, 747122L, 702451 7 - 743306AB B
744001, 745101, 745301, 745351, 746001 7 - 743006AB A
748150 15 - 743011 A
748151 15 - 743011AB A
For TEMPOSTOP 2 / TEMPOMIX 2
C D 700000, 700100, 702000 7 - 743910 C
700000, 700100, 702000 15 - 743903
700001, 700101, 702301, 702351 7 - 743910AB C
700001, 700101, 702301, 702351 15 - 743903AB
700400, 700500, 702400 7 - 743306 B
For TEMPOSOFT
740000, 741000, 742000, 742100 7 - 743747 D
E F
For TEMPOSOFT 2
740300, 740500, 741500, 741550, 742500, 742510 7 - 743747 D
740300, 740500, 741500, 741550, 742500, 742510 15 - 743742 D
For TEMPOMIX
795000 and 795100 (old design) 7 753795 743795 E
795000 and 795100 (new design) 7 753795 743791 F
G H 795926 7 753795 743795 E
795209 7 753796 743798 G
796000, 796838, 797000, 798152 (new design) 7 753796 743796 G
796000, 796838, 798152 (new design) 7 753796 743786 H
For TEMPOMIX 3
794000, 794100, 794150, 794155, 794160, 794165,
794050, 794055, 794350, 794360, 794370, 794200, 7 743894 I
I 794250
794000AB, 794100AB, 794150AB, 794160AB, 749155AB,
794165AB 7 - 743894AB -
For non-manual controls
TEMPOGENOU 734100, 735100, 735000, 735400, 735447 7 - 743305 B
MONOFOOT 736001, 736101, 736102 - 753736 - -
MIXFOOT 739000, 739100, 739102 - 753739 - -

Control plates
For TEMPOMIX 3 recessed
Spout L. 110mm 794PLAQ11 J
Spout L. 190mm 794PLAQ19 K
For BINOPTIC recessed
J K
Spout L. 190mm - 6V battery-operated - chrome-plated stainless steel 370BLIPP L
Spout L. 190mm - 6V battery-operated - satin finish stainless steel 370BLISP L
Spout L. 190mm - 230/6V mains - chrome-plated stainless steel 370BLIPS L
Spout L. 190mm - 230/6V mains - satin finish stainless steel 370BLISS L

L

264 Spare parts
