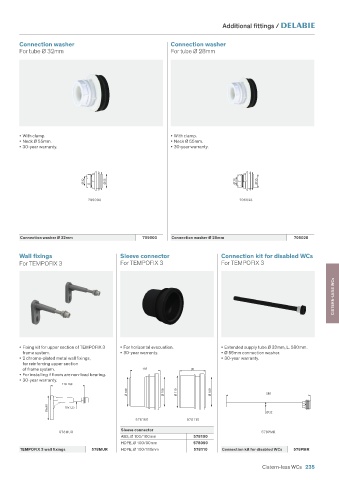

Page 237 - Water_Controls_for_Public-Commercial

Additional fittings /

Connection washer Connection washer
For tube Ø 32mm For tube Ø 28mm

• With clamp. • With clamp.
• Neck Ø 55mm. • Neck Ø 55mm.
• 30-year warranty. • 30-year warranty.

Ø 32 Ø 55 Ø 28 Ø 55

705000 705028

Connection washer Ø 32mm 705000 Connection washer Ø 28mm 705028

Wall fixings Sleeve connector Connection kit for disabled WCs
For TEMPOFIX 3 For TEMPOFIX 3 For TEMPOFIX 3

CISTERN-LESS WCs

• Fixing kit for upper section of TEMPOFIX 3 • For horizontal evacuation. • Extended supply tube Ø 32mm, L. 580mm.
frame system. • 30-year warranty. • Ø 55mm connection washer.
• 2 chrome-plated metal wall fixings, • 30-year warranty.
for reinforcing upper section
of frame system. 105 90
• For installing if floors are non-load bearing.
• 30-year warranty.
118-160
Ø 100 Ø 100 Ø 110 Ø 100 580

85x30 10x1,25 Ø 32

578100 578110
Sleeve connector
578MUR 578PMR
ABS, Ø 100/100mm 578100
HDPE, Ø 100/90mm 578090
TEMPOFIX 3 wall fixings 578MUR HDPE, Ø 100/110mm 578110 Connection kit for disabled WCs 578PMR

Cistern-less WCs 235
