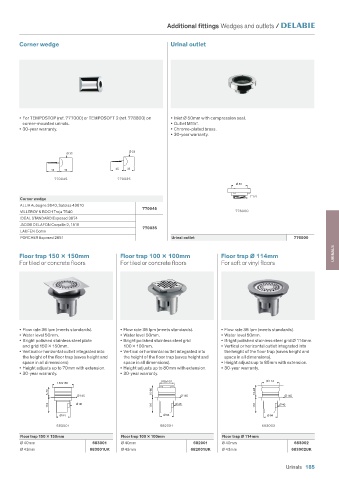

Additional fittings Wedges and outlets /

Corner wedge Urinal outlet

• For TEMPOSTOP (ref. 777000) or TEMPOSOFT 2 (ref. 778800) on • Inlet Ø 50mm with compression seal.
corner-mounted urinals. • Outlet M1¼".
• 30-year warranty. • Chrome-plated brass.
• 30-year warranty.

Ø 33
Ø 33

45 45 45 35
770045 770035
Ø 50
1"1/4
Corner wedge
ALLIA Aubagne 3640, Satolas 43610
770045
VILLEROY & BOCH Troja 7540 776000
IDEAL STANDARD Exposed 3874
JACOB DELAFON Coquille 2, 1516
770035
LAUFEN Como
PORCHER Exposed 2651 Urinal outlet 776000
URINALS
Floor trap 150 150mm Floor trap 100 100mm Floor trap Ø 114mm
For tiled or concrete floors For tiled or concrete floors For soft or vinyl floors

• Flow rate 36 lpm (meets standards). • Flow rate 36 lpm (meets standards). • Flow rate 36 lpm (meets standards).
• Water level 50mm. • Water level 50mm. • Water level 50mm.
• Bright polished stainless steel plate • Bright polished stainless steel grid • Bright polished stainless steel grid Ø 114mm.
and grid 150 150mm. 100 100mm. • Vertical or horizontal outlet integrated into
• Vertical or horizontal outlet integrated into • Vertical or horizontal outlet integrated into the height of the floor trap (saves height and
the height of the floor trap (saves height and the height of the floor trap (saves height and space in all dimensions).
space in all dimensions). space in all dimensions). • Height adjusts up to 85mm with extension.
• Height adjusts up to 70mm with extension. • Height adjusts up to 80mm with extension. • 30-year warranty.
• 30-year warranty. • 30-year warranty.
100x100 Ø 114
150x150
5-70 15-80 10-85
Ø 165 Ø 165 Ø 165
110 Ø 40 110 Ø 40 110 Ø 40
Ø 94 Ø 94 Ø 94

683001 682001 683002
Floor trap 150 150mm Floor trap 100 100mm Floor trap Ø 114mm
Ø 40mm 683001 Ø 40mm 682001 Ø 40mm 683002
Ø 43mm 683001UK Ø 43mm 682001UK Ø 43mm 683002UK
