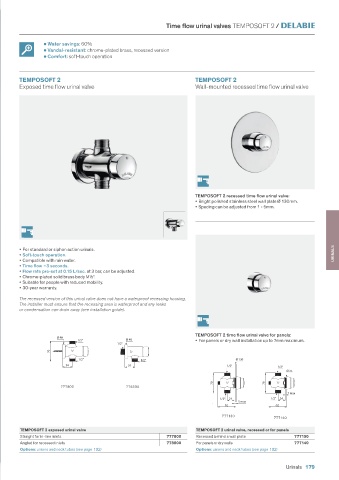

Page 181 - Water_Controls_for_Public-Commercial

Time flow urinal valves TEMPOSOFT 2 /

• Water savings: 60%
• Vandal-resistant: chrome-plated brass, recessed version
• Comfort: soft-touch operation

TEMPOSOFT 2 TEMPOSOFT 2
Exposed time flow urinal valve Wall-mounted recessed time flow urinal valve

TEMPOSOFT 2 recessed time flow urinal valve:
• Bright polished stainless steel wall plate Ø 130mm.
• Spacing can be adjusted from 1 - 5mm.

• For standard or siphon action urinals.
• Soft-touch operation. URINALS
• Compatible with rain water.
• Time flow ~3 seconds.
• Flow rate pre-set at 0.15 L/sec. at 3 bar, can be adjusted.
• Chrome-plated solid brass body M½".
• Suitable for people with reduced mobility.
• 30-year warranty.

The recessed version of this urinal valve does not have a waterproof recessing housing.
The installer must ensure that the recessing area is waterproof and any leaks
or condensation can drain away (see installation guide).

TEMPOSOFT 2 time flow urinal valve for panels:
Ø 48
1/2" Ø 48 • For panels or dry wall installation up to 7mm maximum.
1/2"
70
1/2" 1/2" Ø 130
34 34 1/2" 1/2"
Ø 35
70 70
777800 778800
7 max
1/2" 24 1/2" 24
5 max
62 62
777130
777140
TEMPOSOFT 2 exposed urinal valve TEMPOSOFT 2 urinal valve, recessed or for panels
Straight for in-line inlets 777800 Recessed behind a wall plate 777130
Angled for recessed inlets 778800 For panels or dry walls 777140
Options: unions and neck tubes (see page 182) Options: unions and neck tubes (see page 182)

Urinals 179
