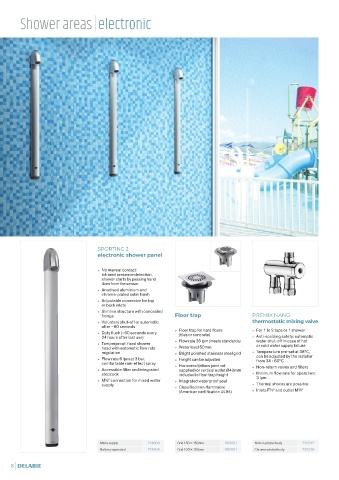

Shower areas electronic

SPORTING 2
electronic shower panel

X No manual contact:
infrared presence detection,
shower starts by passing hand
4cm from the sensor
X Anodised aluminium and
chrome-plated satin finish
X Adjustable connector for top
or back inlets
X Slimline structure with concealed
fixings Floor trap PREMIX NANO
X Voluntary shut-off or automatic thermostatic mixing valve
after ~60 seconds
X Floor trap for hard floors X For 1 to 2 taps or 1 shower
X Duty flush (~60 seconds every (tiles or concrete)
24 hours after last use) X Anti-scalding safety: automatic
X Flow rate 36 lpm (meets standards) water shut-off in case of hot
X Tamperproof, fixed shower or cold water supply failure
head with automatic flow rate X Water level 50mm
regulation X Bright polished stainless steel grid X Temperature pre-set at 38°C,
X Flow rate 6 lpm at 3 bar, X Height can be adjusted can be adjusted by the installer
from 34 - 60°C
comfortable rain-effect spray
X Horizontal (elbow joint not X Non-return valves and filters
X Accessible filter and integrated supplied) or vertical outlet Ø40mm
stopcock included in floor trap height X Minimum flow rate for operation:
X M½" connection for mixed water X Integrated waterproof seal 3 lpm
supply X Thermal shocks are possible
X Classified non-flammable Inlets F / 8" and outlet M / 8"
3
3
(American certification UL94) X

Mains supply 714800 Grid 150 150mm 683001 Nickel-plated body 732012
Battery-operated 714806 Grid 100 100mm 682001 Chrome-plated body 732016
