Page 169 - Accessibility-Hygienic-Accessories

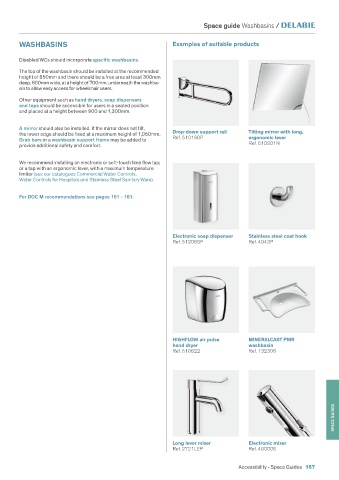

Space guide Washbasins /

WASHBASINS Examples of suitable products

Disabled WCs should incorporate specific washbasins.

The top of the washbasin should be installed at the recommended
height of 850mm and there should be a free area at least 300mm
deep, 600mm wide, at a height of 700mm, underneath the washba-
sin to allow easy access for wheelchair users.
Other equipment such as hand dryers, soap dispensers
and taps should be accessible for users in a seated position
and placed at a height between 900 and 1,300mm.

A mirror should also be installed. If the mirror does not tilt,
the lower edge should be fixed at a maximum height of 1,050mm. Drop-down support rail Tilting mirror with long,
Grab bars or a washbasin support frame may be added to Ref. 510160P ergonomic lever
provide additional safety and comfort. Ref. 510201N

We recommend installing an electronic or soft-touch time flow tap;
or a tap with an ergonomic lever, with a maximum temperature
limiter (see our catalogues Commercial Water Controls,
Water Controls for Hospitals and Stainless Steel Sanitary Ware).

For DOC M recommendations see pages 151 - 161.

Electronic soap dispenser Stainless steel coat hook
Ref. 512066P Ref. 4043P

HIGHFLOW air pulse MINERALCAST PMR
hand dryer washbasin
Ref. 510622 Ref. 132306

SPACE GUIDES

Long lever mixer Electronic mixer
Ref. 2721LEP Ref. 490006

Accessibility - Space Guides 167
