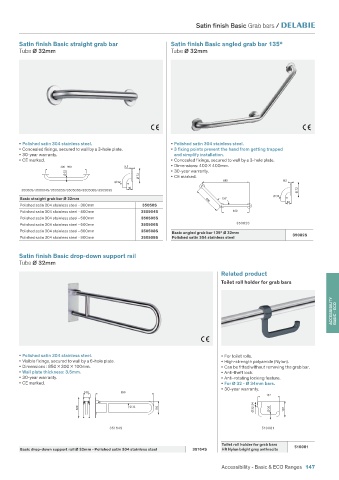

Page 149 - Accessibility-Hygienic-Accessories

Satin finish Basic Grab bars /

Satin finish Basic straight grab bar Satin finish Basic angled grab bar 135°
Tube Ø 32mm Tube Ø 32mm

• Polished satin 304 stainless steel. • Polished satin 304 stainless steel.
• Concealed fixings, secured to wall by a 3-hole plate. • 3 fixing points prevent the hand from getting trapped
• 30-year warranty. and simplify installation.
• CE marked. • Concealed fixings, secured to wall by a 3-hole plate.
300 - 900 8,5 • Dimensions: 400 400mm.
Ø 32 • 30-year warranty.
Ø 72 • CE marked.
680 8,5
Ø 32
40
35050S/350504S/350505S/350506S/350508S/350509S Ø 72
Ø 32
Basic straight grab bar Ø 32mm 400 135°
40
Polished satin 304 stainless steel - 300mm 35050S
Polished satin 304 stainless steel - 400mm 350504S 400
Polished satin 304 stainless steel - 500mm 350505S
Polished satin 304 stainless steel - 600mm 350506S 35082S
Polished satin 304 stainless steel - 800mm 350508S Basic angled grab bar 135° Ø 32mm
Polished satin 304 stainless steel - 900mm 350509S Polished satin 304 stainless steel 35082S

Satin finish Basic drop-down support rail
Tube Ø 32mm
Related product
Toilet roll holder for grab bars

ACCESSIBILITY BASIC - ECO

• Polished satin 304 stainless steel. • For toilet rolls.
• Visible fixings, secured to wall by a 6-hole plate. • High-strength polyamide (Nylon).
• Dimensions : 850 300 100mm. • Can be fitted without removing the grab bar.
• Wall plate thickness: 3.5mm. • Anti-theft lock.
• 30-year warranty. • Anti-rotating locking feature.
• CE marked. • For Ø 32 - Ø 34mm bars.
• 30-year warranty.
100 850
152
300 Ø 32 195 Ø 32-34 Ø 20 107

35164S 510081

Toilet roll holder for grab bars
Basic drop-down support rail Ø 32mm - Polished satin 304 stainless steel 35164S HR Nylon bright grey anthracite 510081

Accessibility - Basic & ECO Ranges 147
