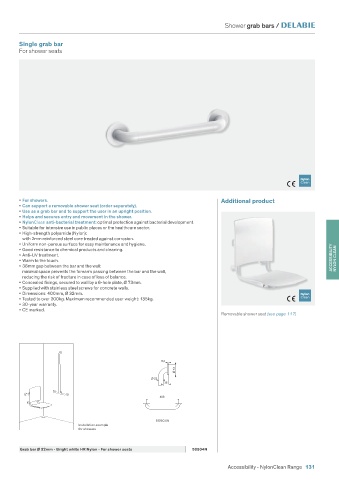

Page 133 - Accessibility-Hygienic-Accessories

Shower grab bars /

Single grab bar
For shower seats

• For showers. Additional product
• Can support a removable shower seat (order separately).
• Use as a grab bar and to support the user in an upright position.
• Helps and secures entry and movement in the shower.
• NylonClean anti-bacterial treatment: optimal protection against bacterial development.
• Suitable for intensive use in public places or the healthcare sector.
• High-strength polyamide (Nylon):
with 2mm reinforced steel core treated against corrosion.
• Uniform non-porous surface for easy maintenance and hygiene.
• Good resistance to chemical products and cleaning.
• Anti-UV treatment. ACCESSIBILITY
• Warm to the touch. NYLON CLEAN
• 38mm gap between the bar and the wall:
minimal space prevents the forearm passing between the bar and the wall,
reducing the risk of fracture in case of loss of balance.
• Concealed fixings, secured to wall by a 6-hole plate, Ø 73mm.
• Supplied with stainless steel screws for concrete walls.
• Dimensions: 400mm, Ø 32mm.
• Tested to over 200kg. Maximum recommended user weight: 135kg.
• 30-year warranty.
• CE marked.
Removable shower seat (see page 117)

8,5
Ø 73
Ø 32
38

400

50504N
Installation example
for showers

Grab bar Ø 32mm - Bright white HR Nylon - For shower seats 50504N

Accessibility - NylonClean Range 131
