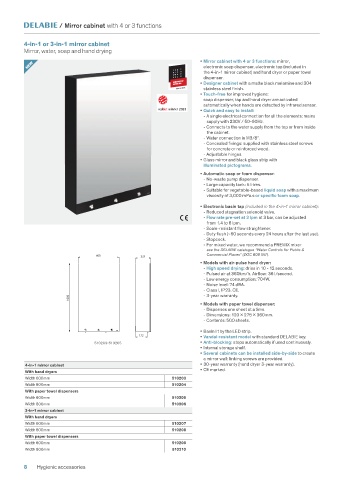

/ Mirror cabinet with 4 or 3 functions

4-in-1 or 3-in-1 mirror cabinet
Mirror, water, soap and hand drying

NEW • Mirror cabinet with 4 or 3 functions: mirror,
electronic soap dispenser, electronic tap (included in
the 4-in-1 mirror cabinet) and hand dryer or paper towel
dispenser.
• Designer cabinet with a matte black melamine and 304
stainless steel finish.
• Touch-free for improved hygiene:
soap dispenser, tap and hand dryer are activated
automatically when hands are detected by infrared sensor.
• Quick and easy to install:
- A single electrical connection for all the elements: mains
supply with 230V / 50 60Hz.
- Connects to the water supply from the top or from inside
the cabinet.
- Water connection in M3/8".
- Concealed fixings: supplied with stainless steel screws
for concrete or reinforced wood.
- Adjustable hinges.
• Glass mirror and black glass strip with
illuminated pictograms.
• Automatic soap or foam dispenser:
- No-waste pump dispenser.
- Large capacity tank: 5 litres.
- Suitable for vegetable-based liquid soap with a maximum
viscosity of 3,000 mPa.s or specific foam soap.

• Electronic basin tap (included in the 4-in-1 mirror cabinet):
- Reduced stagnation solenoid valve.
- Flow rate pre-set at 3 lpm at 3 bar, can be adjusted
from 1.4 to 6 lpm.
- Scale-resistant flow straightener.
- Duty flush (~60 seconds every 24 hours after the last use).
- Stopcock.
- For mixed water, we recommend a PREMIX mixer
see the DELABIE catalogue "Water Controls for Public &
600 223 Commercial Places" (DOC 609 INT).
• Models with air-pulse hand dryer:
- High speed drying: dries in 10 - 12 seconds.
- Pulsed air at 360km/h. Airflow: 36 l/second.
- Low energy consumption: 704W.
- Noise level: 74 dBA.
- Class I, IP23. CE.
1000 - 3-year warranty.
• Models with paper towel dispenser:
- Dispenses one sheet at a time.
- Dimensions: 120 275 360mm.
- Contents: 500 sheets.

• Basin lit by the LED strip.
172 • Vandal-resistant model with standard DELABIE key.
510203 510205 • Anti-blocking: stops automatically if used continuously.
• Internal storage shelf.

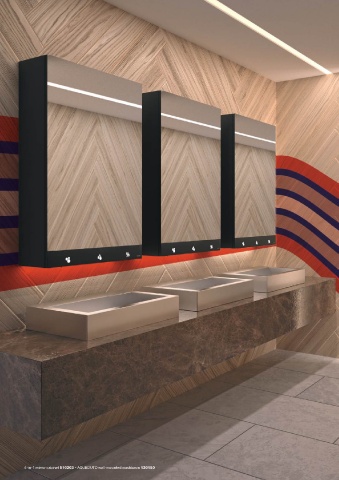

• Several cabinets can be installed side-by-side to create
a mirror wall: linking screws are provided.
4-in-1 mirror cabinet • 30-year warranty (hand dryer 3-year warranty).
• CE marked.
With hand dryers
Width 600mm 510203
Width 800mm 510204
With paper towel dispensers
Width 600mm 510205
Width 800mm 510206
3-in-1 mirror cabinet
With hand dryers
Width 600mm 510207
Width 800mm 510208
With paper towel dispensers
Width 600mm 510209
Width 800mm 510210
