Solenoid valve

Ref. 479651
For washbasin controls TEMPOMATIC 3 (previous model)
Solenoid valve

Presentation

DESCRIPTION

Solenoid valve

Ref. 479651

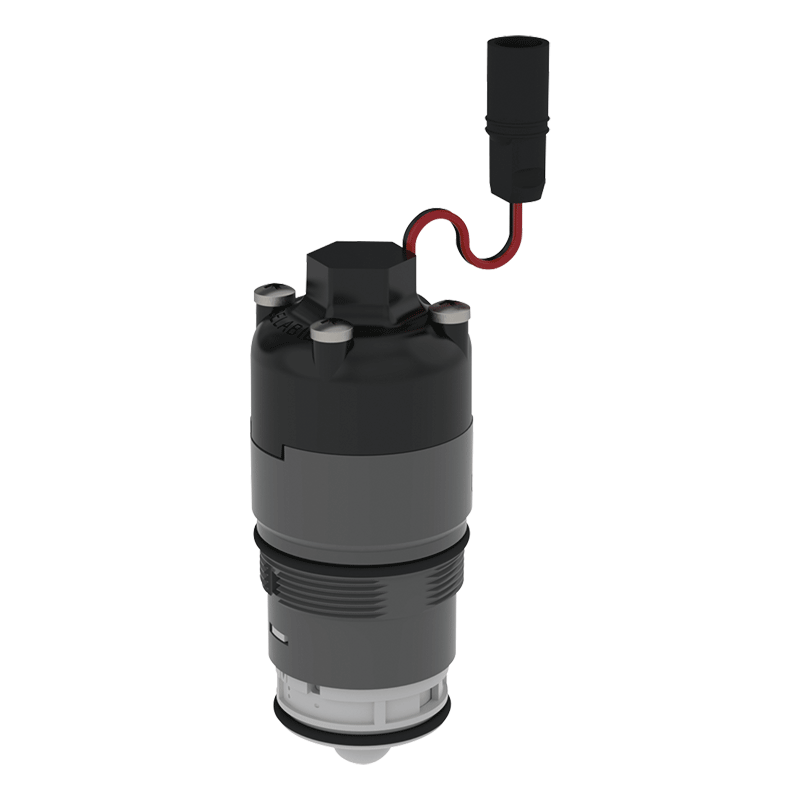

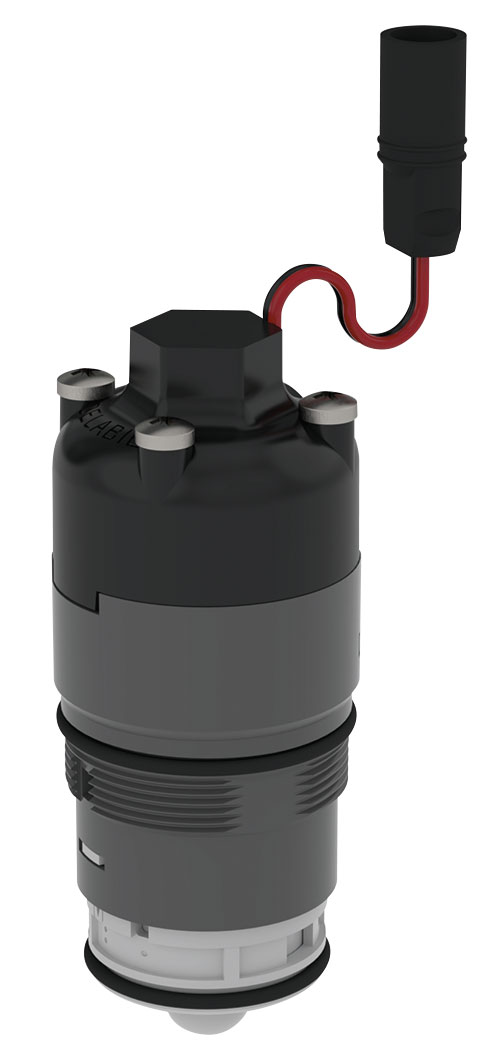

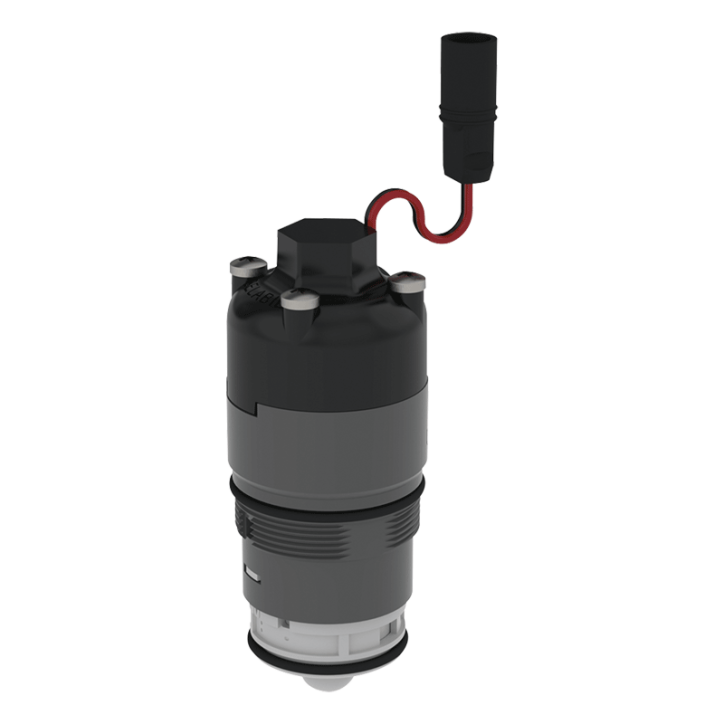

Piston operated solenoid valve with flow rate adjustor.
For TEMPOMATIC 3 washbasin controls (previous model).
Works with a 6V power supply.
Dimensions: 35 x 38mm, M28 x 1,0.

ADVANTAGES

Hygiène - Anti-bactérien - BIOSAFE

Anti-stagnation solenoid valve

Maintenance aisée - Installation aisée

Easy to maintain

Universel

TEMPOMATIC 3 product range

Characteristics

TECHNICAL CHARACTERISTICS

Solenoid valve

Ref. 479651
Supply 6V

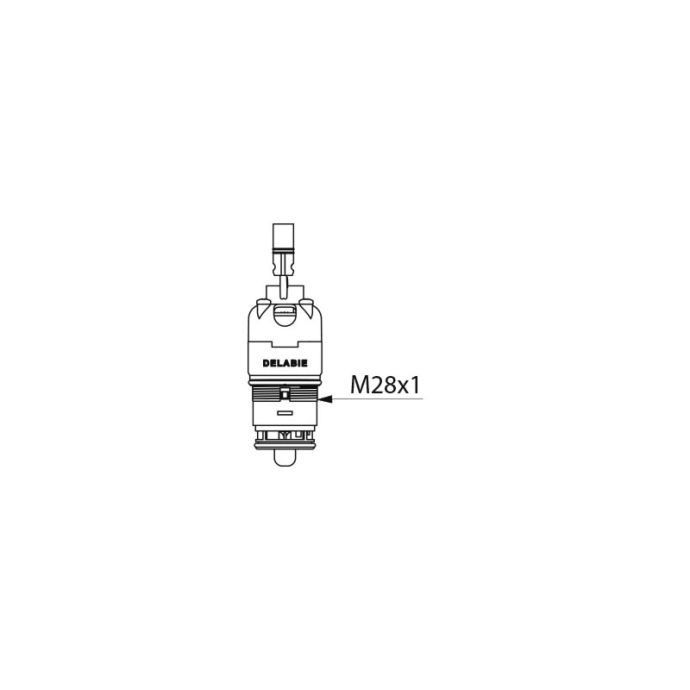

Connector M28 x 1,0
Height 38mm + 35mm
Diameter Ø 28mm
Solenoid valve
Ref. 479651

Downloads

DOWNLOADS

Solenoid valve

Ref. 479651

To download one or several documents linked to this product, please select the type of file you require :
