TEMPOCHASSE direct flush valve

Ref. 760110
Direct flush WC valve

Presentation

DESCRIPTION

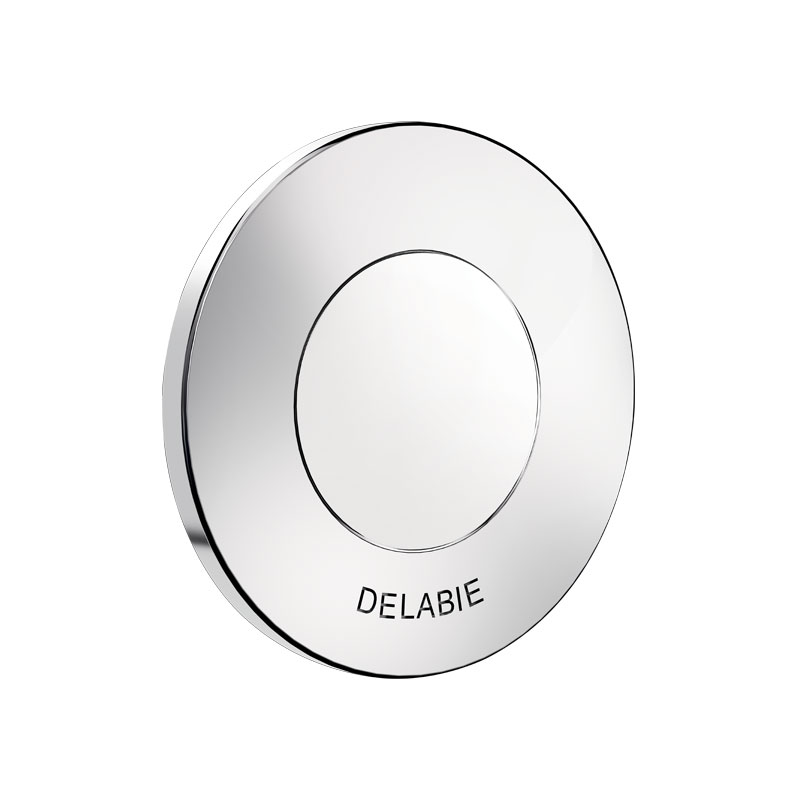

TEMPOCHASSE direct flush valve

Ref. 760110
Flush system without cistern: directly connected to pipework.
For walls ≤ 200mm.
Time flow ~7 seconds.
Vacuum breaker.
Inline stopcock and flow rate/volume adjuster.
Chrome-plated metal body.
Shock-resistant mechanism.
Inline inlet F1".
Connection washer Ø 32/55mm.
Threaded rod can be cut to size.
Base flow rate: 1 l/sec at 1 bar dynamic pressure.
Compatible with rain water.
30-year warranty.

[Formerly ref: 760150]

ADVANTAGES

Hygiène - Anti-bactérien - BIOSAFE

No cistern: no stagnant water

Anti-vandalisme

Cross wall installation

Endurance - Fiabilité

Powerful flush is immediately available

Economie d'eau

Direct flush reduces the risk of leaks

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOCHASSE direct flush valve

Ref. 760110
Connector 1"
Length 200mm
Certificates Logo Belgaqua
Warranty 30-Year
TEMPOCHASSE direct flush valve
Ref. 760110

Downloads

DOWNLOADS

Système de chasse d'eau TEMPOCHASSE

Ref. 760110

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

761110 Valve only - Time flow ~7 secs, for walls ≤ 200mm, M3/4"
761210 Kit with valve & PVC flush tube, inline inlet M3/4"
760210

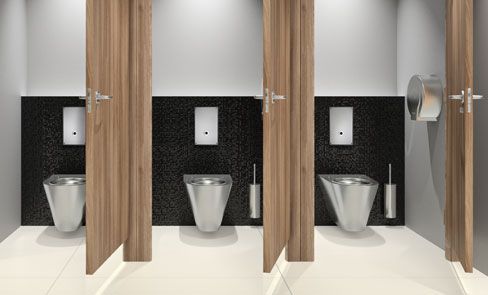

WC direct flush system, a public revolution
