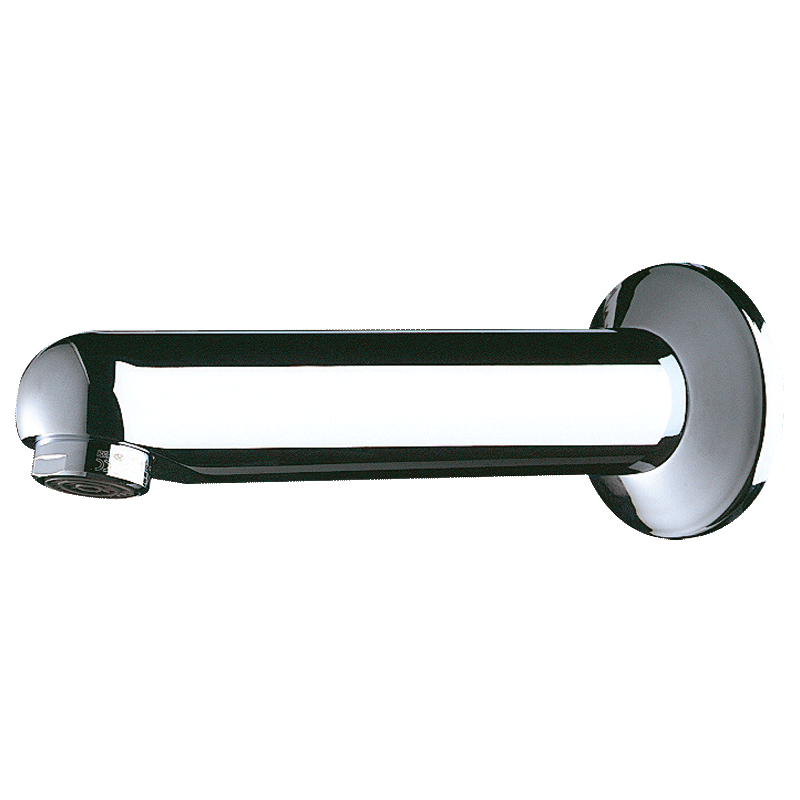

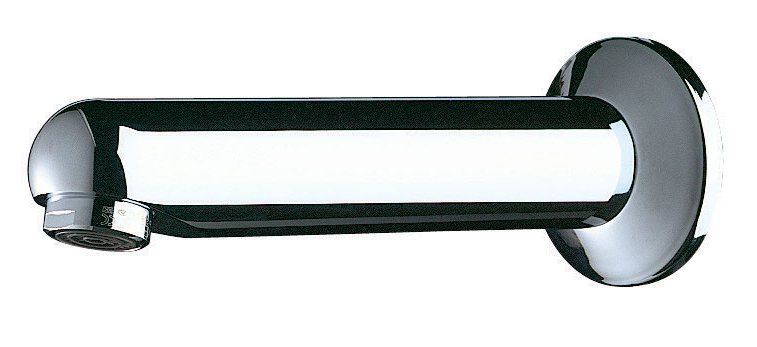

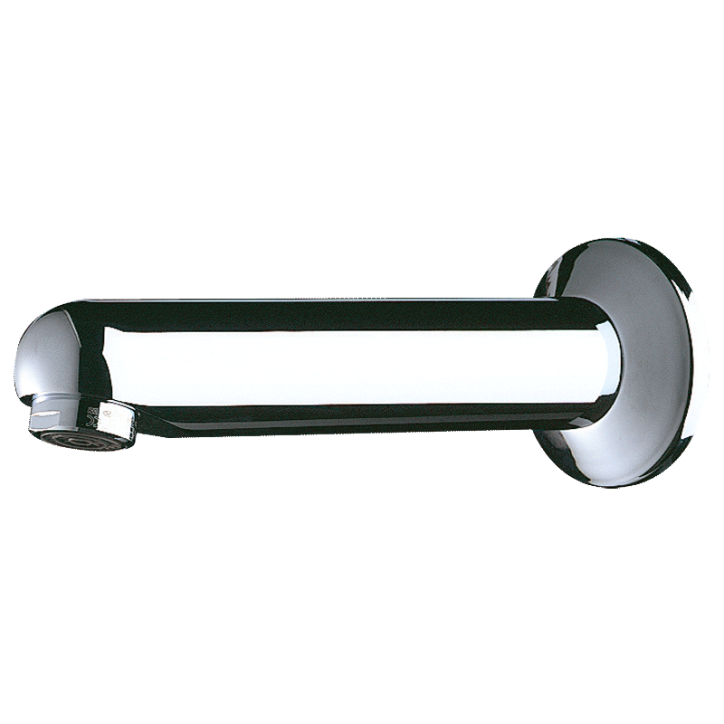

Fixed spout with plate

Ref. 947157
L. 170mm
Fixed spout with plate

Presentation

DESCRIPTION

Fixed spout with plate

Ref. 947157

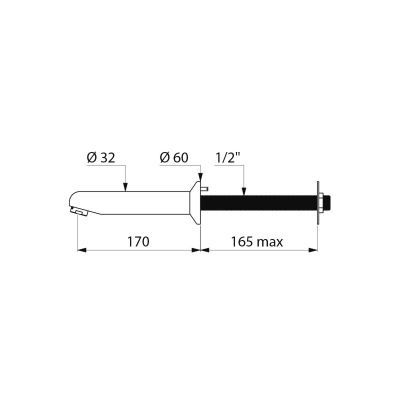

Spout Ø 32mm, M½".
L. 170mm.

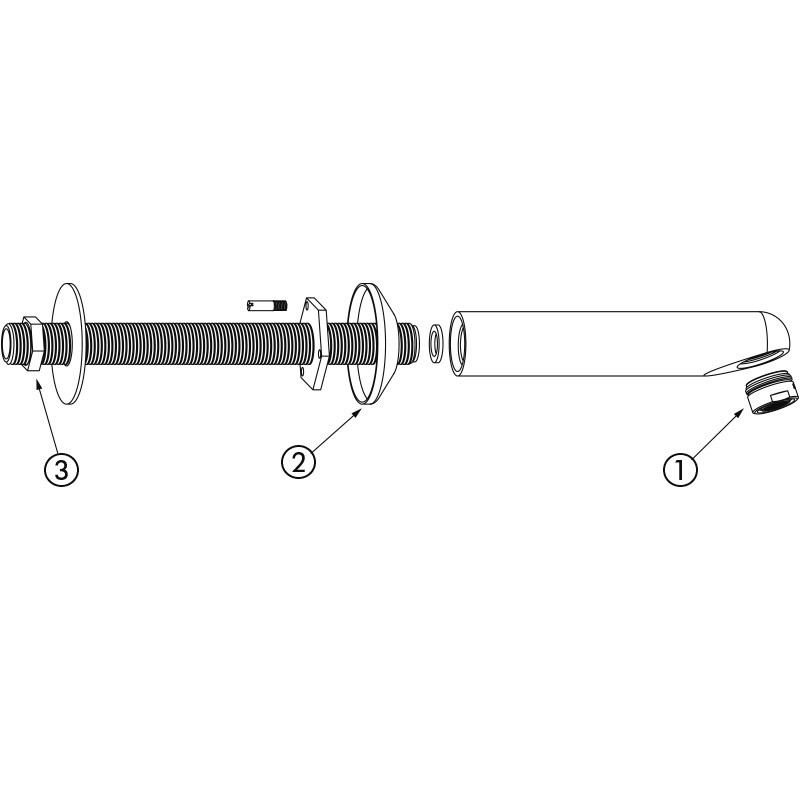

For cross wall installation for walls ≤ 165mm, with anti-rotating pin.
Threaded rod can be cut-to-size.
Chrome-plated solid brass.
Scale-resistant flow straightener regulated at 3 lpm.
30-year warranty.

ADVANTAGES

Economie d'eau

3 lpm

Anti-vandalisme

Cross wall installation

Characteristics

TECHNICAL CHARACTERISTICS

Fixed spout with plate

Ref. 947157
Connector M½"
Length 165mm
Spout length 170mm
Flow rate 3 lpm
Certificates ACS Logo PZH Logo WRAS
Warranty 30-Year

Downloads

DOWNLOADS

Bec fixe avec rosace

Ref. 947157

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

947151 Cross wall spout for recessed inlet - with escutcheon - L. 120mm
947120 Wall-mounted spout for recessed inlet - L. 110mm
947170 Wall-mounted spout for recessed inlet - L. 160mm
947135 Wall-mounted spout for recessed inlet - with escutcheon - L. 120mm
