DESCRIPTION

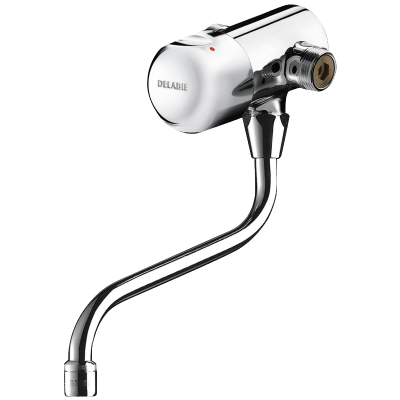

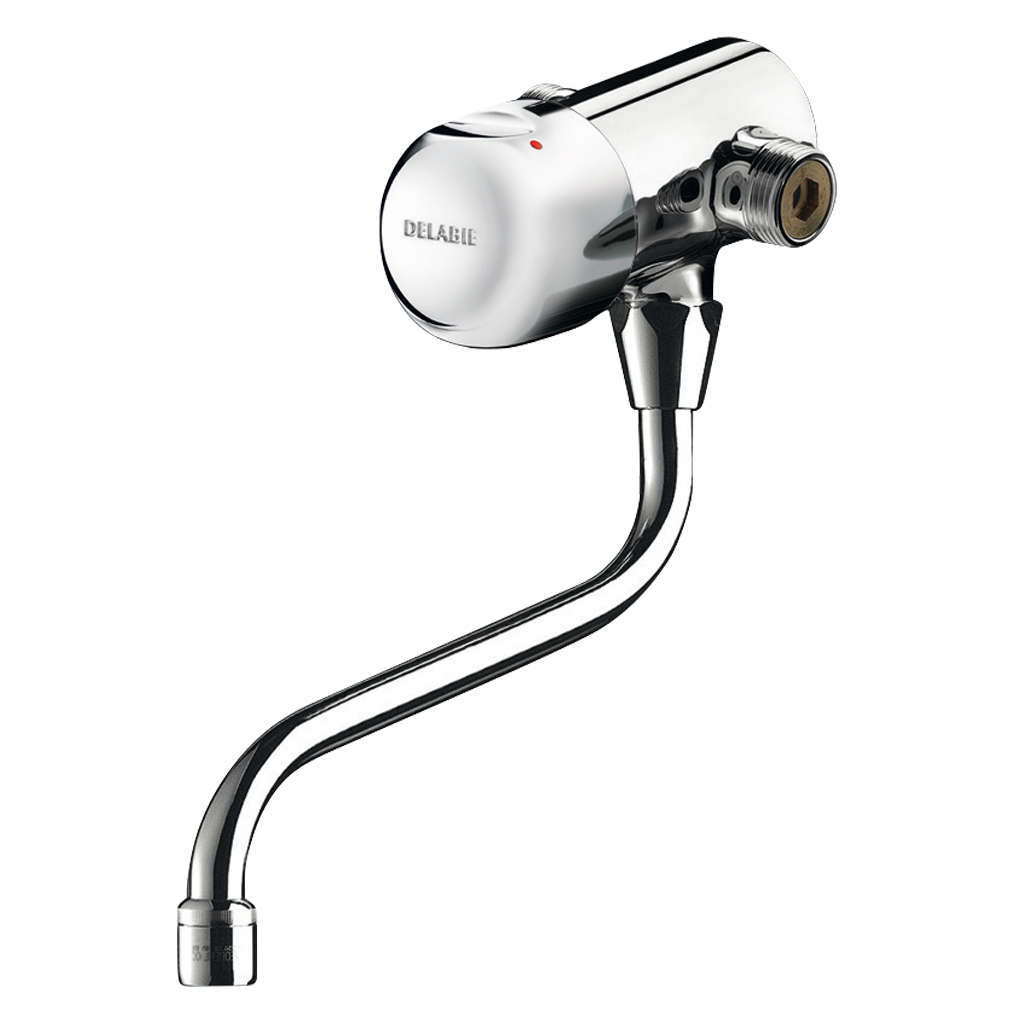

TEMPOMIX time flow mixer
Ref. 798152Wall-mounted single control time flow basin mixer:
Soft-touch operation.
Temperature control and operation via the push-button.
Time flow ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Solid chrome-plated brass body M¾".
Filters and non-return valves, elbow unions M½".
Adjustable maximum temperature limiter.
Swivelling spout.
Chrome-plated metal control.
30-year warranty.
Soft-touch operation.
Temperature control and operation via the push-button.
Time flow ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Solid chrome-plated brass body M¾".
Filters and non-return valves, elbow unions M½".
Adjustable maximum temperature limiter.
Swivelling spout.
Chrome-plated metal control.
30-year warranty.
ADVANTAGES
Exceptional water savings: 85%
Soft-touch operation
Chrome-plated brass
Temperature selection

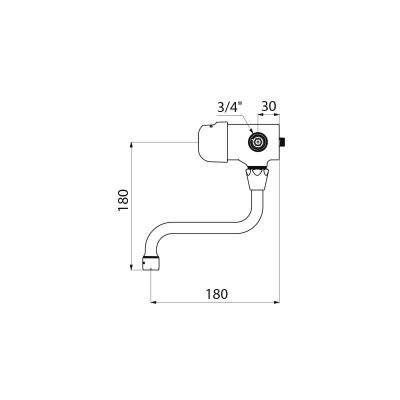

TECHNICAL CHARACTERISTICS
TEMPOMIX time flow mixer
Ref. 798152Connector | M3/4" |
Technology | Time flow |
Height | 180mm |
Spout length | 180mm |
Flow rate | 3 lpm |
Certificates | |
Warranty |
