TEMPOMIX time flow mixer

Ref. 795209
TEMPOMIX time flow mixer

Presentation

DESCRIPTION

TEMPOMIX time flow mixer

Ref. 795209
Cross wall single control time flow basin mixer:
Soft-touch operation.
Temperature control and operation via the push-button.
Time flow ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Chrome-plated solid brass body M¾".
Filters and non-return valves.
Adjustable maximum temperature limiter.
Tamperproof cross wall control ≤ 220mm.
Tamperproof fixed cross wall spout ≤ 230mm.
System for fixing to the wall via anti-rotating pin, back-nut and connection clamp.
Threaded rods can be cut-to-size.
Chrome-plated metal control.
30-year warranty.

ADVANTAGES

Economie d'eau

Exceptional water savings: 85%

Confort - Ergonomie - Déclenchement souple

Soft-touch operation

Anti-vandalisme

Solid brass, installation behind partition

Confort - Ergonomie - Déclenchement souple

Temperature selection

Characteristics

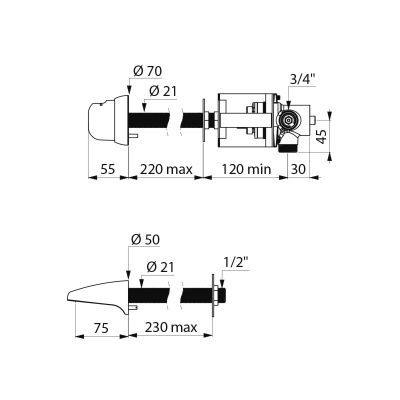

TECHNICAL CHARACTERISTICS

TEMPOMIX time flow mixer

Ref. 795209
Connector M¾"
Technology Time flow
Length 230mm
Spout length 75mm
Flow rate 3 lpm
Certificates ACS Logo PZH Logo DoP
Warranty 30-Year

Downloads

DOWNLOADS

TEMPOMIX time flow mixer

Ref. 795209

To download one or several documents linked to this product, please select the type of file you require :
