TEMPOMIX time flow mixer

Ref. 79500015
With stopcocks
TEMPOMIX time flow mixer

Presentation

DESCRIPTION

TEMPOMIX time flow mixer

Ref. 79500015
Deck-mounted single control time flow basin mixer:
Soft-touch operation.
Temperature control and operation via the push-button.
Time flow ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Chrome-plated solid brass body.
PEX flexibles Ø 15mm for compression fittings with stopcocks, filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Adjustable maximum temperature limiter.
Ergonomic chrome-plated metal push-button.
30-year warranty.

ADVANTAGES

Economie d'eau

Exceptional water savings: 85%

Confort - Ergonomie - Déclenchement souple

Soft-touch operation

Anti-vandalisme

Chrome-plated solid brass, reinforced fixings

Characteristics

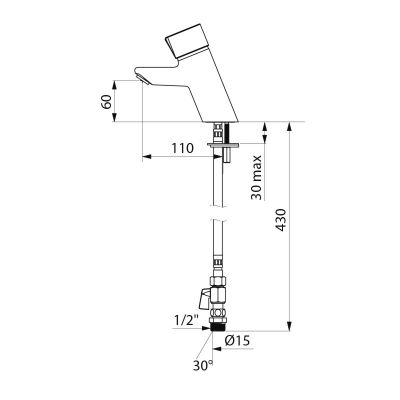

TECHNICAL CHARACTERISTICS

TEMPOMIX time flow mixer

Ref. 79500015
Connector M1/2'' Ø 15mm
Technology Time flow
Drop height 60mm
Spout length 110mm
Flow rate 3 lpm
Certificates Logo WRAS
Warranty 30-Year
TEMPOMIX time flow mixer
Ref. 79500015

Downloads

DOWNLOADS

Mitigeur temporisé TEMPOMIX

Ref. 79500015

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

795000 With stopcocks
795100 Without stopcock
79500015CO With stopcock - Copper tails - Ø 15mm compression fittings
