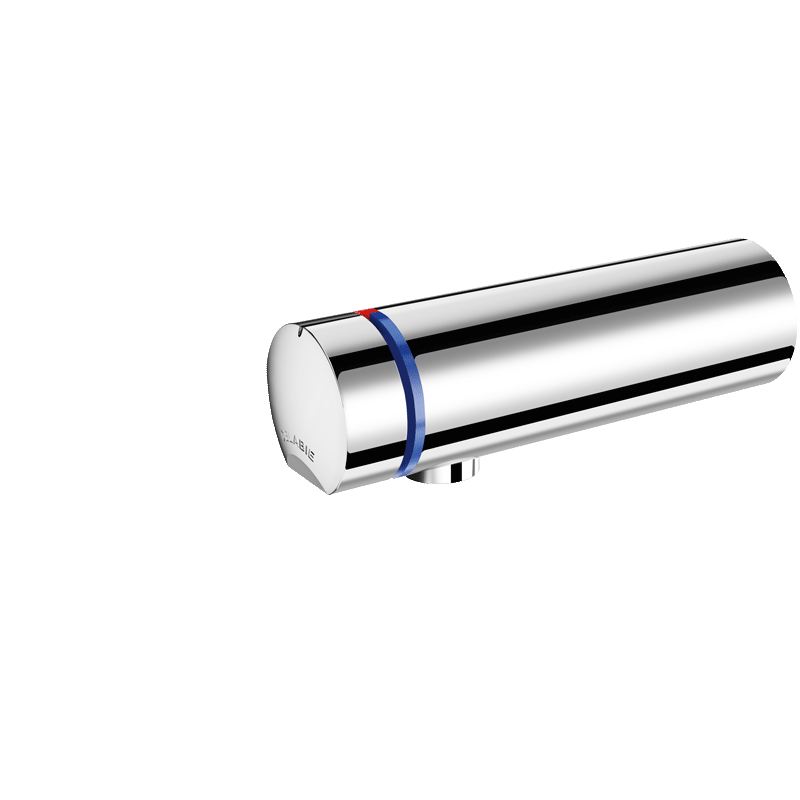

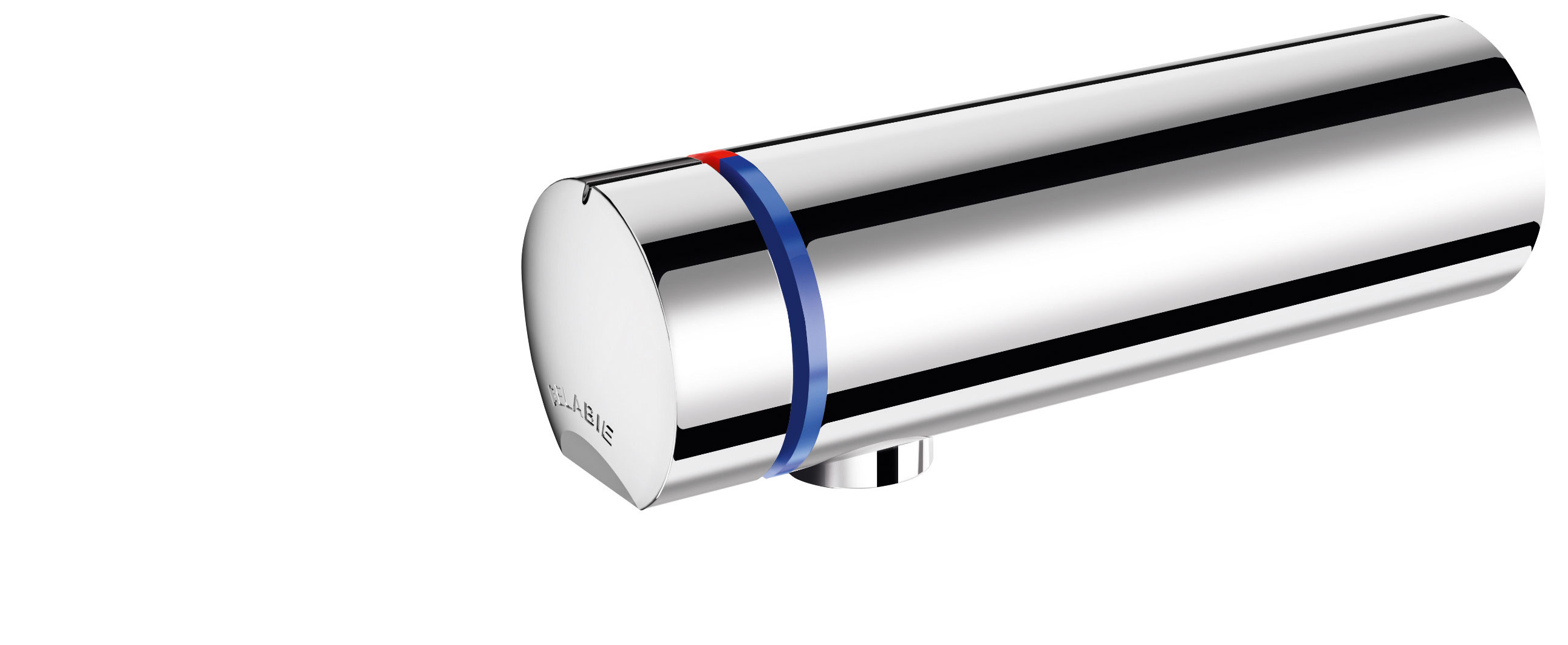

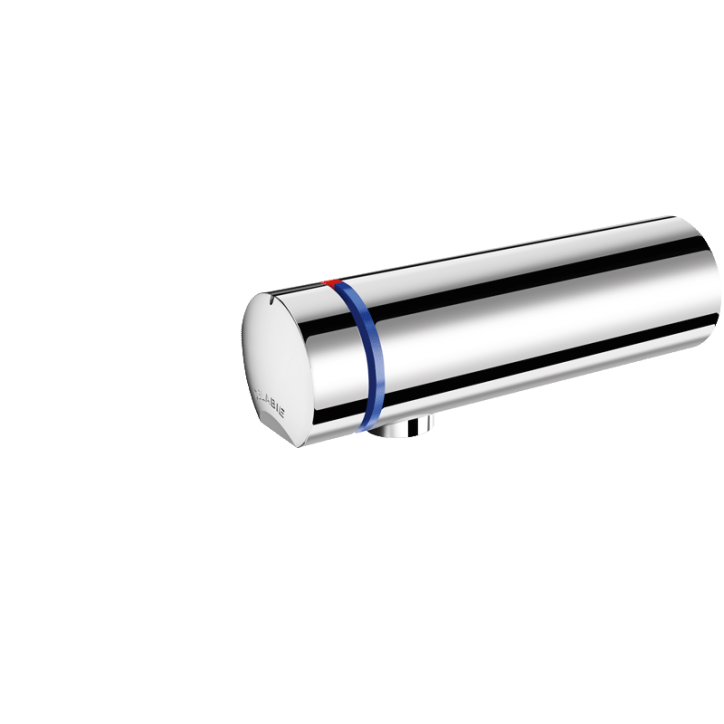

TEMPOMIX 3 time flow mixer

Ref. 794160
Soft-touch operation, stopcocks
TEMPOMIX 3 time flow mixer

Presentation

DESCRIPTION

TEMPOMIX 3 time flow mixer

Ref. 794160
Wall-mounted single control time flow basin mixer:
Soft-touch operation.
Temperature control and operation via the push-button.
Time flow pre-set at ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Tamperproof, scale-resistant flow straightener.
Chrome-plated solid brass body L. 110mm.

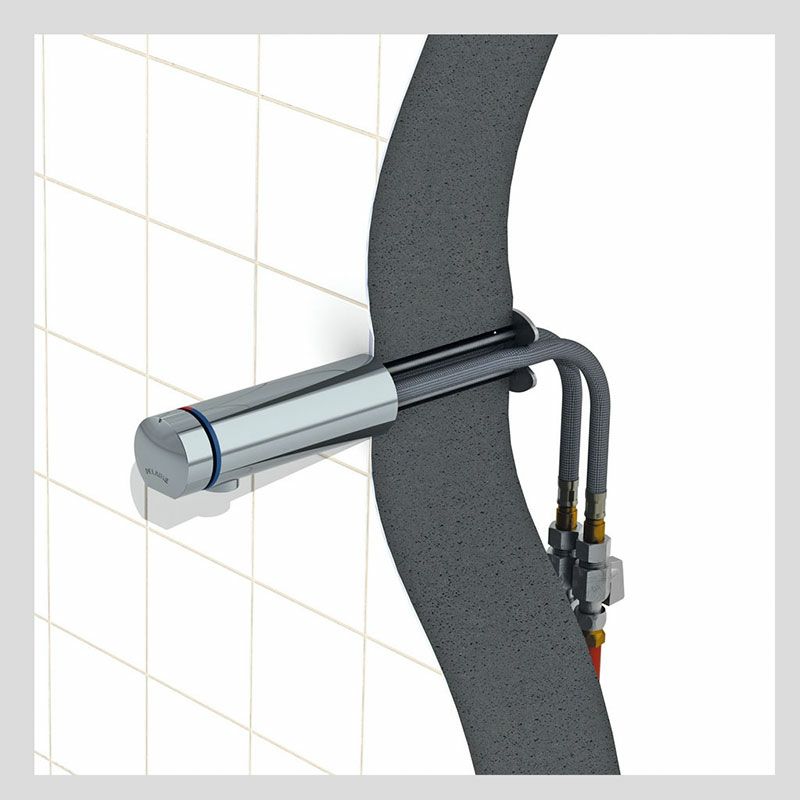

For cross wall installation.
PEX flexibles F3/8" with stopcocks, filters and non-return valves.
Adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Economie d'eau

Exceptional water savings: 85%

Confort - Ergonomie - Déclenchement souple

Soft-touch operation

Anti-vandalisme

Solid brass; install behind the partition

Design

Sleek design

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOMIX 3 time flow mixer

Ref. 794160

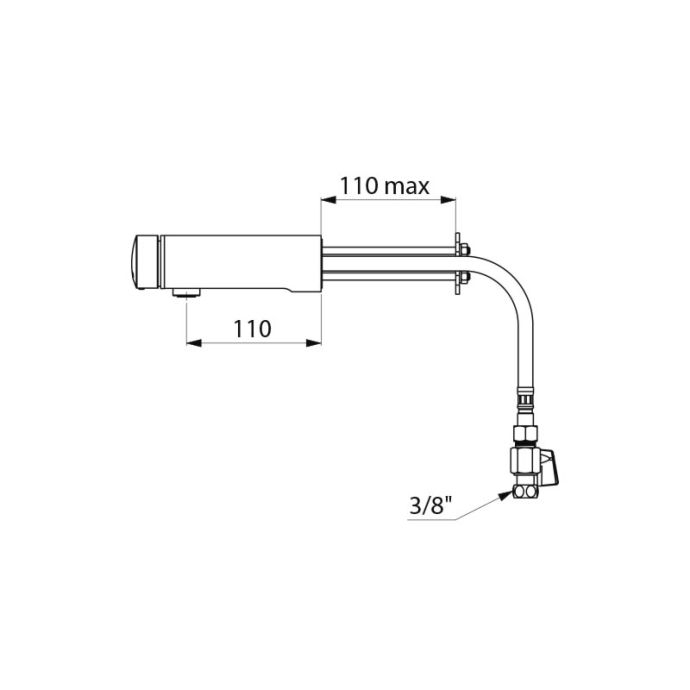

Connector F3/8"
Technology Time flow
Spout length 110mm
Flow rate 3 lpm
Certificates ACS Logo Belgaqua Logo WRAS Logo DoP Logo PZH
Warranty 30-Year
TEMPOMIX 3 time flow mixer
Ref. 794160

Downloads

DOWNLOADS

Mitigeur de lavabo temporisé TEMPOMIX 3

Ref. 794160

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

794050 Wall-mounted, recessed inlets - L. 110mm - without stopcock
794055 Wall-mounted, recessed inlets - L. 190mm - without stopcock
794165 Cross wall - L. 190mm - with stopcock
