DESCRIPTION

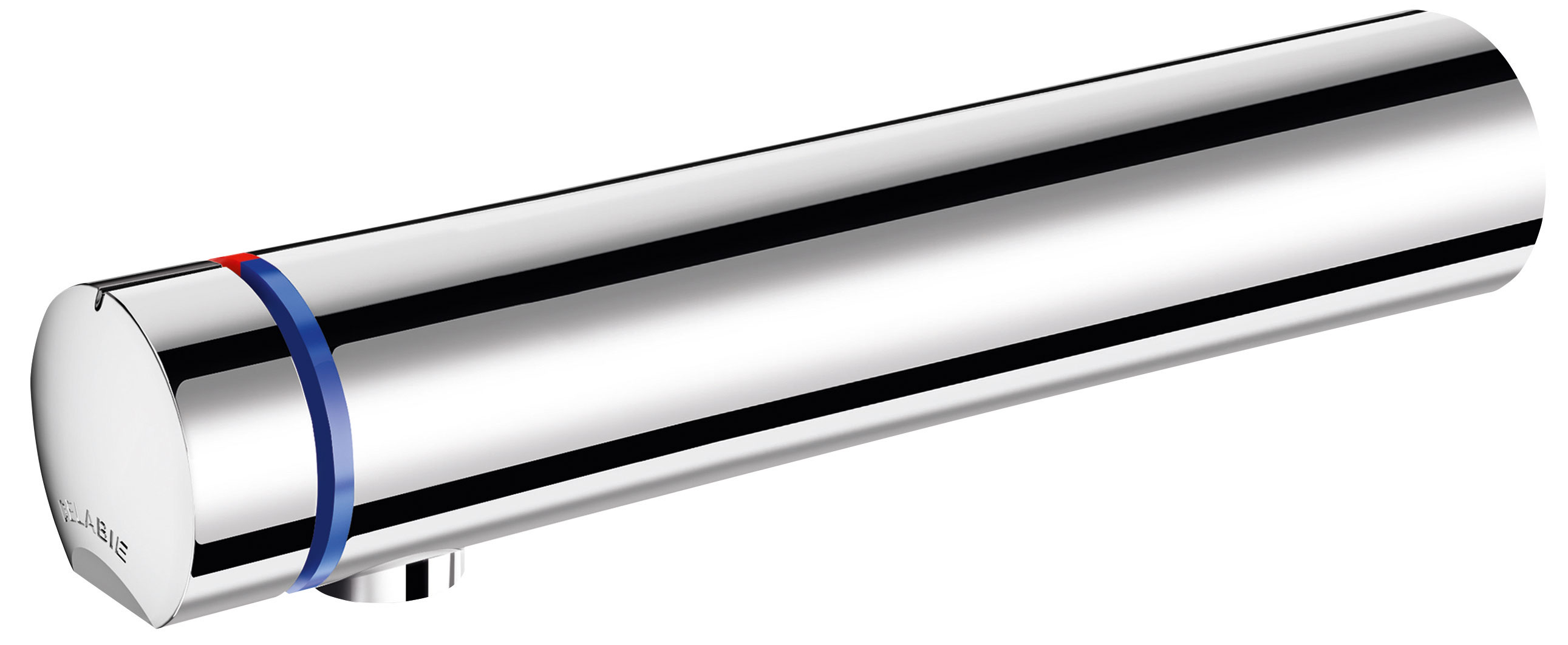

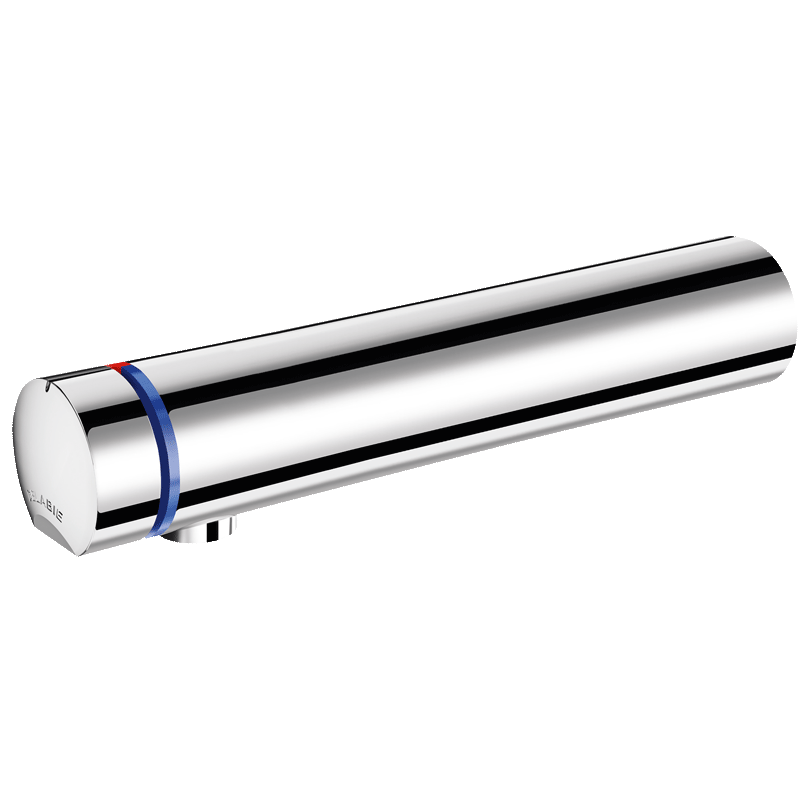

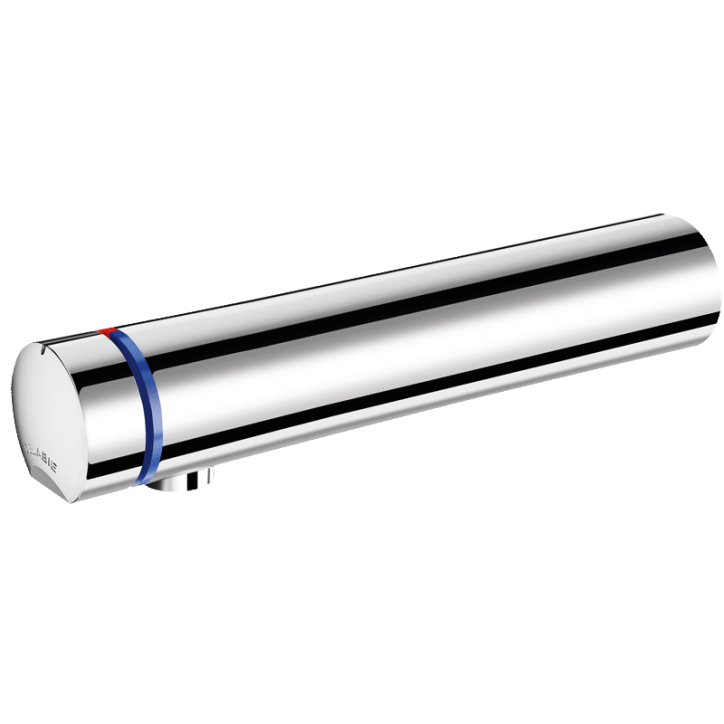

TEMPOMIX 3 time flow mixer
Ref. 794055Wall-mounted single control time flow basin mixer:
Soft-touch operation.
Temperature control and operation via the push-button.
Time flow pre-set at ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Tamperproof, scale-resistant flow straightener.

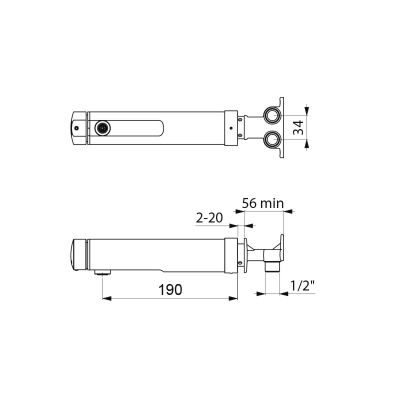

Chrome-plated solid brass body L. 190mm.
Wall-mounted M½".
Top or bottom supply.

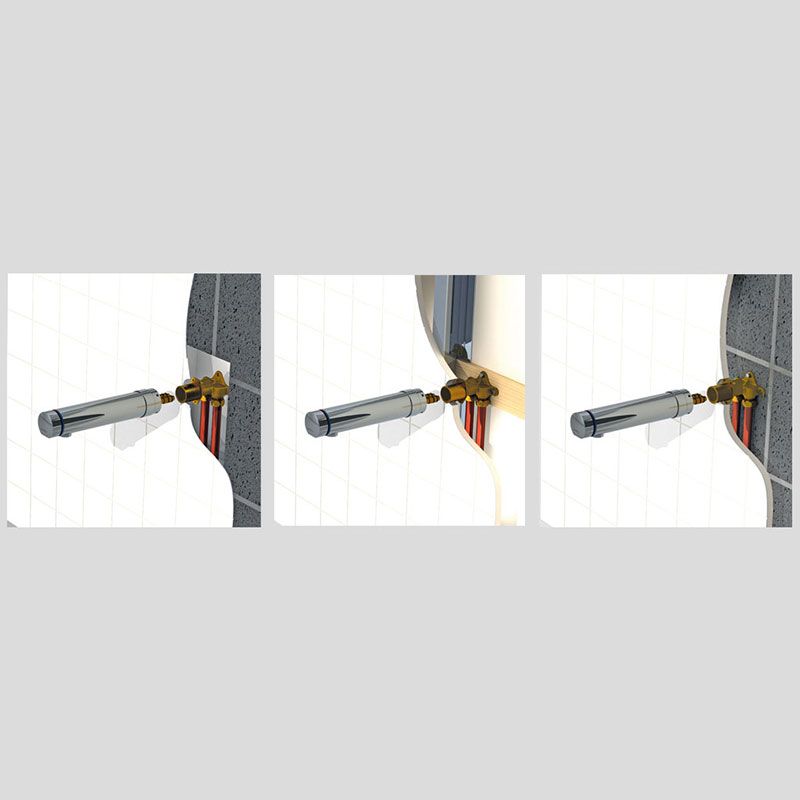

Recessed inlets.
Filters and non-return valves.
Adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
Soft-touch operation.
Temperature control and operation via the push-button.
Time flow pre-set at ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Tamperproof, scale-resistant flow straightener.
Chrome-plated solid brass body L. 190mm.
Wall-mounted M½".
Top or bottom supply.
Recessed inlets.
Filters and non-return valves.
Adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
Exceptional water savings: 85%
Soft-touch operation
Sleek design
TECHNICAL CHARACTERISTICS
TEMPOMIX 3 time flow mixer
Ref. 794055| Connector | M½" |
| Technology | Time flow |
| Spout length | 190mm |
| Flow rate | 3 lpm |
| Certificates |
|
| Warranty |
|
VARIANTS
| 794050 | Wall-mounted, recessed inlets - L. 110mm - without stopcock | ||
|---|---|---|---|
| 794160 | Cross wall - L. 110mm - with stopcock | ||
| 794165 | Cross wall - L. 190mm - with stopcock |

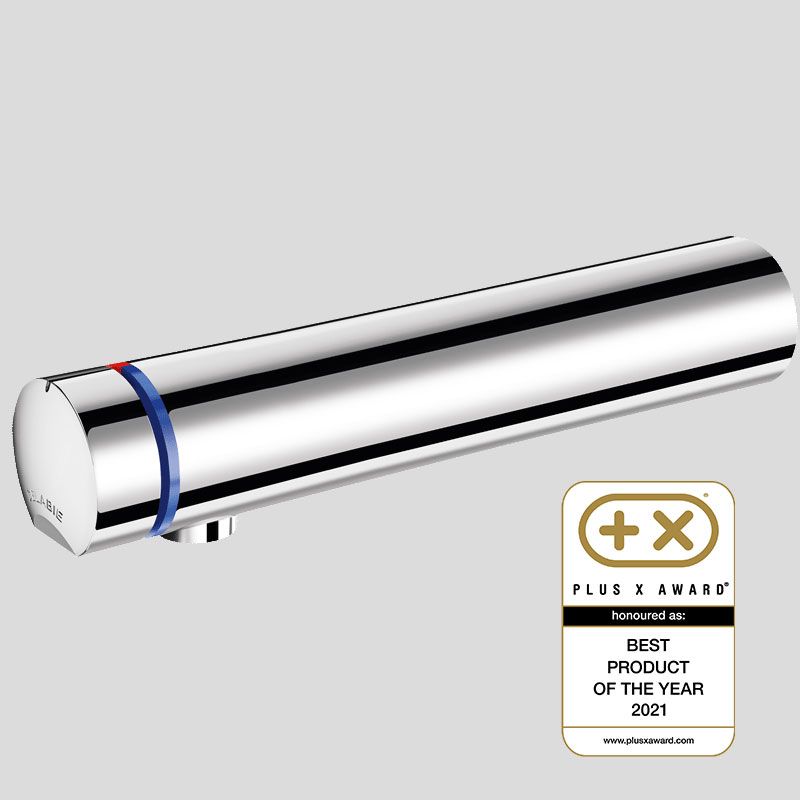

Winner at the international innovation competition: Plus X Award
Over 85% water savings with the TEMPOMIX 3
Associated products
Wall-mounted liquid soap dispenser, 1 litre
Liquid soap or hydroalcoholic gel dispenser
Ref. 510580
PREMIX NANO thermostatic mixing valve
For mixed water from 34 - 60°C
Ref. 732116
ON/OFF waste
Washbasin waste 1¼"
Ref. 581000
VARIANTS
| 794050 | Wall-mounted, recessed inlets - L. 110mm - without stopcock | ||
|---|---|---|---|
| 794160 | Cross wall - L. 110mm - with stopcock | ||
| 794165 | Cross wall - L. 190mm - with stopcock |
Winner at the international innovation competition: Plus X Award
Over 85% water savings with the TEMPOMIX 3
