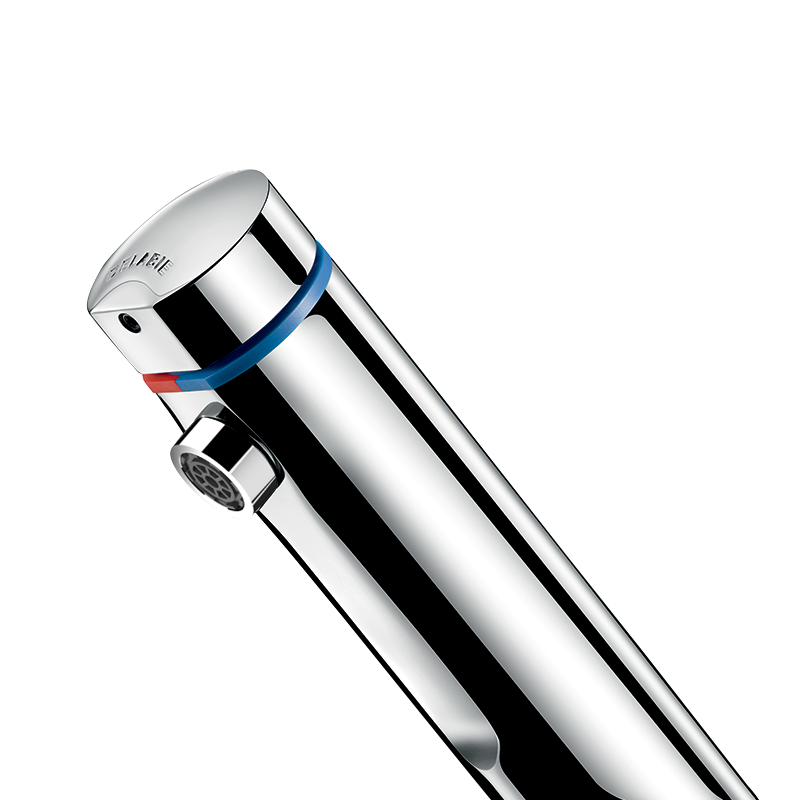

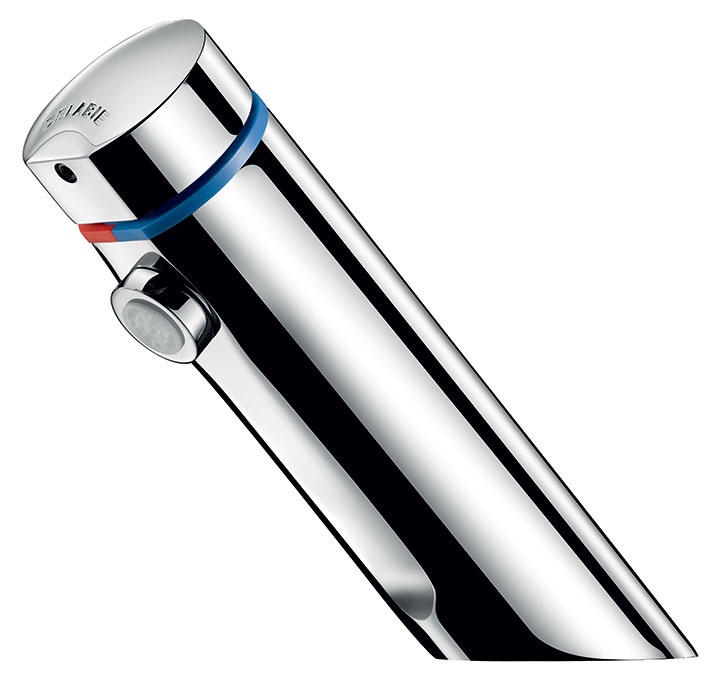

TEMPOMIX 3 AB time flow mixer

Ref. 794000AB
Soft-touch operation, stopcocks, AB system
TEMPOMIX 3 AB time flow mixer

Presentation

DESCRIPTION

TEMPOMIX 3 AB time flow mixer

Ref. 794000AB
Provisional availability 2nd half
2025
.
Please contact the sales office to check availability.
Deck-mounted single control time flow basin mixer:
Soft-touch operation.
Temperature control and operation on the push-button.
Time flow ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Tamperproof scale-resistant flow straightener.
Chrome-plated metal body.
PEX flexibles F3/8" with stopcocks, filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Adjustable maximum temperature limiter.
AB anti-blocking system: water will flow only when the push-button is released.
Suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Economie d'eau

Exceptional water savings: 85%

Anti-blocage

Anti-blocking system

Confort - Ergonomie - Déclenchement souple

Soft-touch operation

Design

Sleek design

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOMIX 3 AB time flow mixer

Ref. 794000AB

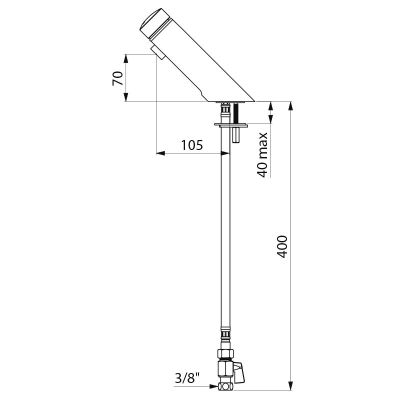

Connector F⅜"
Technology Time flow
Drop height 70mm
Spout length 105mm
Flow rate 3 lpm
Certificates Logo DoP ACS
Warranty 30-Year

Downloads

DOWNLOADS

TEMPOMIX 3 AB time flow mixer

Ref. 794000AB

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

794000 With stopcocks
79400015 With stopcocks - Ø15mm compression fittings
794100 With stopcock
79400015CO With copper tails - stopcocks - Ø 15mm compression fittings
79400015AB Anti-blocking - with stopcock - Ø 15mm compression fittings
794100AB Anti-blocking - without stopcocks
