DESCRIPTION

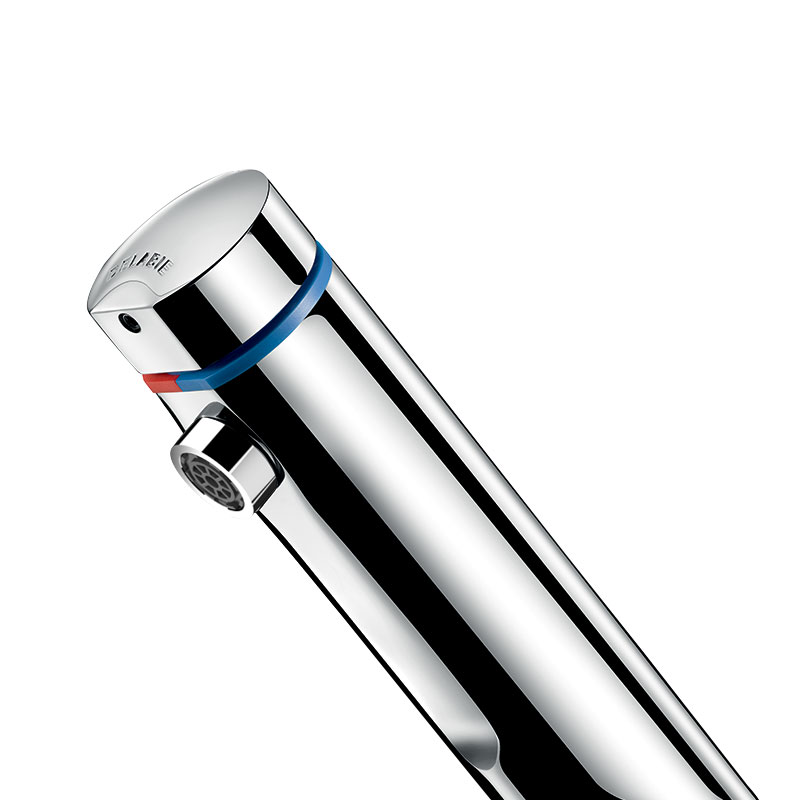

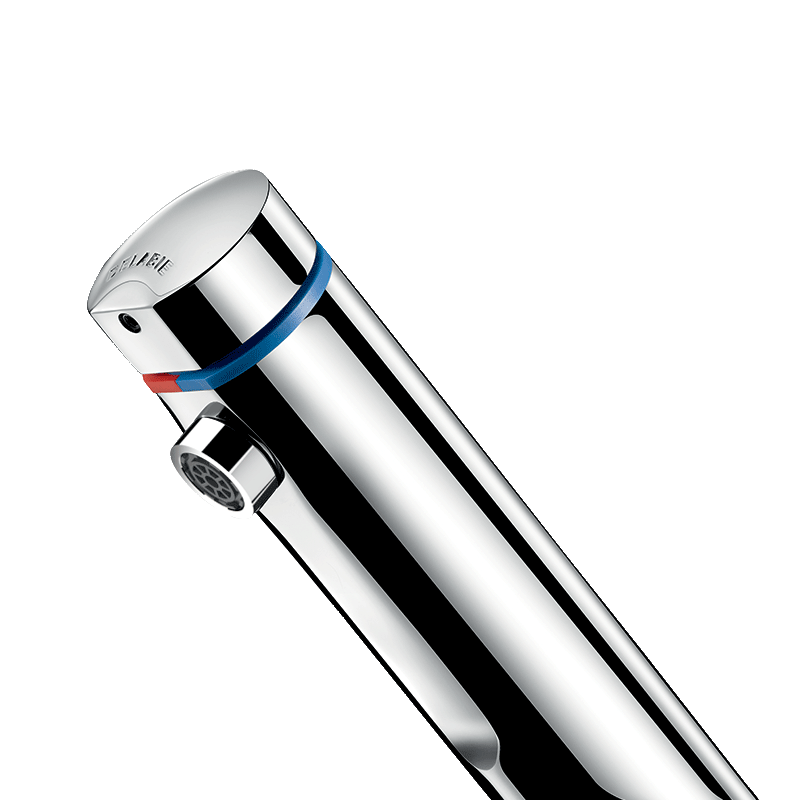

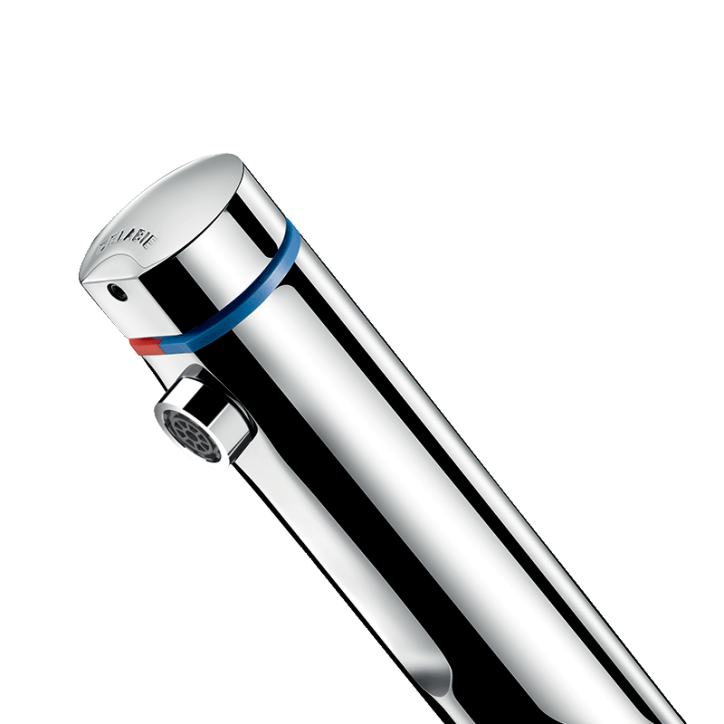

TEMPOMIX 3 time flow mixer
Ref. 79400015CODeck-mounted single control time flow basin mixer:
Soft-touch operation.
Temperature control and operation on the push-button.
Time flow pre-set at ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Tamperproof scale-resistant flow straightener.
Chrome-plated solid brass body.
Copper tails with stopcocks, filters, non-return valves and Ø 15mm conical inlets.
Fixing reinforced by 2 stainless steel rods.
Adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
Soft-touch operation.
Temperature control and operation on the push-button.
Time flow pre-set at ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Tamperproof scale-resistant flow straightener.
Chrome-plated solid brass body.
Copper tails with stopcocks, filters, non-return valves and Ø 15mm conical inlets.
Fixing reinforced by 2 stainless steel rods.
Adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
Exceptional water savings: 85%
Soft-touch operation
Chrome-plated solid brass, reinforced fixings
TECHNICAL CHARACTERISTICS
TEMPOMIX 3 time flow mixer
Ref. 79400015CO| Connector | M½" Ø 15mm |
| Technology | Time flow |
| Drop height | 60mm |
| Spout length | 110mm |
| Flow rate | 3 lpm |
| Warranty |
|
VARIANTS
| 794000 | With stopcocks | ||
|---|---|---|---|
| 79400015 | With stopcocks - Ø15mm compression fittings | ||
| 794100 | With stopcock | ||
| 794000AB | Anti-blocking - with stopcock | ||
| 79400015AB | Anti-blocking - with stopcock - Ø 15mm compression fittings | ||
| 794100AB | Anti-blocking - without stopcocks |
Eco-consumption the new challenge for washrooms?
Over 85% water savings with the TEMPOMIX 3
Associated products
Wall-mounted liquid soap dispenser, 1 litre
Liquid soap or hydroalcoholic gel dispenser
Ref. 510580
PREMIX NANO thermostatic mixing valve
For mixed water from 34 - 60°C
Ref. 732116
ON/OFF waste
Washbasin waste 1¼"
Ref. 581000
VARIANTS
| 794000 | With stopcocks | ||
|---|---|---|---|
| 79400015 | With stopcocks - Ø15mm compression fittings | ||
| 794100 | With stopcock | ||
| 794000AB | Anti-blocking - with stopcock | ||
| 79400015AB | Anti-blocking - with stopcock - Ø 15mm compression fittings | ||
| 794100AB | Anti-blocking - without stopcocks |
Eco-consumption the new challenge for washrooms?
Over 85% water savings with the TEMPOMIX 3
