DESCRIPTION

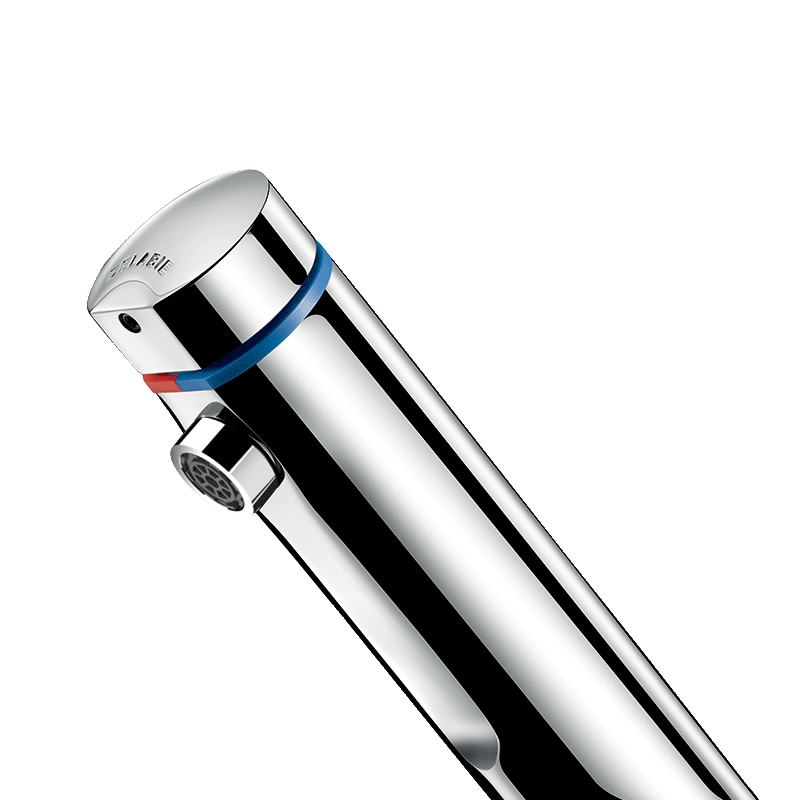

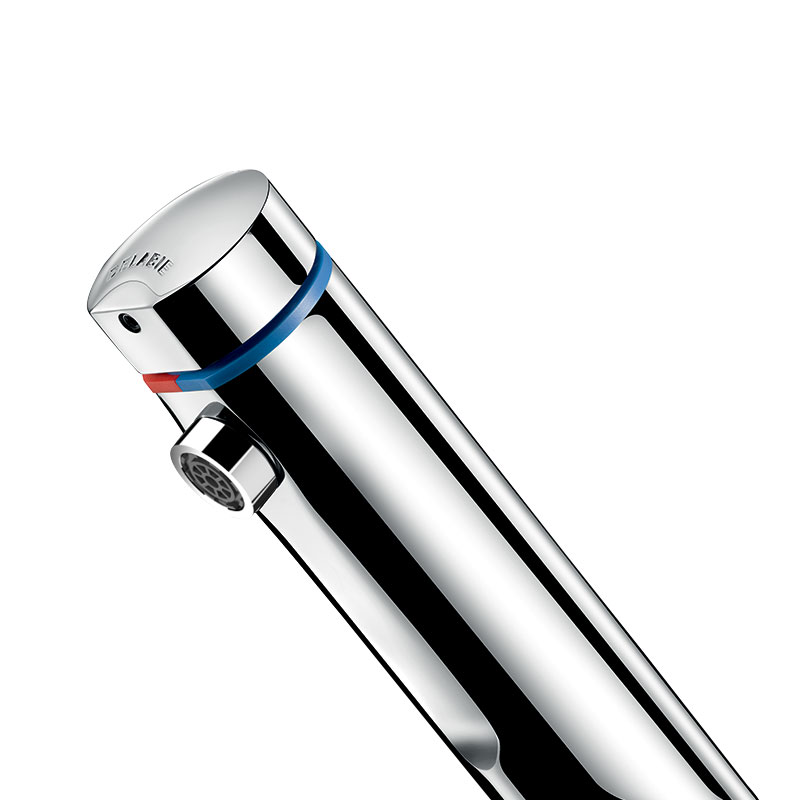

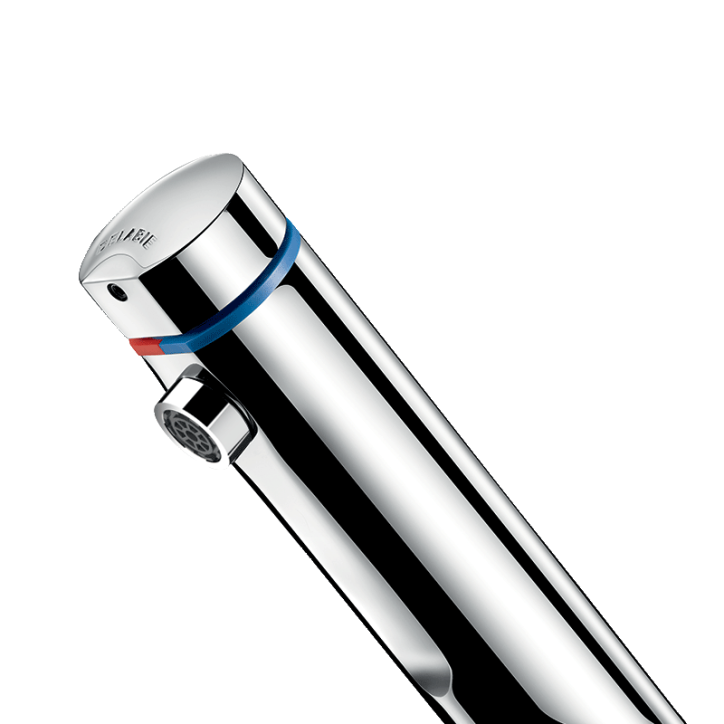

TEMPOMIX 3 AB time flow mixer
Ref. 79400015ABDeck-mounted single control time flow basin mixer:
Soft-touch operation.
Temperature control and operation on the push-button.
Time flow ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Tamperproof scale-resistant flow straightener.
Chrome-plated solid brass body.
PEX flexibles F3/8" with stopcocks, filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Adjustable maximum temperature limiter.
AB anti-blocking security: water will flow only when the push-button is released.
Suitable for people with reduced mobility.
30-year warranty.
Soft-touch operation.
Temperature control and operation on the push-button.
Time flow ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Tamperproof scale-resistant flow straightener.
Chrome-plated solid brass body.
PEX flexibles F3/8" with stopcocks, filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Adjustable maximum temperature limiter.
AB anti-blocking security: water will flow only when the push-button is released.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
Anti-blocking security
Soft-touch operation
85% water savings
Sleek design

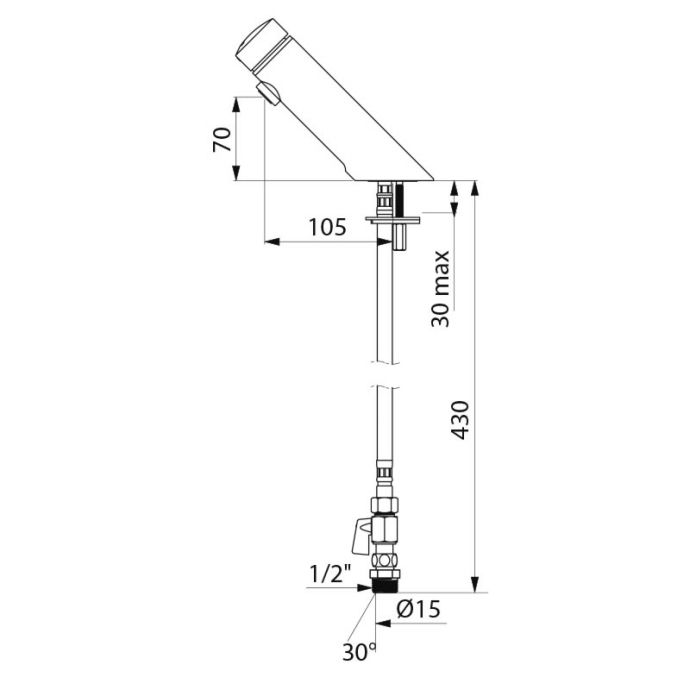

TECHNICAL CHARACTERISTICS
TEMPOMIX 3 AB time flow mixer
Ref. 79400015AB| Connector | M½" Ø 15mm |
| Technology | Time flow |
| Drop height | 70mm |
| Spout length | 105mm |
| Flow rate | 3 lpm |
| Warranty |
|
VARIANTS
| 794000 | With stopcocks | ||
|---|---|---|---|
| 79400015 | With stopcocks - Ø15mm compression fittings | ||
| 794100 | With stopcock | ||
| 79400015CO | With copper tails - stopcocks - Ø 15mm compression fittings | ||
| 794000AB | Anti-blocking - with stopcock | ||
| 794100AB | Anti-blocking - without stopcocks |
