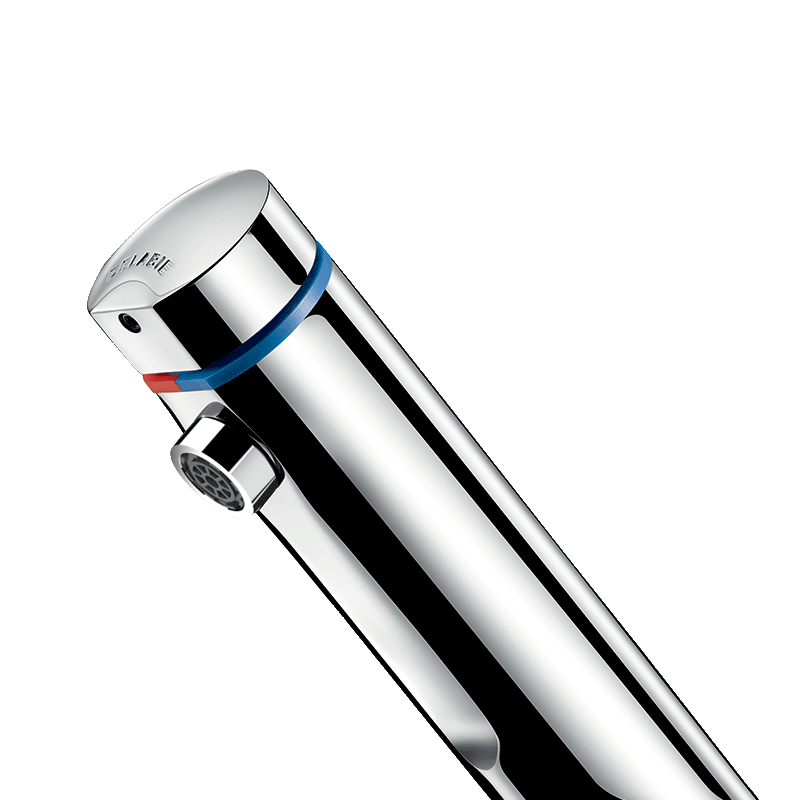

TEMPOMIX 3 time flow mixer

Ref. 79400015
Soft-touch operation, Ø 15mm stopcocks
TEMPOMIX 3 time flow mixer +

Presentation

DESCRIPTION

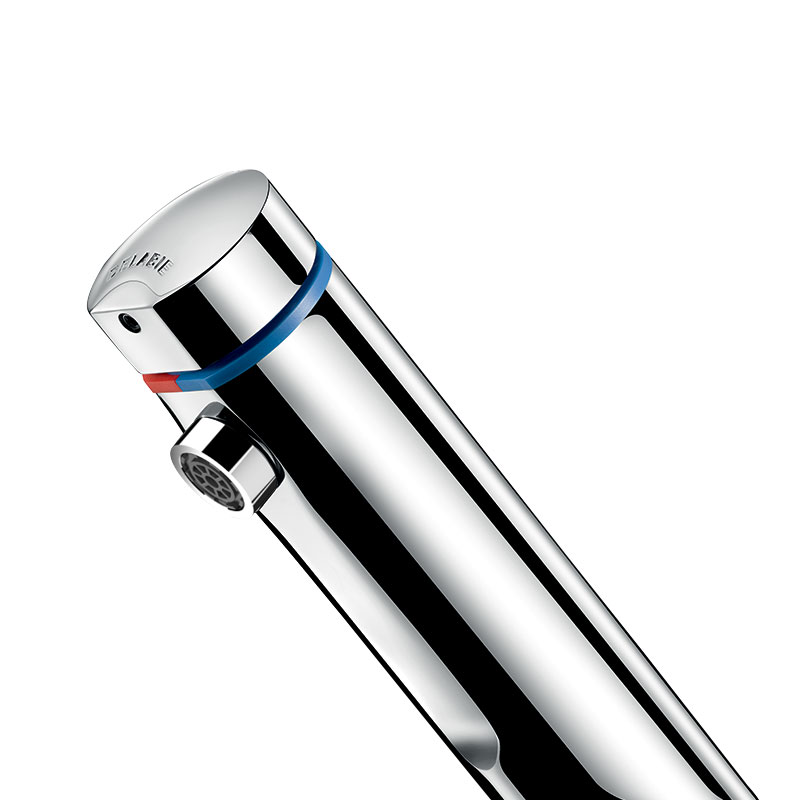

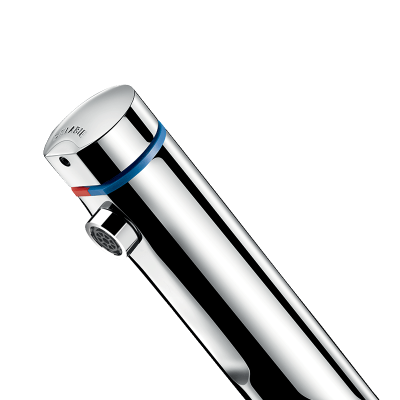

TEMPOMIX 3 time flow mixer

Ref. 79400015
Deck-mounted single control time flow basin mixer:
Soft-touch operation.
Temperature control and operation on the push-button.
Time flow pre-set at ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Tamperproof scale-resistant flow straightener.
Chrome-plated solid brass body.
PEX flexibles with stopcocks, filters, non-return valves and Ø 15mm conical inlets.
Fixing reinforced by 2 stainless steel rods.
Adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Economie d'eau

Exceptional water savings: 85%

Confort - Ergonomie - Déclenchement souple

Soft-touch operation

Anti-vandalisme

Chrome-plated solid brass, reinforced fixings

Design

Sleek design

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOMIX 3 time flow mixer

Ref. 79400015

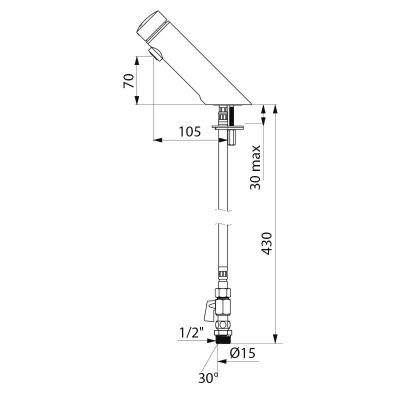

Connector M1/2'' Ø 15mm
Technology Time flow
Drop height 70mm
Spout length 105mm
Flow rate 3 lpm
Certificates Logo WRAS
Warranty 30-Year

Downloads

DOWNLOADS

TEMPOMIX 3 time flow mixer

Ref. 79400015

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

794000 With stopcocks
794100 With stopcock
79400015CO With copper tails - stopcocks - Ø 15mm compression fittings
794000AB Anti-blocking - with stopcock
79400015AB Anti-blocking - with stopcock - Ø 15mm compression fittings
794100AB Anti-blocking - without stopcocks
