TEMPOSOFT MIX 2 time flow mixer

Ref. 742510
Soft-touch operation
See variants See variants
TEMPOSOFT MIX 2 time flow mixer +

Presentation

DESCRIPTION

TEMPOSOFT MIX 2 time flow mixer

Ref. 742510

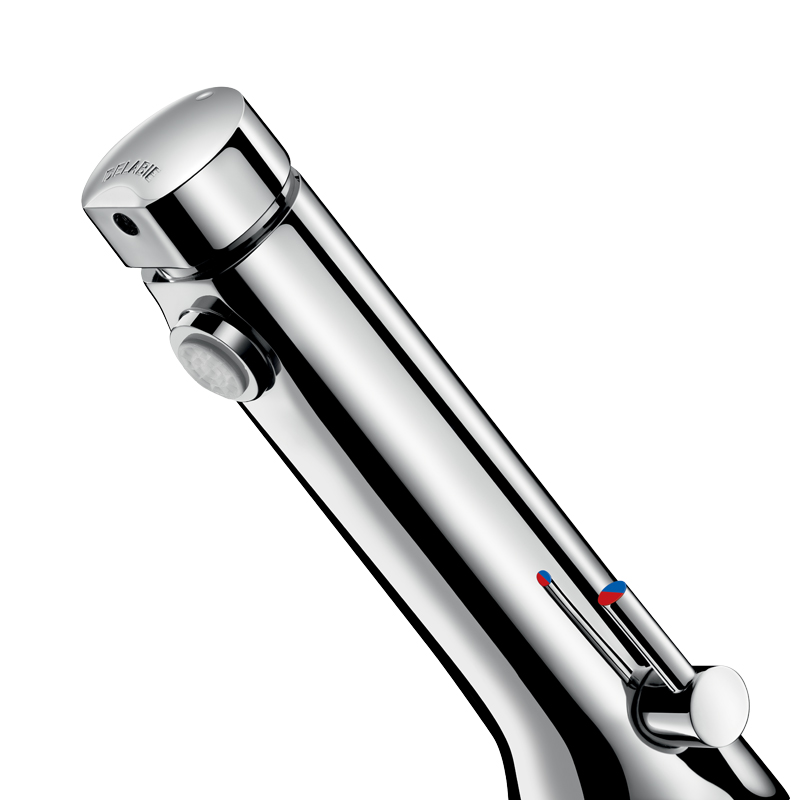

Deck-mounted time flow basin mixer :
Soft-touch operation.
Time flow ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Tamperproof scale-resistant flow straightener.
Chrome-plated brass body.
PEX flexibles F3/8" with filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Side temperature control with standard lever and adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Economie d'eau

Exceptional water savings: 85%

Anti-vandalisme

Reinforced fixings

Confort - Ergonomie - Déclenchement souple

Soft-touch operation

Design

Sleek lines

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOSOFT MIX 2 time flow mixer

Ref. 742510

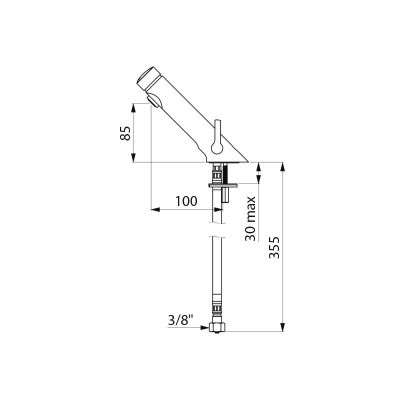

Connector F3/8"
Technology Time flow
Drop height 85mm
Spout length 100mm
Flow rate 3 lpm
Certificates ACS Logo WRAS Logo Belgaqua Logo Ü accoustic Logo PZH Logo DoP Logo GTD denmark
Warranty 30-Year
Repairability
TEMPOSOFT MIX 2 time flow mixer
Ref. 742510

Downloads

DOWNLOADS

TEMPOSOFT MIX 2 time flow mixer

Ref. 742510

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

SPARE PARTS

TEMPOSOFT MIX 2 time flow mixer

Ref. 742510

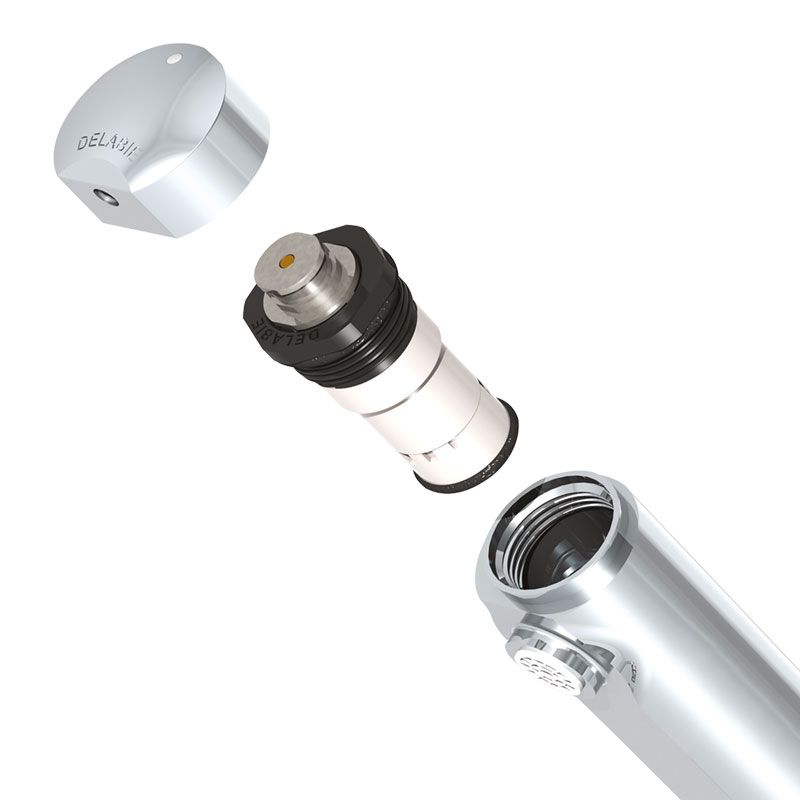

1. 743747
Time flow cartridge
2. BJ13V
Flow straightener
3. 742MSP
Mixing key
4. 900010
Non-return valve
5. 60438.10P
Conical filter

VARIANTS

742500 With stopcocks
74250015 With stopcocks - Ø15mm compression fittings
74250015CO With copper tails - stopcocks - Ø 15mm compression fittings
742520 Without stopcock - Time flow 15s
