DESCRIPTION

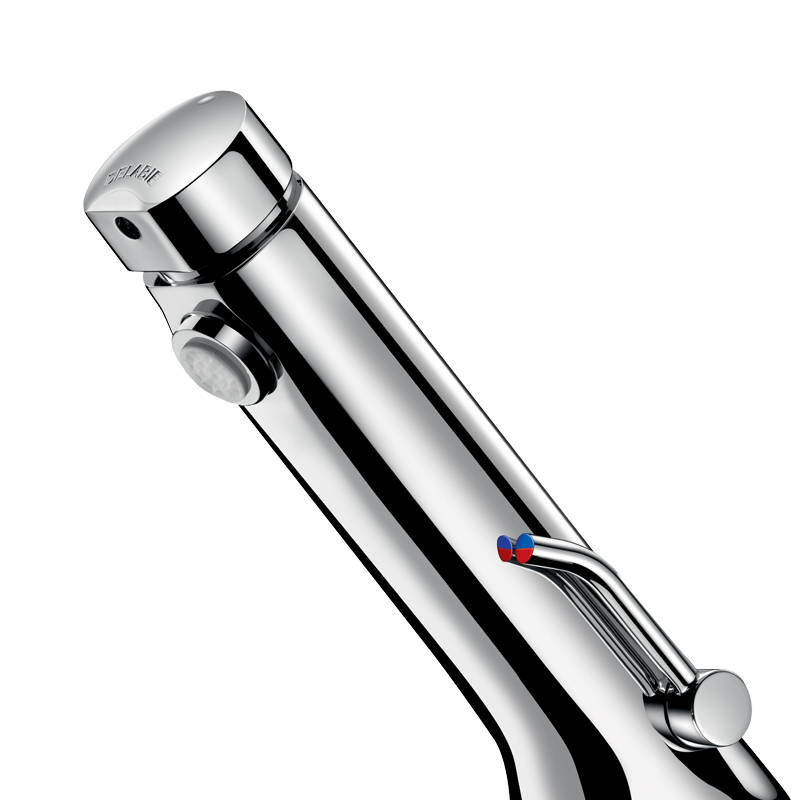

TEMPOSOFT MIX 2 time flow mixer
Ref. 742500LHDeck-mounted time flow basin mixer:
Soft-touch operation.
Time flow ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Tamperproof scale-resistant flow straightener.
Chrome-plated brass body.
PEX flexibles F3/8" with stopcocks, filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Side temperature control with long lever and adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
Soft-touch operation.
Time flow ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Tamperproof scale-resistant flow straightener.
Chrome-plated brass body.
PEX flexibles F3/8" with stopcocks, filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Side temperature control with long lever and adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
Exceptional water savings: 85%
Reinforced fixings
Temperature selection
Sleek lines

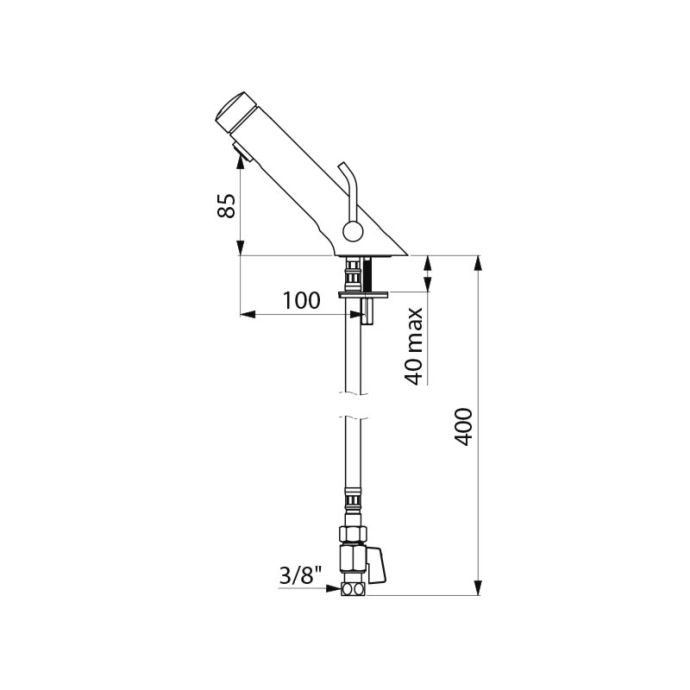

TECHNICAL CHARACTERISTICS
TEMPOSOFT MIX 2 time flow mixer
Ref. 742500LH| Connector | F3/8" |
| Technology | Time flow |
| Drop height | 85mm |
| Spout length | 100mm |
| Flow rate | 3 lpm |
| Certificates |
|
| Warranty |
|
| Repairability |  |
Spare parts

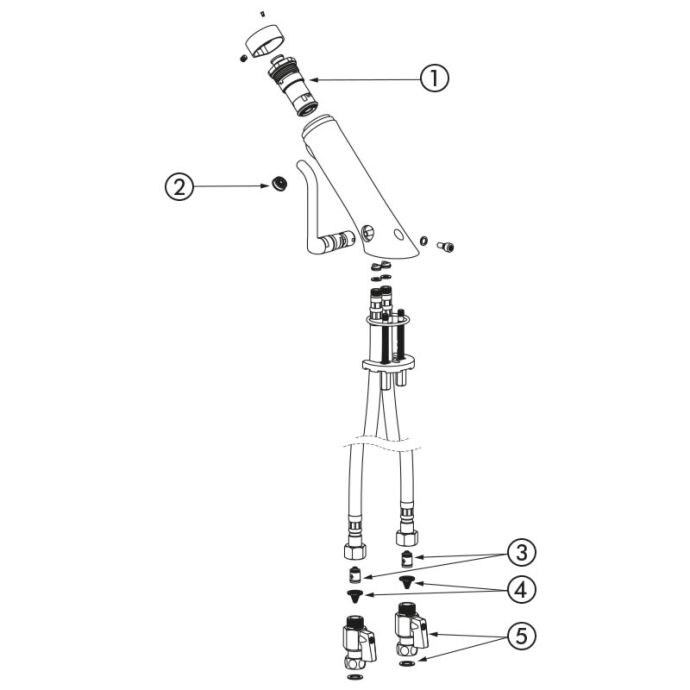

SPARE PARTS
TEMPOSOFT MIX 2 time flow mixer
Ref. 742500LH
| 1. | 743747 |
|
Time flow cartridge |
| 2. | BJ13V |
|
Flow straightener |
| 3. | 900010 |
|
Non-return valve |
| 4. | 60438.10P |
|
Conical filter |
| 5. | 825212 |
|
In-line STOP union |
VARIANTS
| 742510LH | Without stopcock |
|---|
Associated products
Wall-mounted liquid soap dispenser, 1 litre
Liquid soap or hydroalcoholic gel dispenser
Ref. 510580
PREMIX NANO thermostatic mixing valve
For mixed water from 34 - 60°C
Ref. 732116
ON/OFF waste
Washbasin waste 1¼"
Ref. 581000
VARIANTS
| 742510LH | Without stopcock |
|---|
