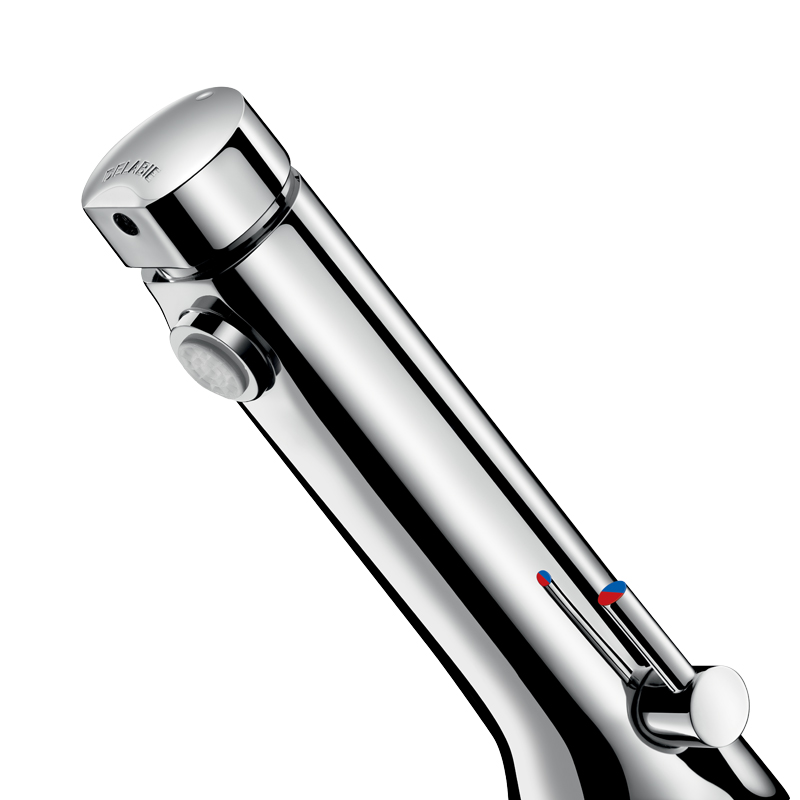

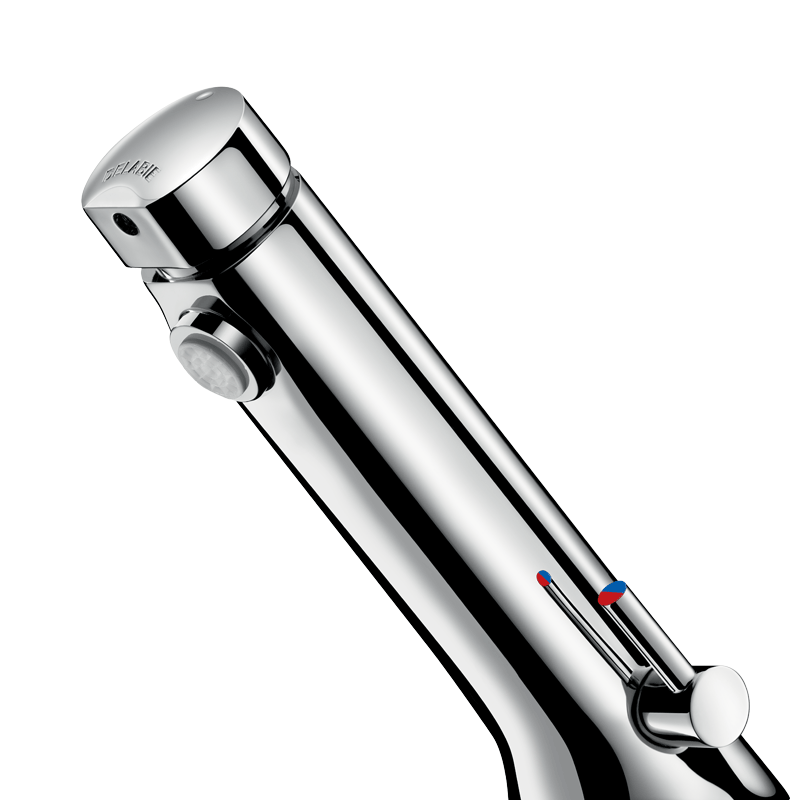

TEMPOSOFT MIX 2 time flow mixer

Ref. 74250015CO
Soft-touch operation, Ø 15mm stopcocks
TEMPOSOFT MIX 2 time flow mixer

Presentation

DESCRIPTION

TEMPOSOFT MIX 2 time flow mixer

Ref. 74250015CO
Deck-mounted time flow basin mixer:
Soft-touch operation.
Time flow ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Tamperproof scale-resistant flow straightener.
Chrome-plated brass body.
Copper tails with stopcocks, filters, non-return valves and Ø 15mm conical inlets.
Fixing reinforced by 2 stainless steel rods.
Side temperature control with standard lever and maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Economie d'eau

Exceptional water savings: 85%

Confort - Ergonomie - Déclenchement souple

Soft-touch operation

Design

Sleek design

Characteristics

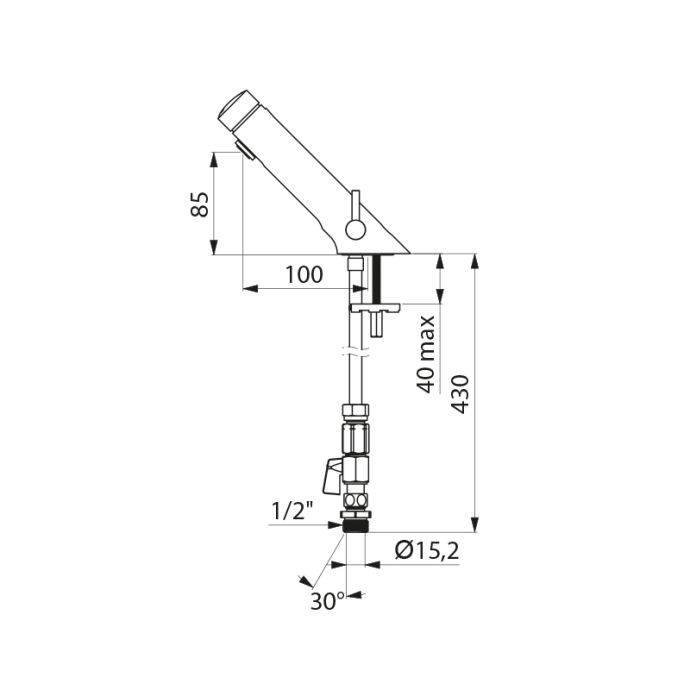

TECHNICAL CHARACTERISTICS

TEMPOSOFT MIX 2 time flow mixer

Ref. 74250015CO
Connector M½" Ø 15mm
Technology Time flow
Drop height 85mm
Spout length 100mm
Flow rate 3 lpm
Warranty 30-Year

Downloads

DOWNLOADS

TEMPOSOFT MIX 2 time flow mixer

Ref. 74250015CO

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

742500 With stopcocks
74250015 With stopcocks - Ø15mm compression fittings
742510 Without stopcock
742520 Without stopcock - Time flow 15s

VARIANTS

742500 With stopcocks
74250015 With stopcocks - Ø15mm compression fittings
742510 Without stopcock
742520 Without stopcock - Time flow 15s
