TEMPOSOFT MIX 2 time flow mixer

Ref. 74250015
Soft-touch operation, Ø 15mm stopcocks
TEMPOSOFT MIX 2 time flow mixer

Presentation

DESCRIPTION

TEMPOSOFT MIX 2 time flow mixer

Ref. 74250015
Deck-mounted time flow basin mixer:
Soft-touch operation.
Time flow ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Tamperproof scale-resistant flow straightener.
Chrome-plated solid brass body.
PEX flexibles with stopcocks, filters, non-return valves and Ø 15mm conical inlets.
Fixing reinforced by 2 stainless steel rods.
Side temperature control with standard lever and maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Economie d'eau

Exceptional water savings: 85%

Anti-vandalisme

Chrome-plated solid brass body

Confort - Ergonomie - Déclenchement souple

Soft-touch operation

Design

Sleek design

Characteristics

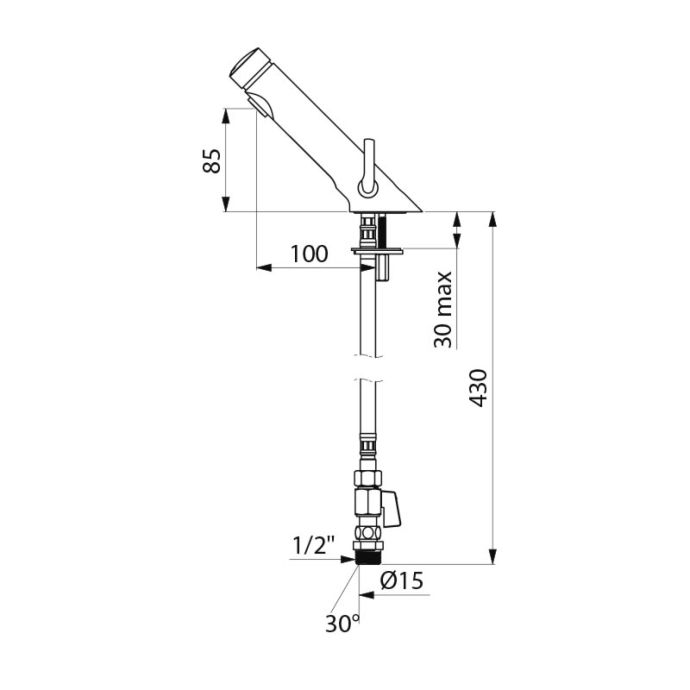

TECHNICAL CHARACTERISTICS

TEMPOSOFT MIX 2 time flow mixer

Ref. 74250015
Connector M1/2'' Ø 15mm
Technology Time flow
Drop height 85mm
Spout length 100mm
Flow rate 3 lpm
Certificates Logo WRAS
Warranty 30-Year
Repairability
TEMPOSOFT MIX 2 time flow mixer
Ref. 74250015

Downloads

DOWNLOADS

Mitigeur temporisé TEMPOSOFT MIX 2

Ref. 74250015

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

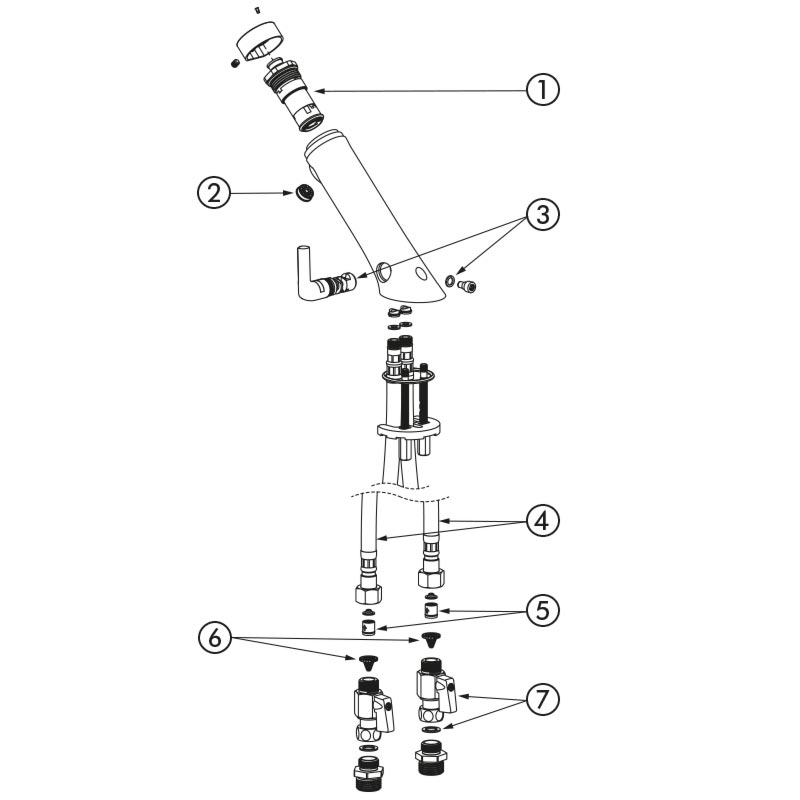

SPARE PARTS

TEMPOSOFT MIX 2 time flow mixer

Ref. 74250015
1. 743747
Time flow cartridge
2. BJ13V
Flow straightener
3. 742MSP
Mixing key
4. 900010
Non-return valve
5. 60438.10P
Conical filter
6. 825212
In-line STOP union

VARIANTS

742500 With stopcocks
742510 Without stopcock
74250015CO With copper tails - stopcocks - Ø 15mm compression fittings
742520 Without stopcock - Time flow 15s
