DESCRIPTION

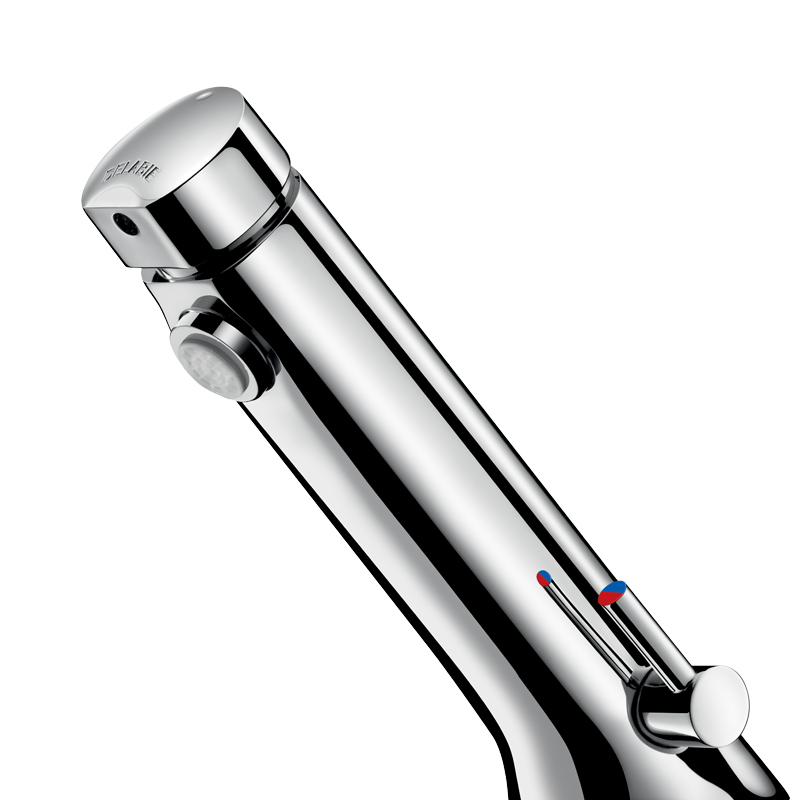

TEMPOSOFT MIX 2 time flow mixer
Ref. 742500Deck-mounted time flow basin mixer:
Soft-touch operation.
Time flow ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Tamperproof scale-resistant flow straightener.
Chrome-plated brass body.
PEX flexibles with stopcocks F3/8", filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Side temperature control with standard lever and adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
Soft-touch operation.
Time flow ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Tamperproof scale-resistant flow straightener.
Chrome-plated brass body.
PEX flexibles with stopcocks F3/8", filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Side temperature control with standard lever and adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
Exceptional water savings: 85%
Reinforced fixings
Soft-touch operation
Sleek lines

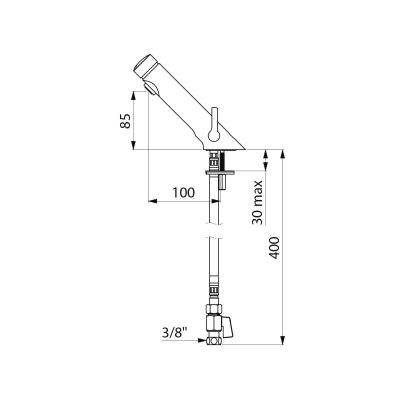

TECHNICAL CHARACTERISTICS
TEMPOSOFT MIX 2 time flow mixer
Ref. 742500| Connector | F3/8" |
| Technology | Time flow |
| Drop height | 85mm |
| Spout length | 100mm |
| Flow rate | 3 lpm |
| Certificates |
|
| Warranty |
|
| Repairability |  |

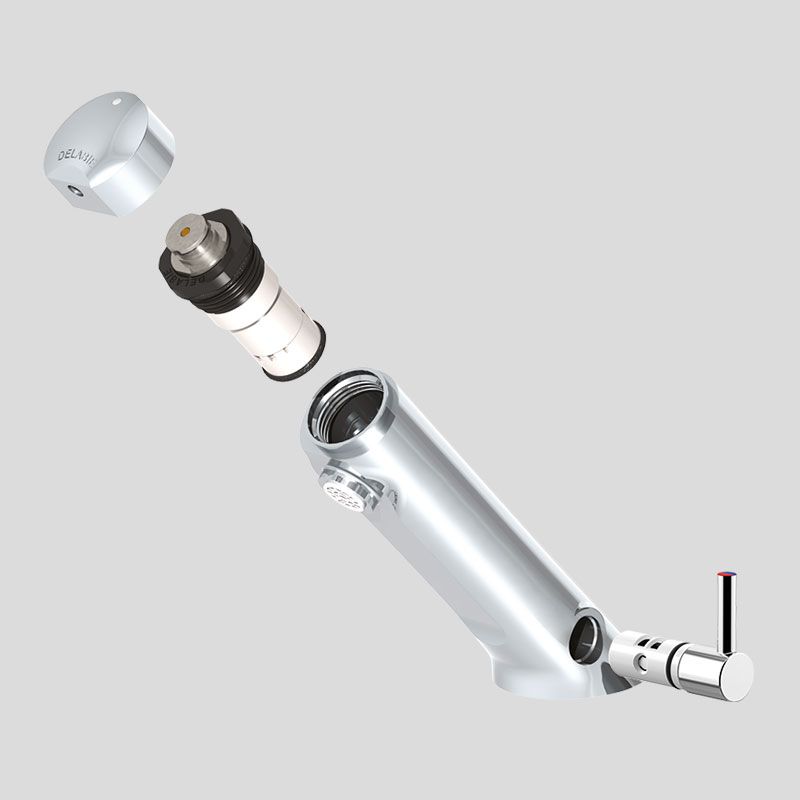

Spare parts
SPARE PARTS
TEMPOSOFT MIX 2 time flow mixer
Ref. 742500
| 1. | 743747 |
|
Time flow cartridge |
| 2. | BJ13V |
|
Flow straightener |
| 3. | 742MSP |
|
Mixing key |
| 4. | 900010 |
|
Non-return valve |
| 5. | 60438.10P |
|
Conical filter |
| 6. | 825212 |
|
In-line STOP union |
VARIANTS
| 74250015 | With stopcocks - Ø15mm compression fittings | ||
|---|---|---|---|
| 742510 | Without stopcock | ||
| 74250015CO | With copper tails - stopcocks - Ø 15mm compression fittings | ||
| 742520 | Without stopcock - Time flow 15s |
