TEMPOMIX 2 time flow mixer

Ref. 70040015
Ø 15mm stopcocks

Presentation

DESCRIPTION

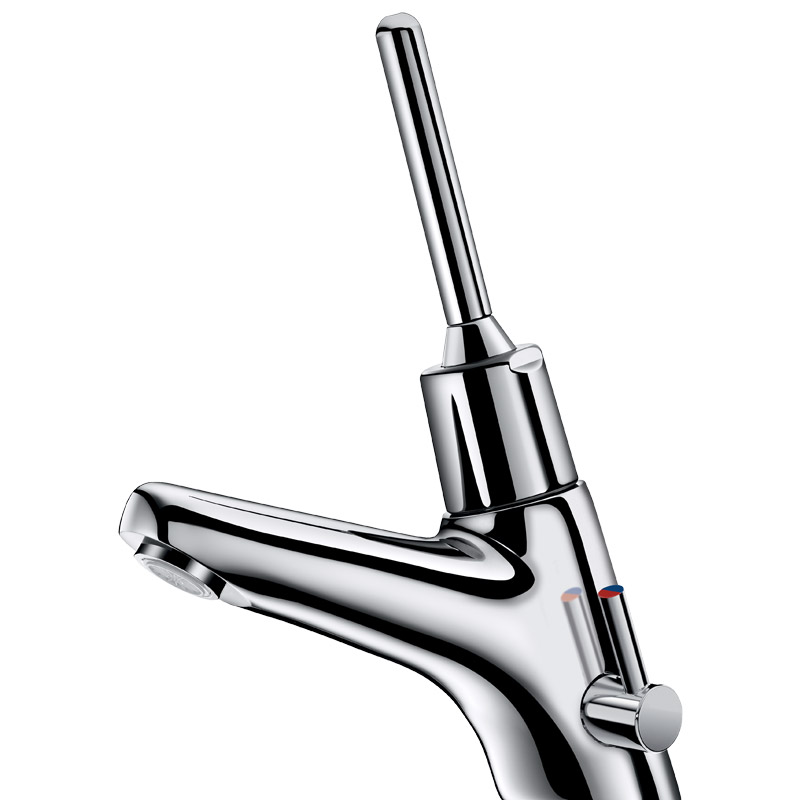

TEMPOMIX 2 time flow mixer

Ref. 70040015

Deck-mounted time flow basin tap:
Time flow ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Tamperproof scale-resistant flow straightener.
Chrome-plated solid brass body
PEX flexibles with stopcocks, filters, non-return valves and Ø 15mm conical inlets.
Fixing reinforced by 2 stainless steel rods.
Side temperature control with standard lever and maximum temperature limiter.
Lever control (soft-touch operation).
30-year warranty.

ADVANTAGES

Chrome-plated solid brass

85% water savings

Maintenance from front with no need for removal

Soft-touch operation with lever

Characteristics

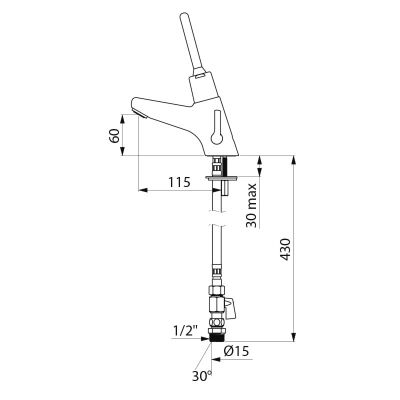

TECHNICAL CHARACTERISTICS

TEMPOMIX 2 time flow mixer

Ref. 70040015

Connector	M1/2'' Ø 15mm
Technology	Time flow
Drop height	60mm
Spout length	115mm
Flow rate	3 lpm
Warranty
Repairability

Downloads

DOWNLOADS

TEMPOMIX 2 time flow mixer

Ref. 70040015

To download one or several documents linked to this product, please select the type of file you require :

Product file

Specification description

Lo-res JPG image

Hi-res EPS image

Line drawing

Line drawing AutoCAD DWG

Installation guide

Spare parts

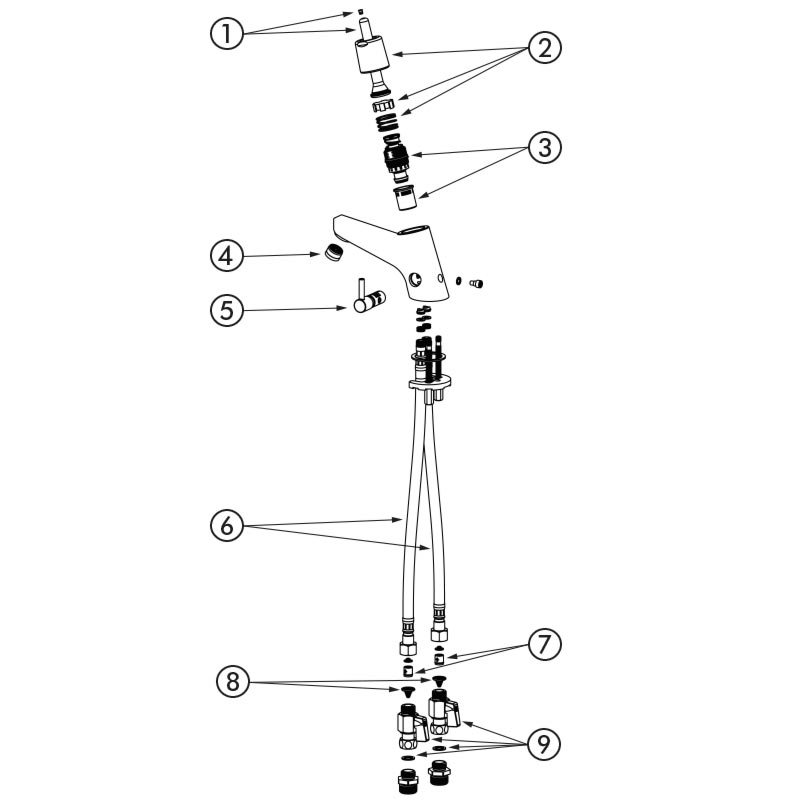

SPARE PARTS

TEMPOMIX 2 time flow mixer

Ref. 70040015

1.	997352	Head cover set
2.	743305	Time flow cartridge
3.	700BJ	Flow straightener
4.	742MSP	Mixing key
5.	FLEX795	Stainless steel flexibles F3/8"
6.	900010	Non-return valve
7.	60438.10P	Conical filter
8.	825212	In-line STOP union
