DESCRIPTION

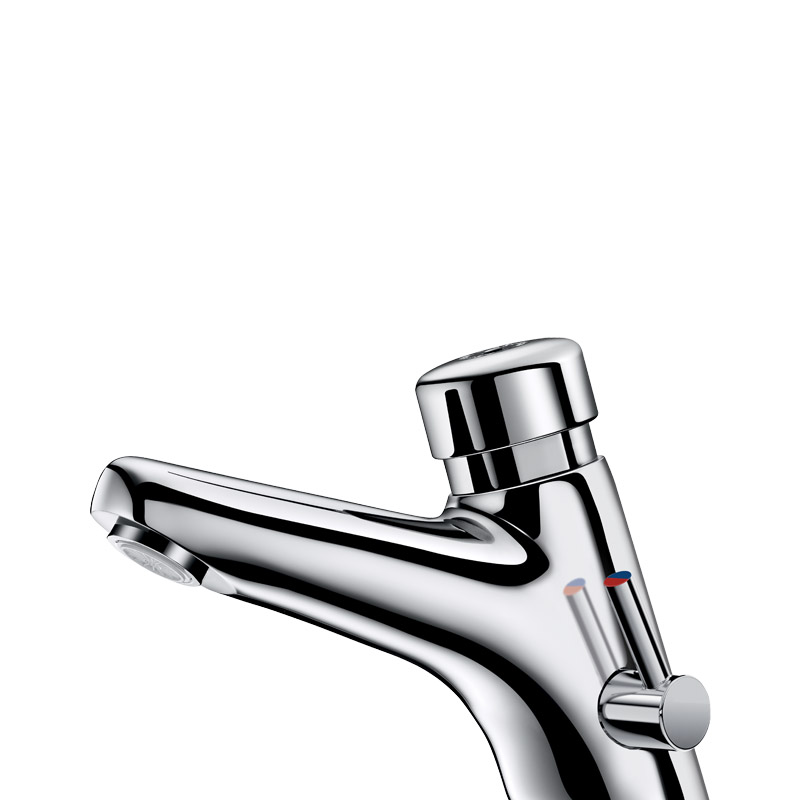

TEMPOMIX 2 time flow mixer
Ref. 700101Deck-mounted time flow basin mixer:
Time flow ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Chrome-plated brass body.
PEX flexibles F3/8" with filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Side temperature control with standard lever and adjustable maximum temperature limiter.
AB anti-blocking system: water will flow only when the push-button is released
30-year warranty.
Time flow ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Chrome-plated brass body.
PEX flexibles F3/8" with filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Side temperature control with standard lever and adjustable maximum temperature limiter.
AB anti-blocking system: water will flow only when the push-button is released
30-year warranty.
ADVANTAGES
85% water savings
Chrome-plated solid brass
85% water savings

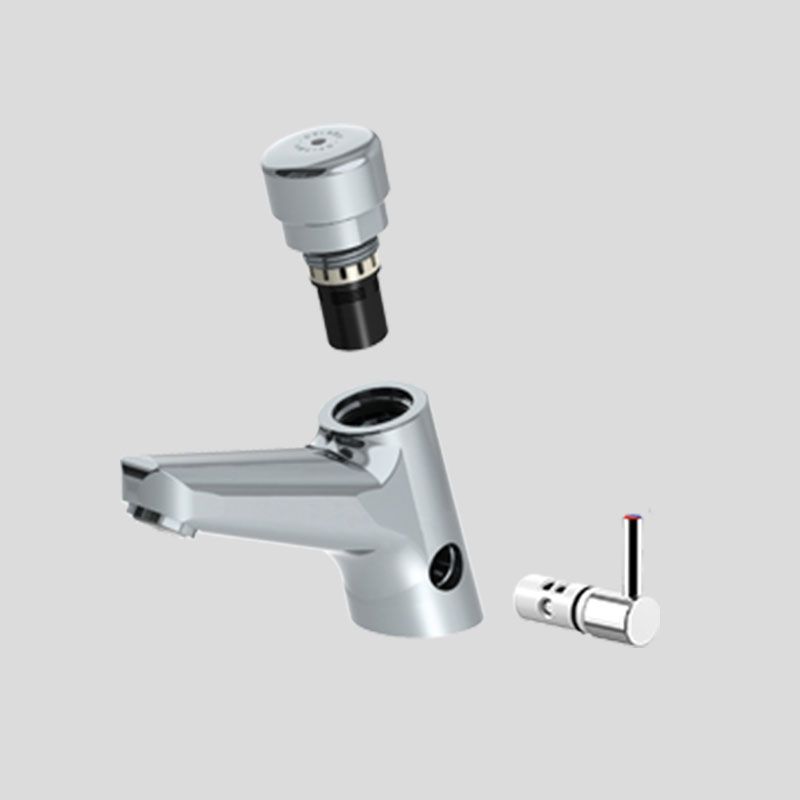

Maintenance from front without removing mixer

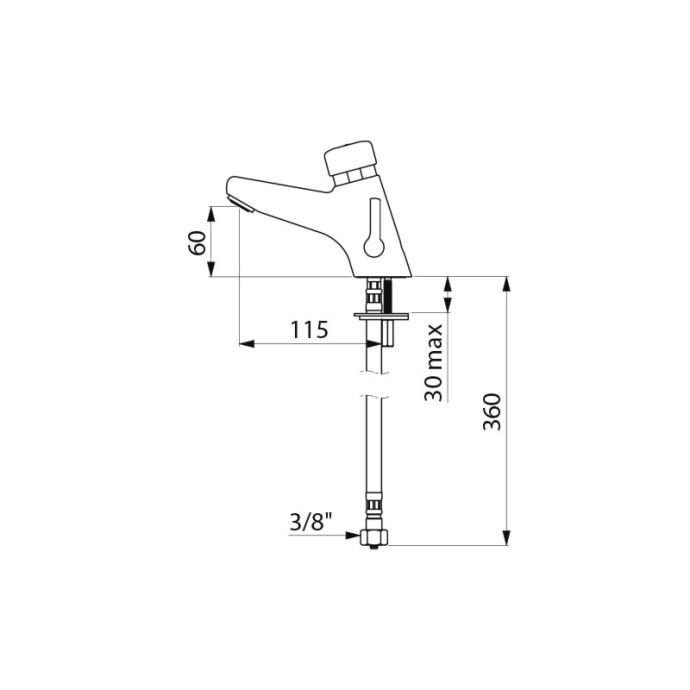

TECHNICAL CHARACTERISTICS
TEMPOMIX 2 time flow mixer
Ref. 700101| Connector | F3/8" |
| Technology | Time flow |
| Drop height | 60mm |
| Spout length | 115mm |
| Flow rate | 3 lpm |
| Certificates |
|
| Warranty |
|
VARIANTS
| 700000 | With stopcocks | ||
|---|---|---|---|
| 700001 | With stopcocks - AB system | ||
| 700100 | Without stopcock | ||
| 700102 | Without stopcock - Time flow 15s |
Associated products
Wall-mounted liquid soap dispenser, 1 litre
Liquid soap or hydroalcoholic gel dispenser
Ref. 510580
PREMIX NANO thermostatic mixing valve
For mixed water from 34 - 60°C
Ref. 732116
ON/OFF waste
Washbasin waste 1¼"
Ref. 581000
VARIANTS
| 700000 | With stopcocks | ||
|---|---|---|---|
| 700001 | With stopcocks - AB system | ||
| 700100 | Without stopcock | ||
| 700102 | Without stopcock - Time flow 15s |
