TEMPOMIX 2 time flow mixer

Ref. 700100

Presentation

DESCRIPTION

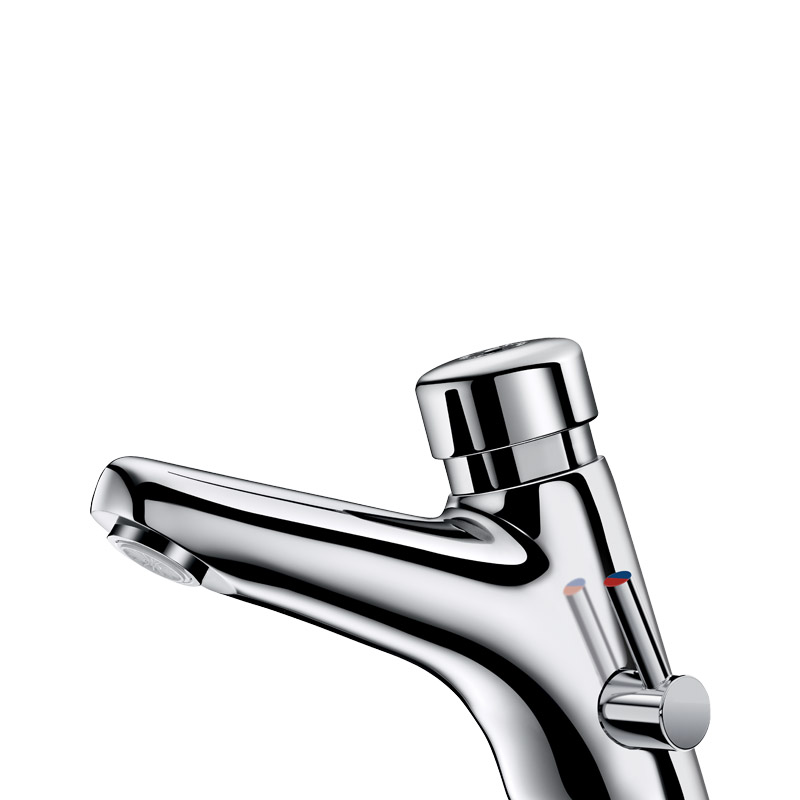

TEMPOMIX 2 time flow mixer

Ref. 700100

Deck-mounted time flow basin mixer:
Time flow ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Tamperproof scale-resistant flow straightener.
Chrome-plated brass body.
PEX flexibles F3/8" with filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Side temperature control lever with adjustable maximum temperature limiter.
30-year warranty.

ADVANTAGES

85% water savings

Chrome-plated solid brass

Maintenance from front without removing the mixer

Characteristics

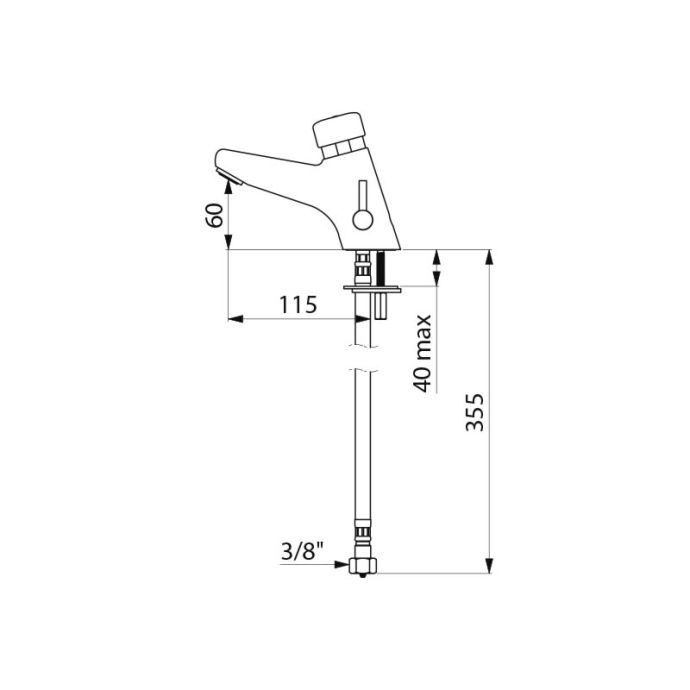

TECHNICAL CHARACTERISTICS

TEMPOMIX 2 time flow mixer

Ref. 700100

Connector	F3/8"
Technology	Time flow
Drop height	60mm
Spout length	115mm
Flow rate	3 lpm
Certificates
Warranty
Repairability

Downloads

DOWNLOADS

TEMPOMIX 2 time flow mixer

Ref. 700100

To download one or several documents linked to this product, please select the type of file you require :

Product file

Specification description

Lo-res JPG image

Hi-res EPS image

Line drawing

Line drawing AutoCAD DWG

Installation guide

Certificates

Spare parts

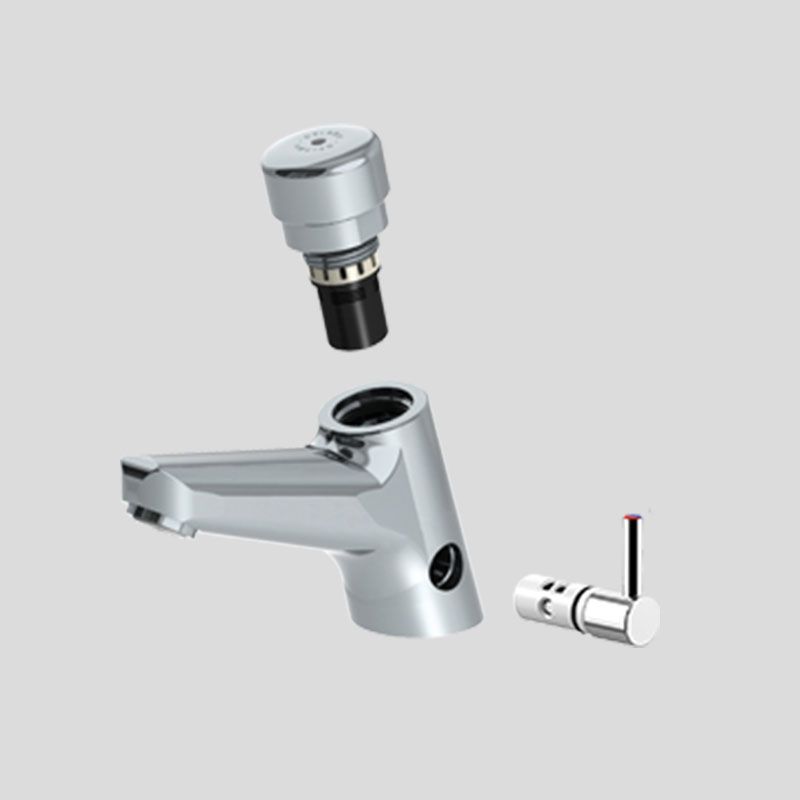

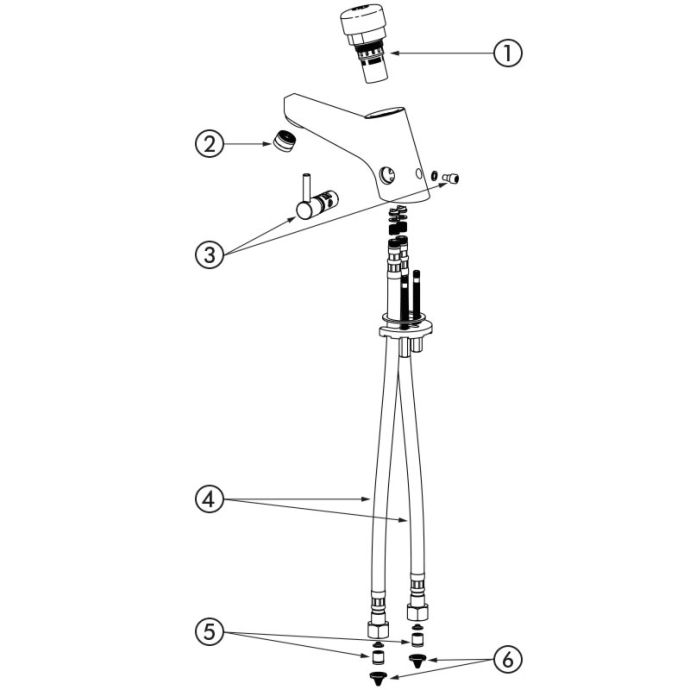

SPARE PARTS

TEMPOMIX 2 time flow mixer

Ref. 700100

1.	743907	Time flow cartridge
2.	700BJ	Flow straightener
3.	742MSP	Mixing key
4.	FLEX795	Stainless steel flexibles F3/8"
5.	900010	Non-return valve
6.	60438.10P	Conical filter
