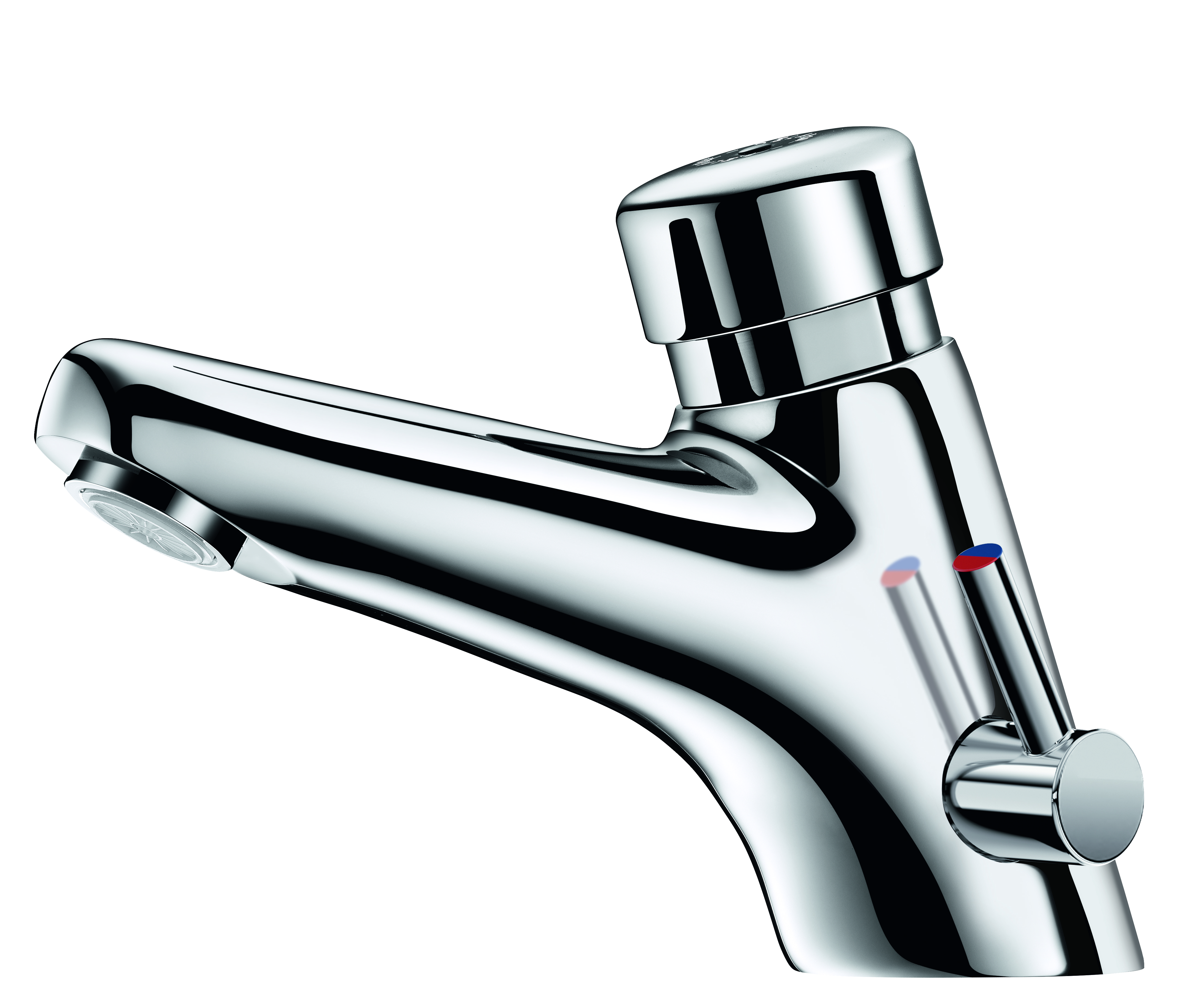

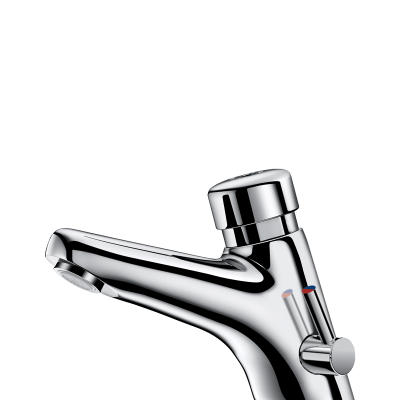

TEMPOMIX 2 time flow mixer

Ref. 700001
(AB) Anti-blocking model, stopcocks
TEMPOMIX 2 time flow mixer +

Presentation

DESCRIPTION

TEMPOMIX 2 time flow mixer

Ref. 700001
Deck-mounted time flow basin mixer:
Time flow ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Tamperproof, scale-resistant flow straightener.
Chrome-plated brass body.
PEX flexibles with stopcocks F3/8", filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Side temperature control with standard lever and adjustable maximum temperature limiter.
AB anti-blocking system: water only flows when push-button is released.
30-year warranty.

ADVANTAGES

Economie d'eau

85% water savings

Anti-vandalisme

Anti-blocking system

Maintenance aisée - Installation aisée

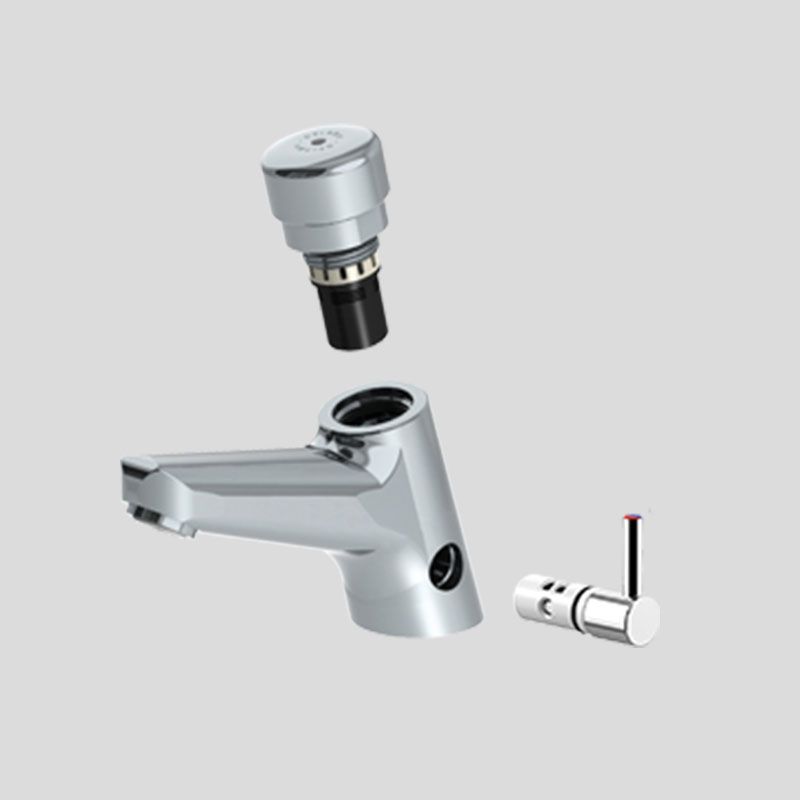

Maintenance from front with no need for removal

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOMIX 2 time flow mixer

Ref. 700001

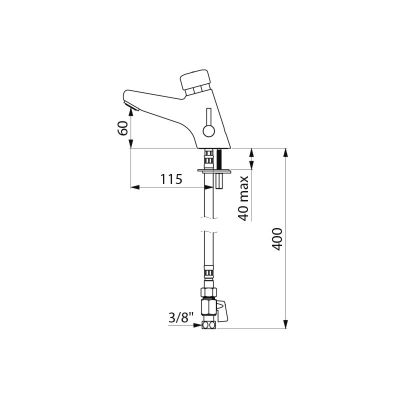

Connector F3/8"
Technology Time flow
Drop height 60mm
Spout length 115mm
Flow rate 3 lpm
Certificates ACS Logo Belgaqua Logo PZH Logo DoP
Warranty 30-Year

Downloads

DOWNLOADS

TEMPOMIX 2 time flow mixer

Ref. 700001

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

700000 With stopcocks
700100 Without stopcock
700101 Without stopcock - AB system
700102 Without stopcock - Time flow 15s

VARIANTS

700000 With stopcocks
700100 Without stopcock
700101 Without stopcock - AB system
700102 Without stopcock - Time flow 15s
