DESCRIPTION

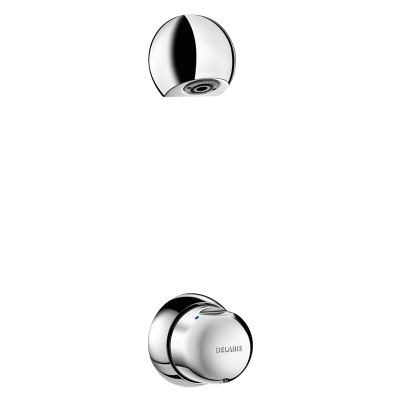

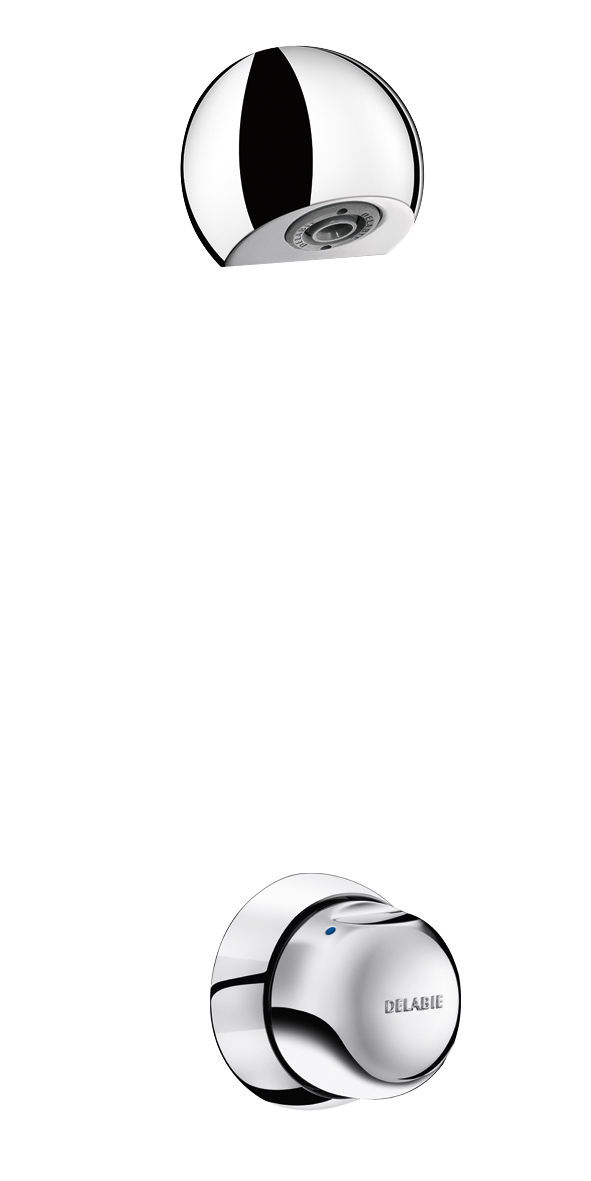

TEMPOMIX time flow shower kit
Ref. 796209Time flow shower kit for cross wall installation:
TEMPOMIX ¾" single control mixer.

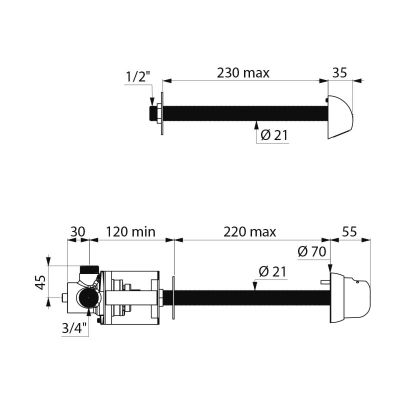

For walls ≤ 220mm.
Temperature control and operation via the push-button.
Maximum temperature limiter (adjustable by the installer).
Ligature-resistant collar.
Soft-touch operation.
Time flow ~30 seconds.
Flow rate 6 lpm at 3 bar.
Chrome-plated ROUND shower head, tamperproof with scale-resistant nozzle and automatic flow rate regulation.
Integrated non-return valves and filters.
Chrome-plated metal push-button.
Integrated non-return valves and filters.
Threaded rods can be cut-to-size.
30-year warranty.
TEMPOMIX ¾" single control mixer.
For walls ≤ 220mm.
Temperature control and operation via the push-button.
Maximum temperature limiter (adjustable by the installer).
Ligature-resistant collar.
Soft-touch operation.
Time flow ~30 seconds.
Flow rate 6 lpm at 3 bar.
Chrome-plated ROUND shower head, tamperproof with scale-resistant nozzle and automatic flow rate regulation.
Integrated non-return valves and filters.
Chrome-plated metal push-button.
Integrated non-return valves and filters.
Threaded rods can be cut-to-size.
30-year warranty.
ADVANTAGES
![Economie d'eau](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/9/5/9/2/2959-12-eng-US/economie-deau.png)
80% water savings
![Anti-vandalisme](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/7/8/8/2/2887-12-eng-US/antivandalisme.png)
Cross wall installation
![Endurance - Fiabilité](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/3/7/9/2/2973-12-eng-US/endurance.png)
System tested to over 500,000 operations
![Maintenance aisée - Installation aisée](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/5/1/0/3/3015-17-eng-US/maintenance.png)
Maintenance outside of the area of use
TECHNICAL CHARACTERISTICS
TEMPOMIX time flow shower kit
Ref. 796209Connector | ¾" |
Technology | Time flow |
Length | 220mm |
Flow rate | 6 lpm |
Certificates |
![]() ![]() ![]() |
Warranty | ![]() |
