TEMPOMIX 3 time flow shower mixer

Ref. 794470
Time flow single control
TEMPOMIX 3 time flow shower mixer

Presentation

DESCRIPTION

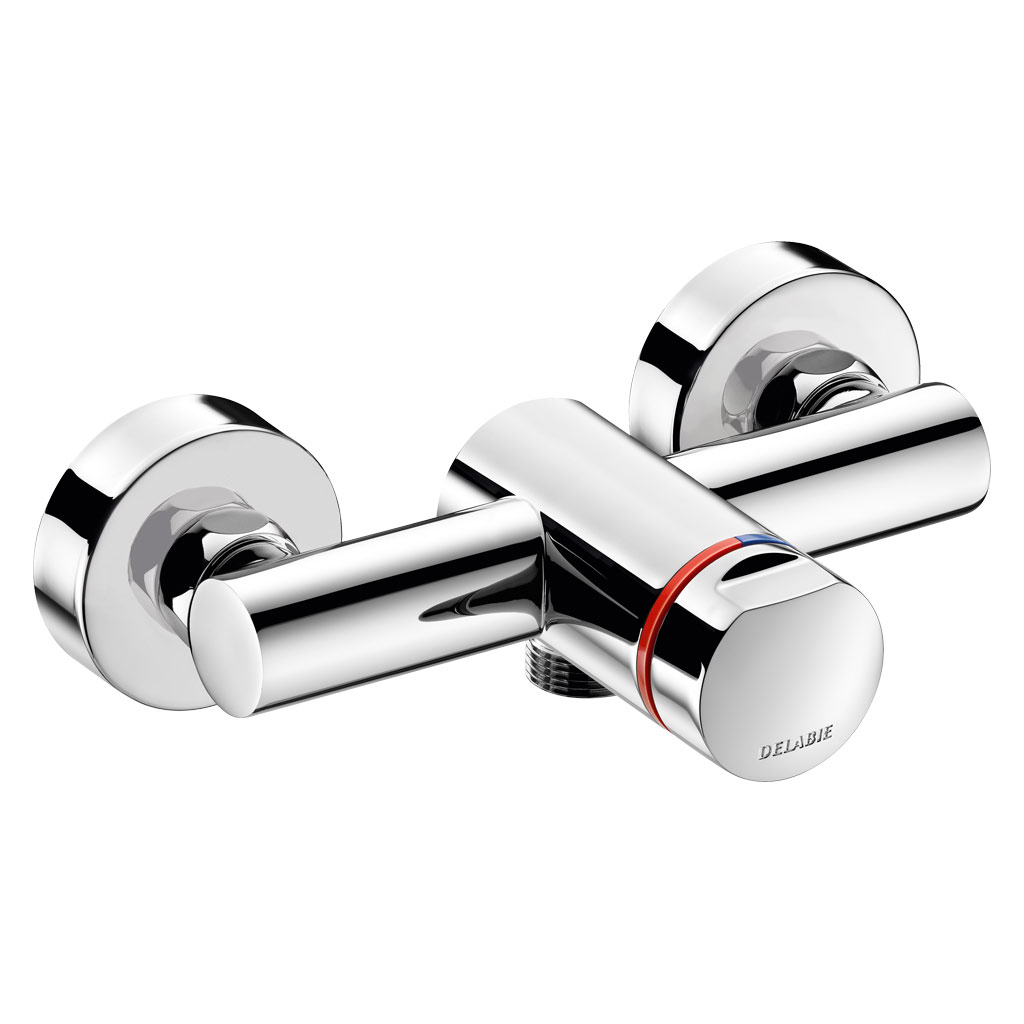

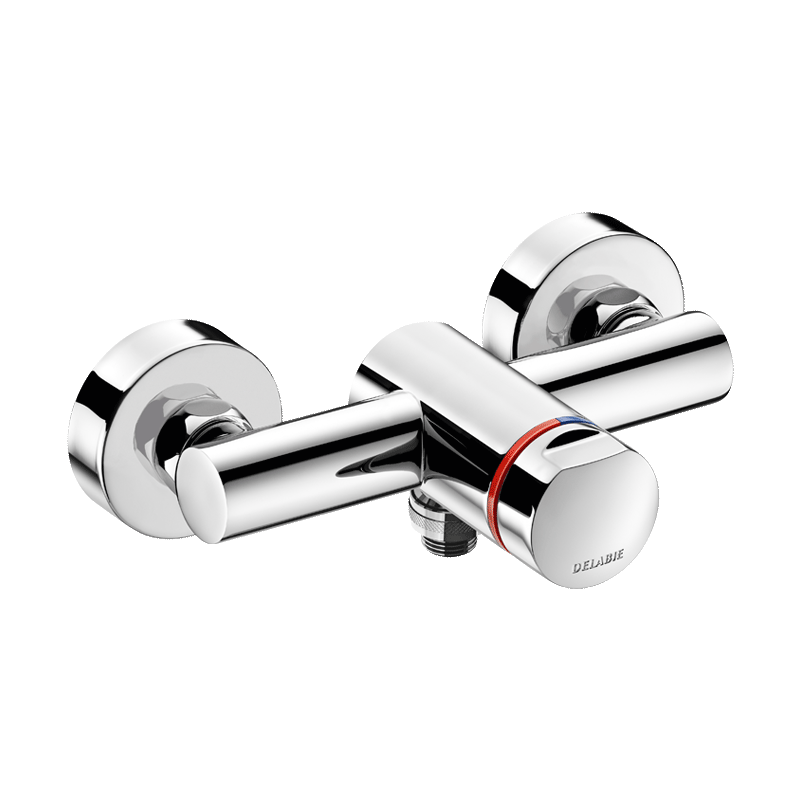

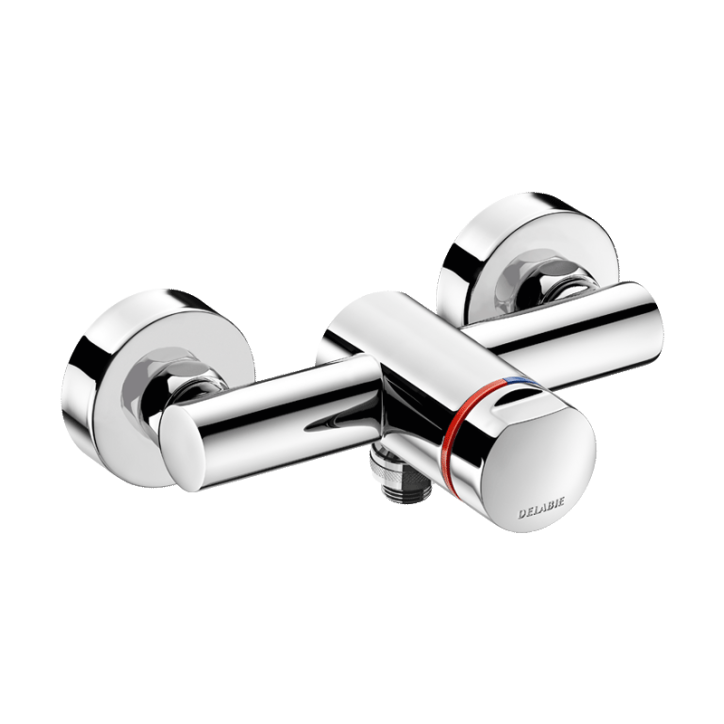

TEMPOMIX 3 time flow shower mixer

Ref. 794470
Exposed time flow shower mixer:
TEMPOMIX 3 single control mixer, bottom outlet, M½" inlet with M¾ connector.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by the installer).
For wall-mounted, exposed installation.
Soft-touch operation.
Time flow pre-set at ~30 seconds.
Flow rate 6 lpm at 3 bar, can be adjusted from 6 lpm - 12 lpm.
Chrome-plated solid brass.
Integrated filters and non-return valves.
Chrome-plated metal push-button.
M½" offset connectors for 130 - 170mm centres.
Suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Confort - Ergonomie - Déclenchement souple

Soft-touch operation

Endurance - Fiabilité

Time flow system tested to over 500,000 operations

Characteristics

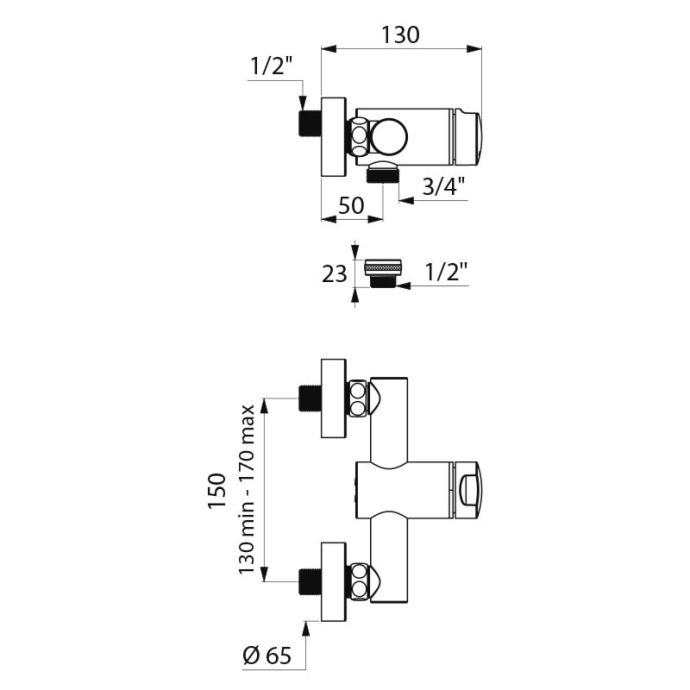

TECHNICAL CHARACTERISTICS

TEMPOMIX 3 time flow shower mixer

Ref. 794470
Connector M½"
Technology Time flow
Width 150mm
Flow rate 9 lpm
Certificates Logo Belgaqua Logo DoP Logo WRAS ACS
Warranty 30-Year

Downloads

DOWNLOADS

TEMPOMIX 3 time flow shower mixer

Ref. 794470

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

794400 Top outlet, inlet M½" and outlet M¾"

VARIANTS

794400 Top outlet, inlet M½" and outlet M¾"
