SECURITHERM shower panel

Ref. 792380
Thermostatic mechanical dual control
SECURITHERM shower panel

Presentation

DESCRIPTION

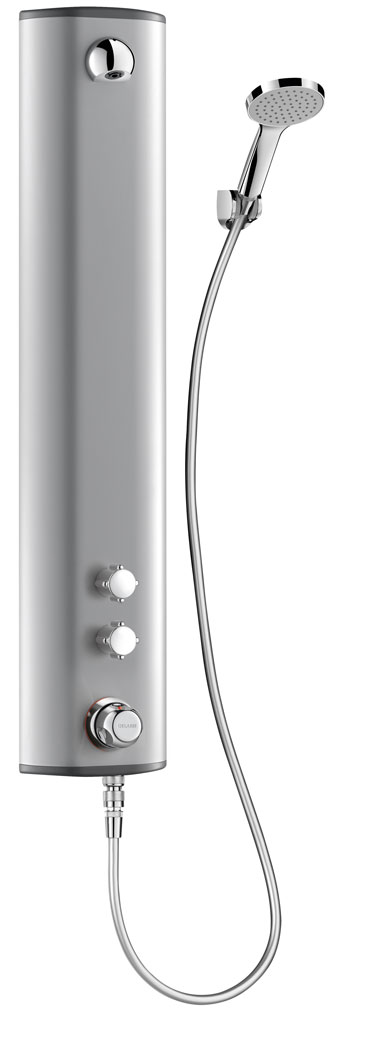

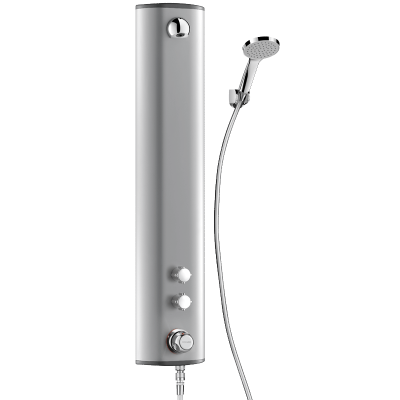

SECURITHERM shower panel

Ref. 792380
Dual control thermostatic shower panel:
Anodised aluminium shower panel for wall-mounted, exposed installation.
Concealed inlet via flexibles M½".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Non-time flow 1/4-turn valves to control flow.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation set at 6 lpm at 3 bar.
Handset with removable flexible via push-fit rapid STOP connector and wall support supplied.
Concealed fixings.
Filters and non-return valves.
Suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Confort - Ergonomie - Déclenchement souple

Themostatic control

Sécurité anti-brûlure

Instant shut-off if cold water fails

Confort - Ergonomie - Déclenchement souple

Fixed shower head or handset

Anti-vandalisme

Aluminium panel, brass controls

Characteristics

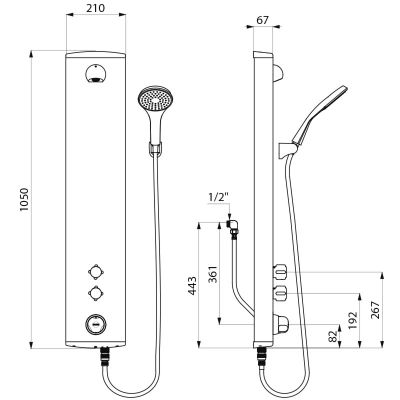

TECHNICAL CHARACTERISTICS

SECURITHERM shower panel

Ref. 792380
Connector M½"
Technology Non-time flow
Height 1050mm
Depth 67mm
Width 210mm
Flow rate 6 lpm
Temperature limiter Thermostatic
Finish Aluminium
Certificates ACS Logo PZH Logo DoP
Warranty 30-Year

Downloads

DOWNLOADS

Colonne de douche bicommande SECURITHERM

Ref. 792380

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

792390 M1/2" top inlet + inline stopcocks
79239015 Top Ø 15mm compression fittings with inline stopcocks

VARIANTS

792390 M1/2" top inlet + inline stopcocks
79239015 Top Ø 15mm compression fittings with inline stopcocks
