SECURITHERM dual control shower panel

Ref. 792344
Thermostatic and mechanical dual control
SECURITHERM dual control shower panel

Presentation

DESCRIPTION

SECURITHERM dual control shower panel

Ref. 792344

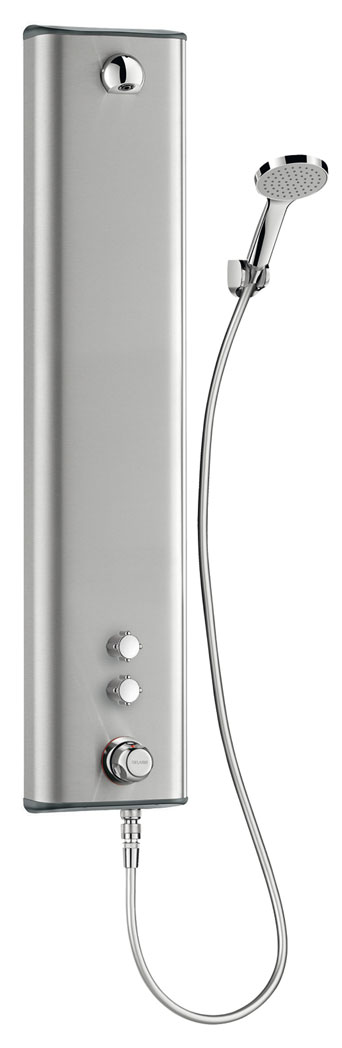

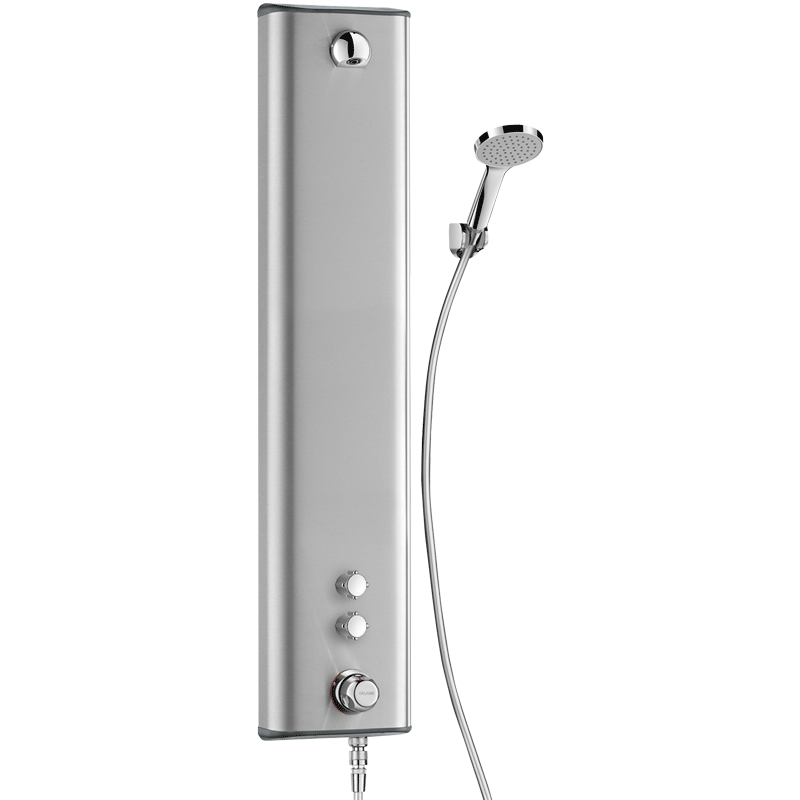

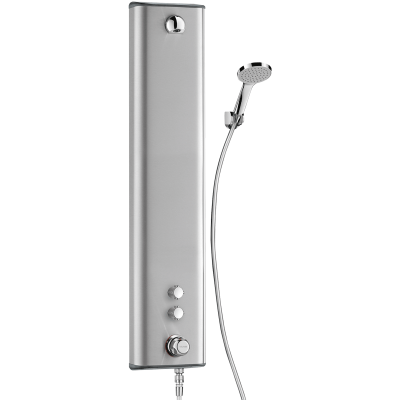

Dual control thermostatic shower panel with handset:
Large model satin stainless steel shower panel for wall-mounted, exposed installation.
Top inlet via in-line stopcocks M½".
SECURITHERM thermostatic shower mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Chrome-plated, tamperproof, scale-resistant, fixed, ROUND shower head with automatic flow rate regulation set at 6 lpm at 3 bar.
Handset with removable flexible via rapid push-fit STOP connector, wall support supplied.
Non-time flow valves control fixed ROUND shower head and handset with flexible.
Thermal shocks are possible.
Concealed fixings.
Filters and non-return valves.
Shower panel suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Confort - Ergonomie - Déclenchement souple

Thermostatic temperature regulation

Sécurité anti-brûlure

Instant shut-off if cold water fails

Confort - Ergonomie - Déclenchement souple

Fixed shower head or handset

Anti-vandalisme

Aluminium panel, brass controls

Characteristics

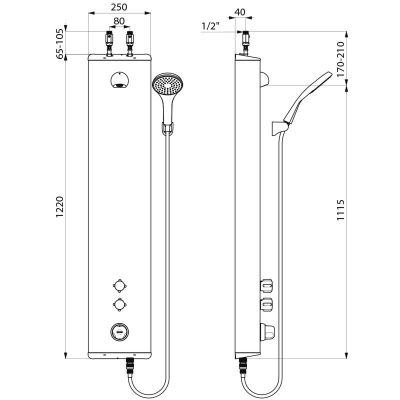

TECHNICAL CHARACTERISTICS

SECURITHERM dual control shower panel

Ref. 792344
Connector M½"
Technology Non-time flow
Height 1,220mm
Depth 100mm
Width 250mm
Flow rate 6 lpm
Temperature limiter Thermostatic
Finish Stainless steel
Certificates ACS Logo PZH Logo DoP
Warranty 30-Year

Downloads

DOWNLOADS

Colonne de douche bicommande SECURITHERM

Ref. 792344

To download one or several documents linked to this product, please select the type of file you require :
