SECURITHERM shower panel

Ref. 792320
Thermostatic time flow dual control
SECURITHERM shower panel

Presentation

DESCRIPTION

SECURITHERM shower panel

Ref. 792320

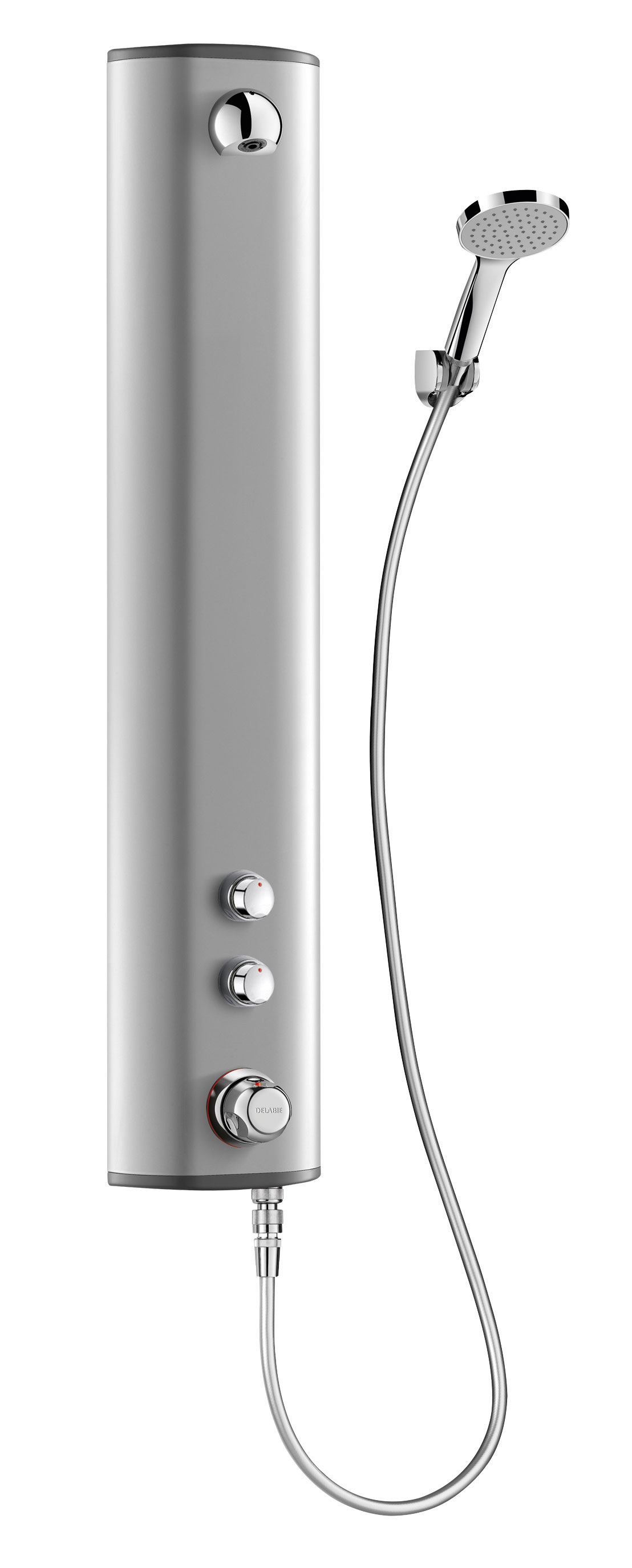

SECURITHERM dual control thermostatic time flow shower panel:
Anodised aluminium shower panel for wall-mounted, exposed installation.
With top inlet via in-line stopcocks, M½".
SECURITHERM thermostatic shower mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Soft-touch operation.
Chrome-plated, tamperproof, scale-resistant, fixed, ROUND shower head with automatic flow rate regulation at 6 lpm at 3 bar.
Handset with removable flexible via push-fit rapid STOP connector and wall support supplied.
2x ~30-second time flow valves to control ROUND shower head and handset on flexible hose.
Concealed fixings.
Filters and non-return valves.
Shower panel suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Confort - Ergonomie - Déclenchement souple

Thermostatic temperature regulation

Sécurité anti-brûlure

Immediate shut-off if cold water fails

Economie d'eau

80% water savings

Anti-vandalisme

Aluminium body, brass controls

Characteristics

TECHNICAL CHARACTERISTICS

SECURITHERM shower panel

Ref. 792320
Connector M1/2"
Technology Time flow
Height 1050mm
Depth 65mm
Width 210mm
Flow rate 6 lpm
Temperature limiter thermostatic
Finish Aluminium
Certificates ACS Logo DoP Logo PZH
Warranty 30-Year

Downloads

DOWNLOADS

SECURITHERM shower panel

Ref. 792320

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

792330 Concealed inlet via M½" flexibles

VARIANTS

792330 Concealed inlet via M½" flexibles
