SECURITHERM time flow shower panel

Ref. 792313
Time flow thermostatic
SECURITHERM time flow shower panel

Presentation

DESCRIPTION

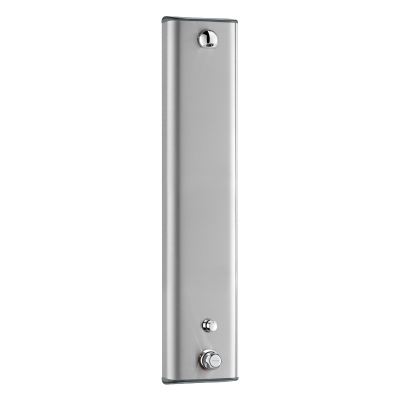

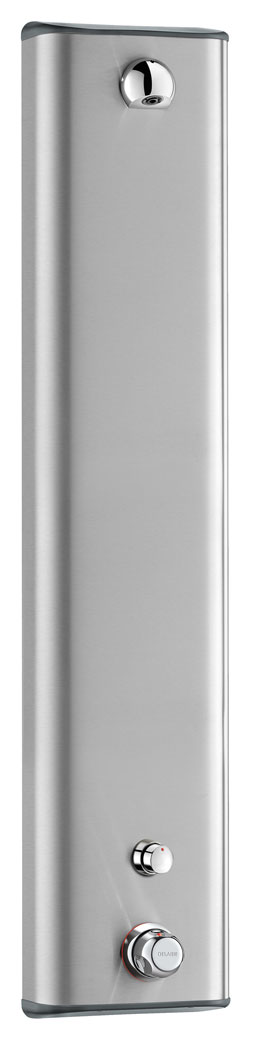

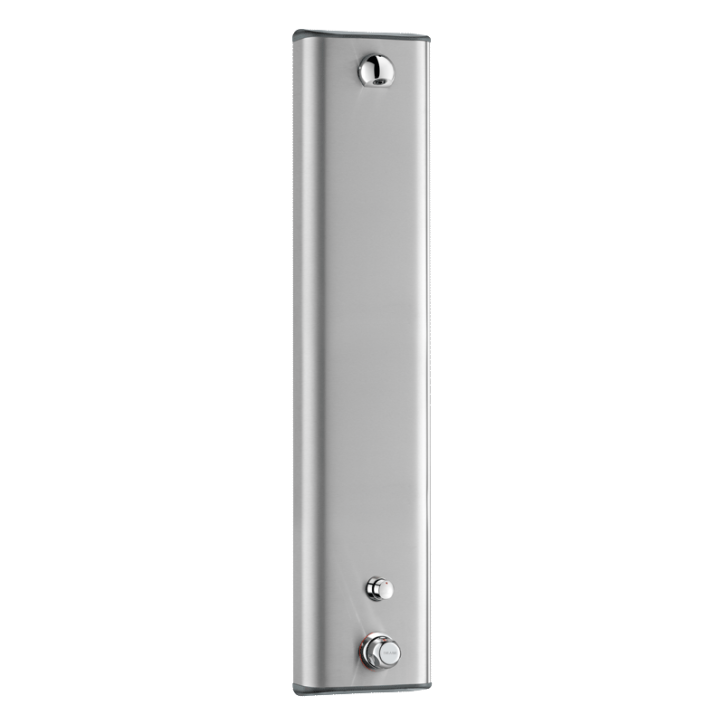

SECURITHERM time flow shower panel

Ref. 792313
Thermostatic time flow shower panel:
Large model satin stainless steel shower panel for wall-mounted, exposed installation.
Concealed inlet via flexibles M½".
SECURITHERM thermostatic shower mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Soft-touch operation.
Chrome-plated, tamperproof, scale-resistant, fixed, ROUND shower head with automatic flow rate regulation.
Time flow ~30 seconds.
Flow rate 6 lpm at 3 bar.
M½" stopcocks.
Concealed fixings.
Filters and non-return valves.
Shower panel suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Confort - Ergonomie - Déclenchement souple

Thermostatic control

Sécurité anti-brûlure

Instant shut-off if cold water fails

Economie d'eau

80% water savings

Anti-vandalisme

Aluminium panel, brass controls

Characteristics

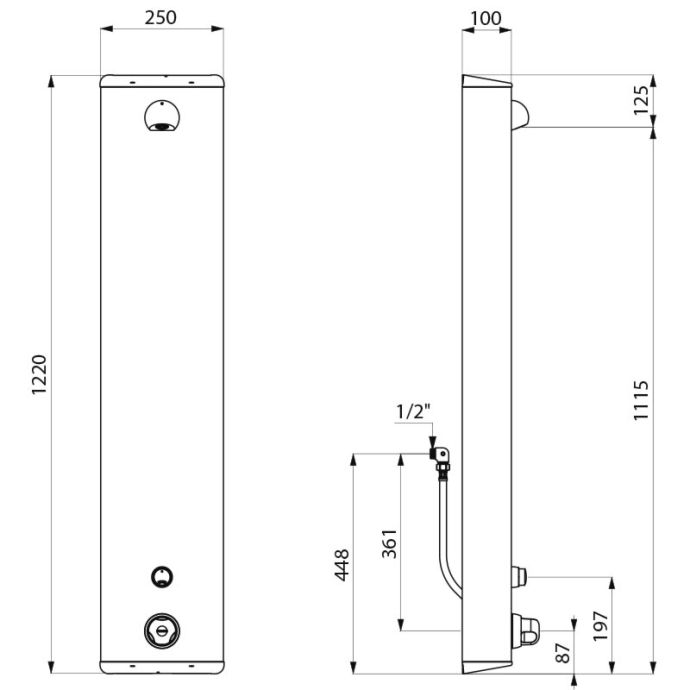

TECHNICAL CHARACTERISTICS

SECURITHERM time flow shower panel

Ref. 792313
Connector M½"
Technology Time flow
Height 1,220mm
Depth 100mm
Width 250mm
Flow rate 6 lpm
Temperature limiter Thermostatic
Finish Stainless steel
Certificates ACS Logo DoP Logo PZH
Warranty 30-Year

Downloads

DOWNLOADS

Colonne de douche temporisée SECURITHERM

Ref. 792313

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

792303 M1/2" top inlet + inline stopcocks, without soap dish
79230415 Top Ø 15mm compression fittings with inline stopcocks, with soap dish
792304 M1/2" top inlet + inline stopcocks, with soap dish
792314 Concealed inlet via M½" flexibles, with soap dish

VARIANTS

792303 M1/2" top inlet + inline stopcocks, without soap dish
79230415 Top Ø 15mm compression fittings with inline stopcocks, with soap dish
792304 M1/2" top inlet + inline stopcocks, with soap dish
792314 Concealed inlet via M½" flexibles, with soap dish
